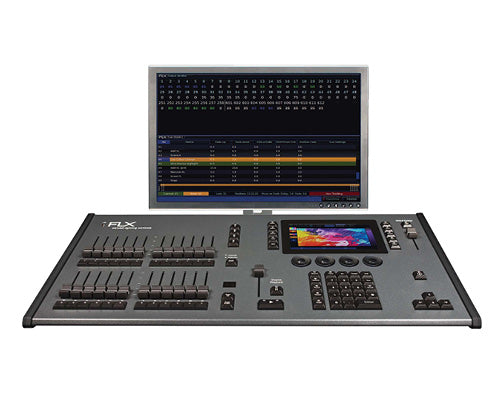

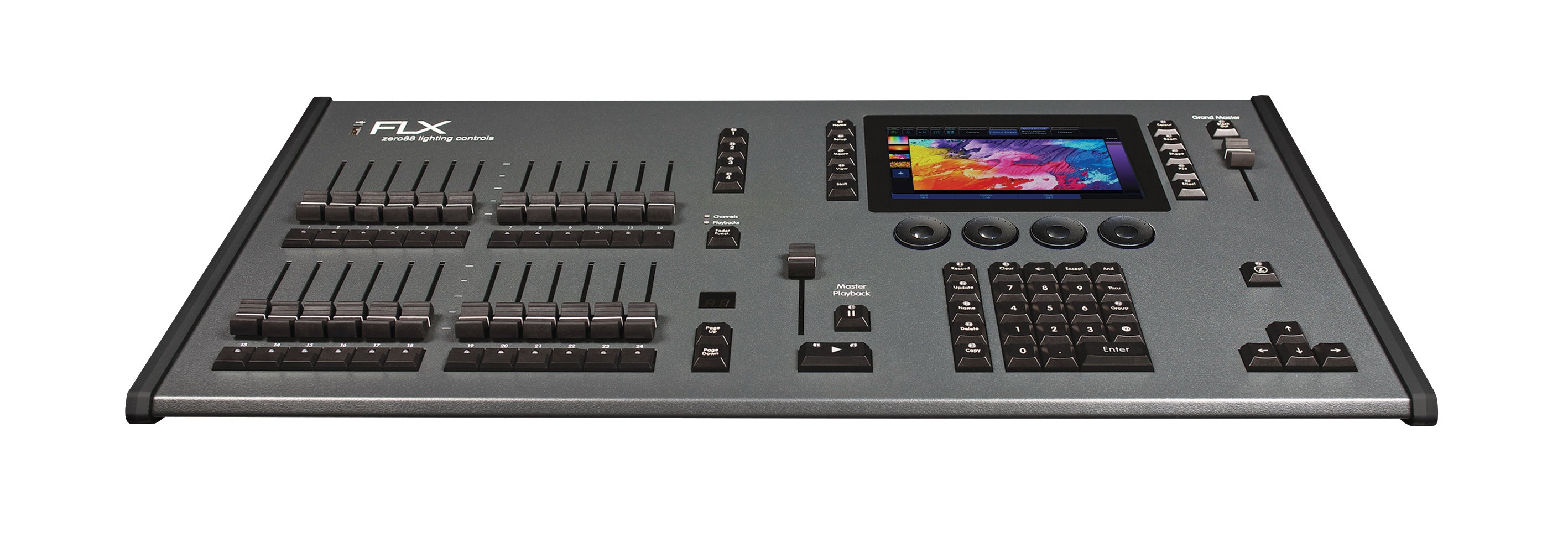

Zero88 FLX
Designed to save you time and maximize your creativity, the FLX lighting console is fully featured, portable and easy to use and runs the intuitive ZerOS software. Whatever your background, FLX will feel instantly recognizable, due to the familiar, industry standard syntax and intuitive fader-perchannel intensity control. Picking exactly the right color is no longer a laborious task! Quickly and accurately create the color you want using either the encoder wheels or the built-in touch screen color picker and quickly record it straight onto any of the 240 instant-access color palettes to recall later. From design to manufacture, FLX has been developed to work in a wide range of demanding situations, with specific considerations for live events & hire, touring productions, concert halls and multipurpose venues, theatres, and educational applications.
Control up to 4096 fixtures • 24 multi-function faders • User Definable Keys (UDKs) • 241 playbacks (each with submaster & full cuestack functionality) • 240 groups, 5 x 240 palettes (Color, Beam, Shape, Position, Effect) • Full control of multicell fixtures
Zero88 FLX
Product Specifications
- Electrical Specifications ›
- Data Connections ›
- Supported Protocols ›
- Certification and Safety ›
- Capacity ›
- Software Features ›
- User Interfaces ›
- Physical Specifications ›
Electrical Specifications
| Operating Voltage | 100–240 VAC |
| Max Power Consumption | 97 W |
| Power Input | 1x Neutrik PowerCon TRUE1 |
Data Connections
| Included License | 8x Universes (4096 channels) |
| DMX Out/DMX In/Vision.Net | 2x Neutrik 5-pin female XLR |
| Ethernet | 1 x RJ45 Neutrik etherCON |
| Audio | 1x 6.35mm (1/4") input |
| USB | 5 x USB Type A |
| Display Outputs | 1 x DVI-D |
| Contact Closure | 8 via D-Sub connector |
| MIDI | 2x MIDI 5-pin DIN |
Supported Protocols
| Protocols | DMX512, RDM, Streaming ACN (E1.31), Art-Net 4, CITP, OSC (Open Sound Control), Vision.Net (Receive only), KiNet, Philips Hue, Midi Notes, MTC (Midi Time Code), MSC (Midi Show Control), Contact Closures |
| File Formats | USITT ASCII Showfiles, GDTF |
| Additional | iOS & Android apps |
Certification and Safety
| Approbations | UL, cUL, CE, RCM, UKCA |
| Conformity | EN 62368-1, UL 62368-1, CSA C22.2 No 62368-1, BS EN 62368-1 |
Capacity
| Fixtures | 4096 |
| Cues | 10,000 |
| Playbacks | 241 |
| Palettes | 1200 (Position, Color, Beam, Shape and Effect) |
| Groups | 240 |
| User Macros | 240 |
Software Features
| Operating System | ZerOS |
| Key Features | Full tracking and optional non tracking, Familiar Command Line interface, Multi-touch color & image picker, Filter lookups (Lee, Rosco, Gam, Apollo), Mood Boards by LEE Filters, Multi touch Pan/Tilt grid, Auto palettes, groups and fixture macros, Gobo previews and library, Move on dark, Multicell fixture support, Visualization support, Wireless remote control and remote monitor apps, Tracking Backup functionality, RigSync (RDM), Sound to Light chases, Offline editor (Windows PC) |
User Interfaces
| Built-in Touchscreens | 1x 7" multi-touch |
| External Touchscreens | 1 x DVI-D |
| Faders | 24 x Multifunctional Faders, 1 x Master Playback, 1 x Grandmaster |
| Syntax Keys | 73 keys with familiar layout |
| Encoders | 4x Attribute & Intensity |
Physical Specifications
| Color | Dark Grey |
| Operating Temperature | 5–40°C (41-104°F) |
| Humidity | 5 - 95% non-condensing |
| Construction | Scratch-resistant rugged dual-skin construction |
| Ingress Protection Rating | IP20 |
| Cooling System | Convection |
| Dimensions | 90 x 659 x 342 mm (3.5 x 25.9 x 13.5 in) |
| Weight | 7.5 kg (16.5 lb) |
| Operating Voltage | 100–240 VAC |
| Max Power Consumption | 97 W |
| Power Input | 1x Neutrik PowerCon TRUE1 |
| Included License | 8x Universes (4096 channels) |
| DMX Out/DMX In/Vision.Net | 2x Neutrik 5-pin female XLR |
| Ethernet | 1 x RJ45 Neutrik etherCON |
| Audio | 1x 6.35mm (1/4") input |
| USB | 5 x USB Type A |
| Display Outputs | 1 x DVI-D |
| Contact Closure | 8 via D-Sub connector |
| MIDI | 2x MIDI 5-pin DIN |
| Protocols | DMX512, RDM, Streaming ACN (E1.31), Art-Net 4, CITP, OSC (Open Sound Control), Vision.Net (Receive only), KiNet, Philips Hue, Midi Notes, MTC (Midi Time Code), MSC (Midi Show Control), Contact Closures |
| File Formats | USITT ASCII Showfiles, GDTF |
| Additional | iOS & Android apps |
| Approbations | UL, cUL, CE, RCM, UKCA |
| Conformity | EN 62368-1, UL 62368-1, CSA C22.2 No 62368-1, BS EN 62368-1 |
| Fixtures | 4096 |
| Cues | 10,000 |
| Playbacks | 241 |
| Palettes | 1200 (Position, Color, Beam, Shape and Effect) |
| Groups | 240 |
| User Macros | 240 |
| Operating System | ZerOS |
| Key Features | Full tracking and optional non tracking, Familiar Command Line interface, Multi-touch color & image picker, Filter lookups (Lee, Rosco, Gam, Apollo), Mood Boards by LEE Filters, Multi touch Pan/Tilt grid, Auto palettes, groups and fixture macros, Gobo previews and library, Move on dark, Multicell fixture support, Visualization support, Wireless remote control and remote monitor apps, Tracking Backup functionality, RigSync (RDM), Sound to Light chases, Offline editor (Windows PC) |
| Built-in Touchscreens | 1x 7" multi-touch |
| External Touchscreens | 1 x DVI-D |
| Faders | 24 x Multifunctional Faders, 1 x Master Playback, 1 x Grandmaster |
| Syntax Keys | 73 keys with familiar layout |
| Encoders | 4x Attribute & Intensity |
| Color | Dark Grey |
| Operating Temperature | 5–40°C (41-104°F) |
| Humidity | 5 - 95% non-condensing |
| Construction | Scratch-resistant rugged dual-skin construction |
| Ingress Protection Rating | IP20 |
| Cooling System | Convection |
| Dimensions | 90 x 659 x 342 mm (3.5 x 25.9 x 13.5 in) |
| Weight | 7.5 kg (16.5 lb) |
