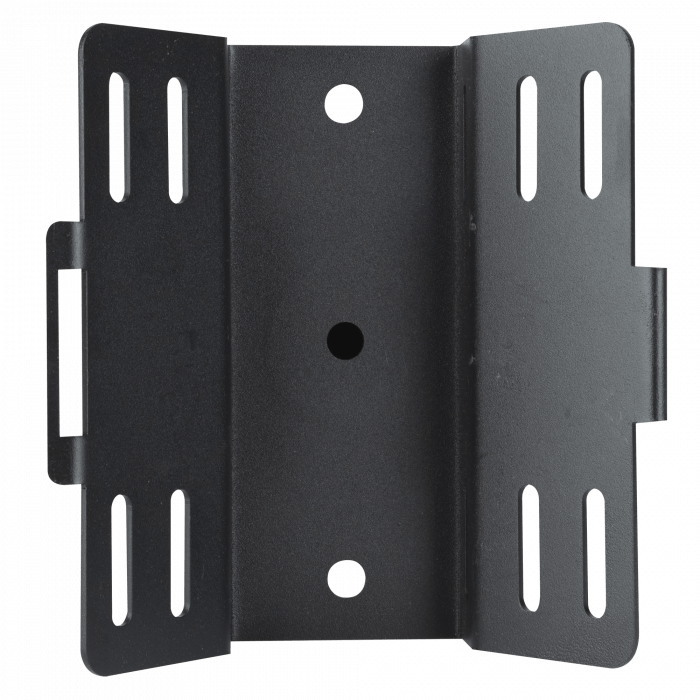

Showgear Tree & Pole Mounting Bracket MKII

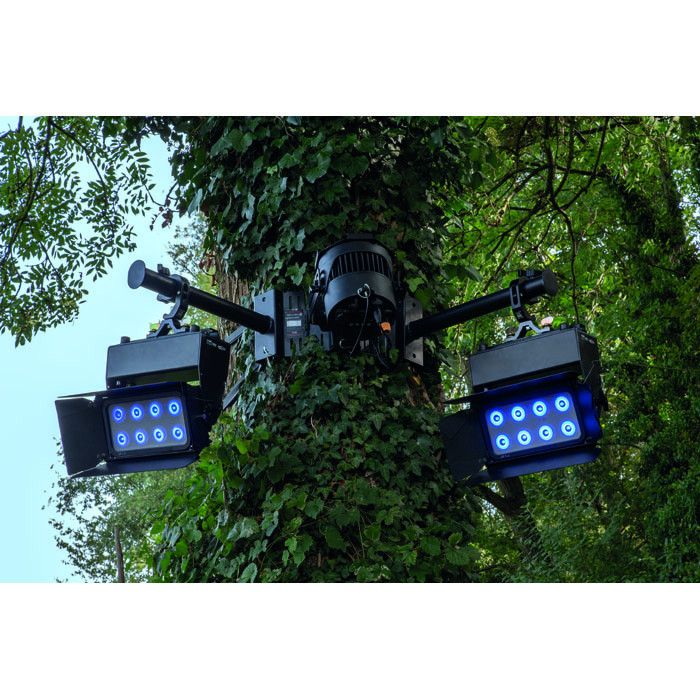

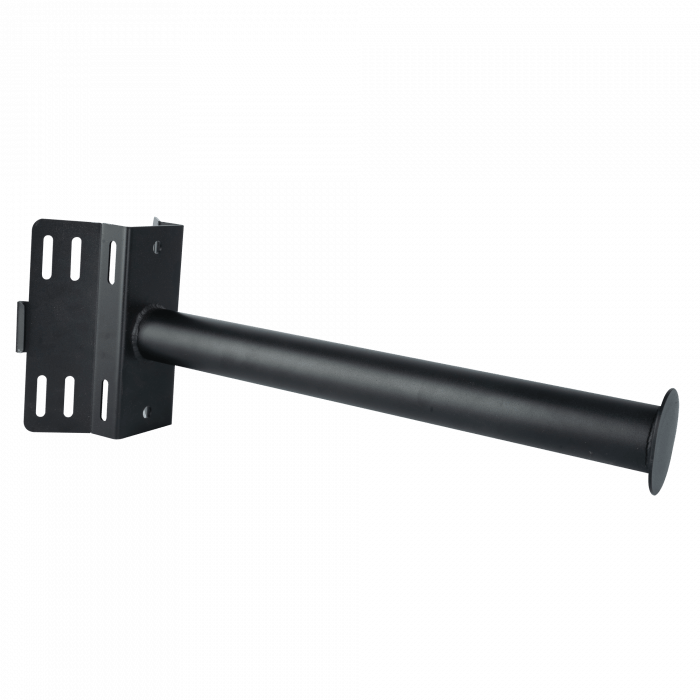

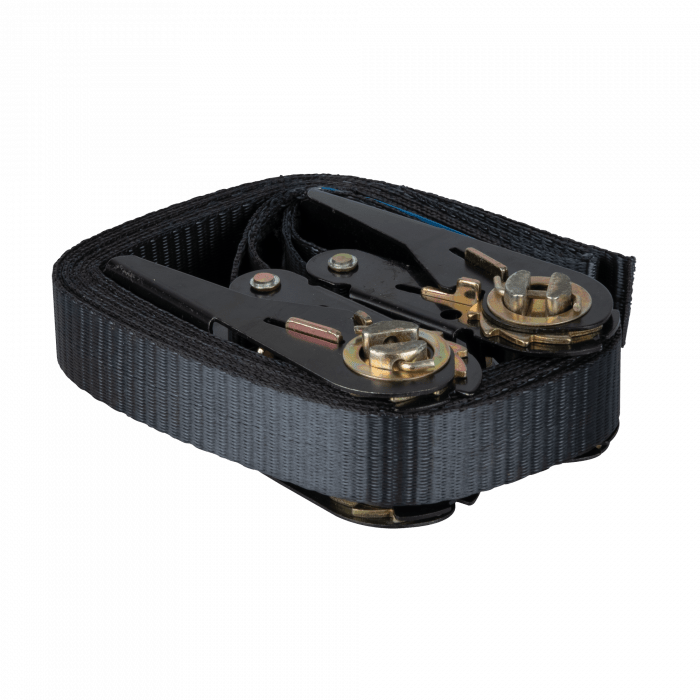

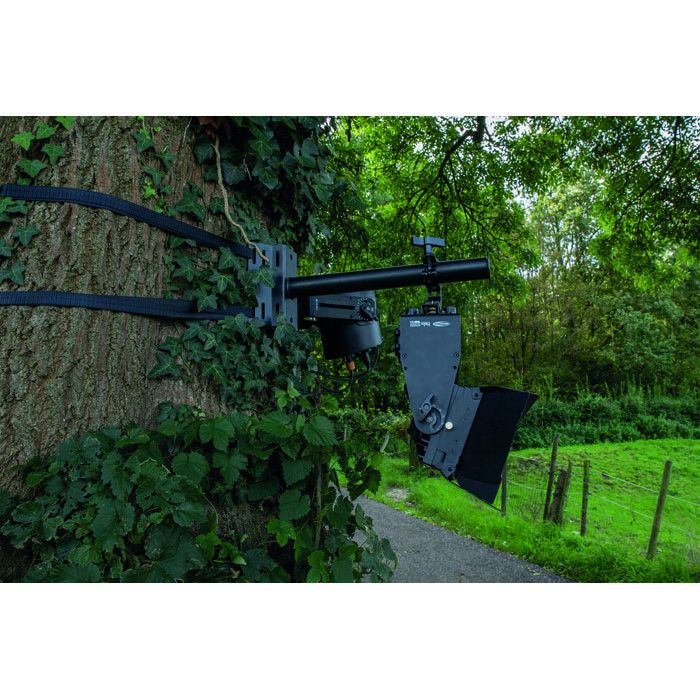

The Showgear Tree/Pole Mounting Bracket MKII allows you to easily mount lighting fixtures against a pole or tree. This is possible with the help of two supplied 2-meter endless ratchet straps. The bracket has a 47.5 cm long steel tube on which objects weighing up to 50 kg can be mounted by using 48–50 mm clamps. Hooks on the side of the bracket make it possible to attach brackets to each other.
Please note that the working load limit depends on the mounting. ALWAYS check whether the object to which you attach the bracket is suitable. ALWAYS use safety cables when mounting at height, both for the bracket itself and for the fixture to be hung.
Product Specifications
Mechanical Specifications
| WLL (kg) | 50 kg (110.231 lb) |
| Material | Steel |
| Finish | Powder Coating |
| Colour | Black |
| Length (mm) | 559 mm (22.008″) |
| Height (mm) | 200 mm (7.874″) |
| Width (mm) | 188 mm (7.402″) |
| Diameter | 50 mm (1.969″) |
| Weight | 2.9 kg (6.393 lb) |
| Lashing | Yes |
| Lashing Type | Endless ratchet strap |
| Lashing Capacity (LC) | 800 daN |
| Standard Hand Force | 50 daN |
| Standard Tension Force (STF) | 80 daN |
| Webbing Material | Polyester (PES) |
| Endless Ratchet Strap Length | 2 M |
| Max. Elongation | 7% |
