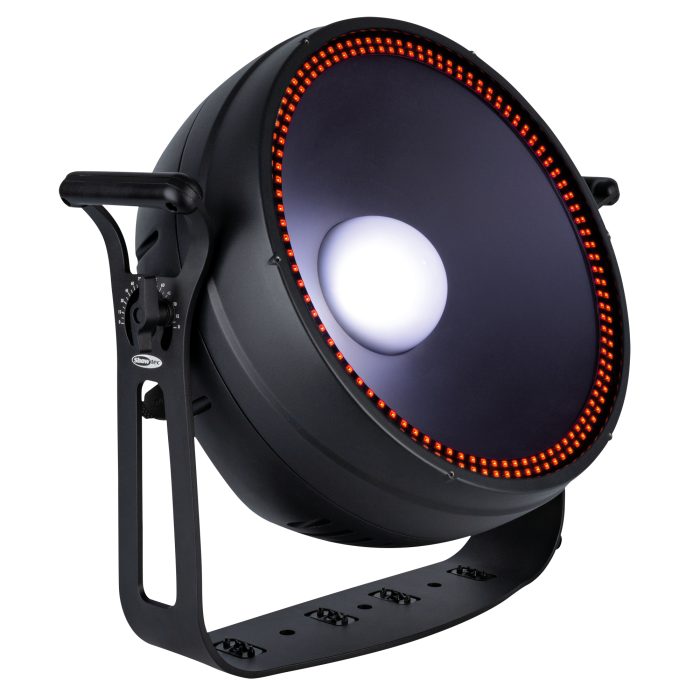

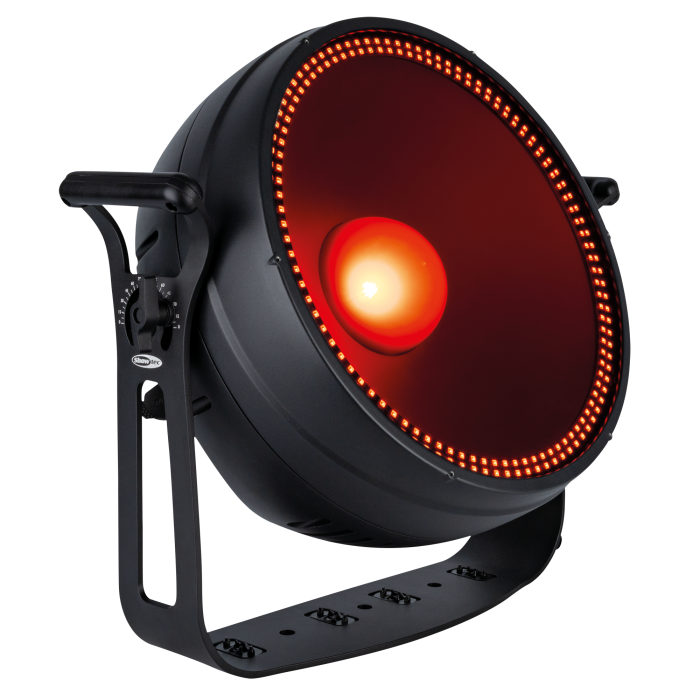

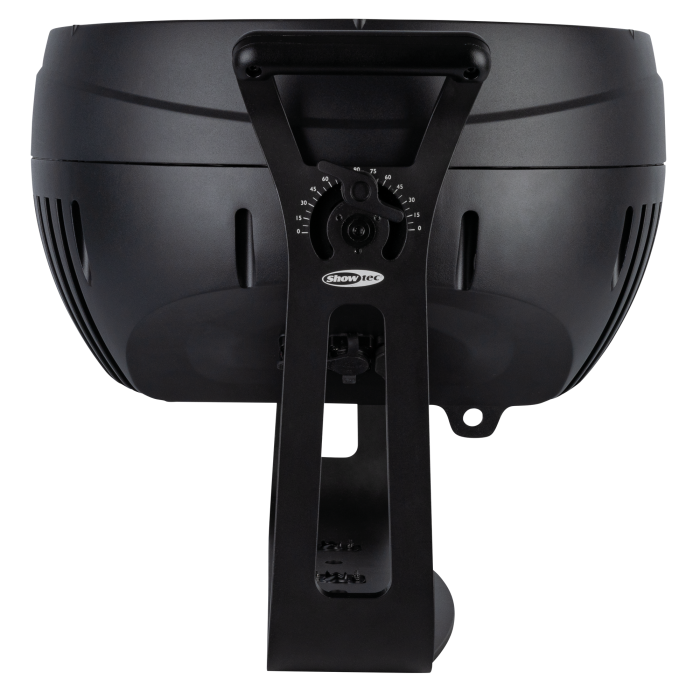

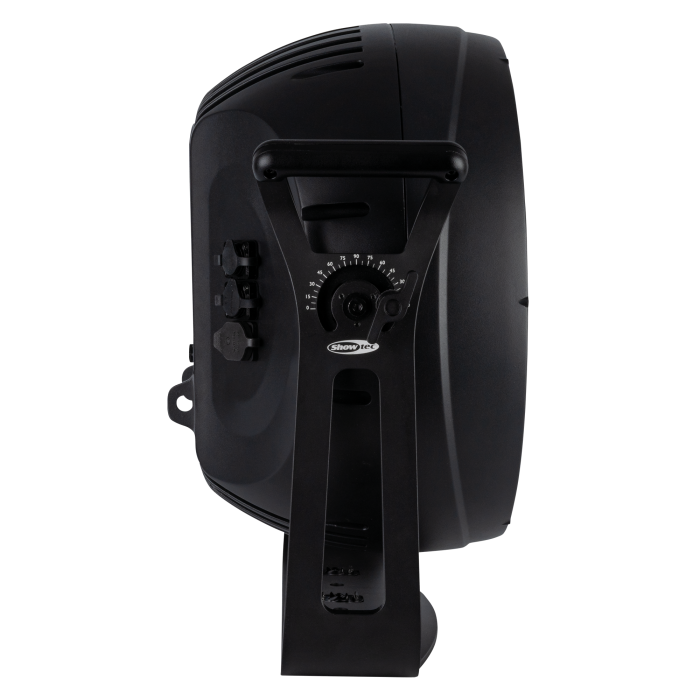

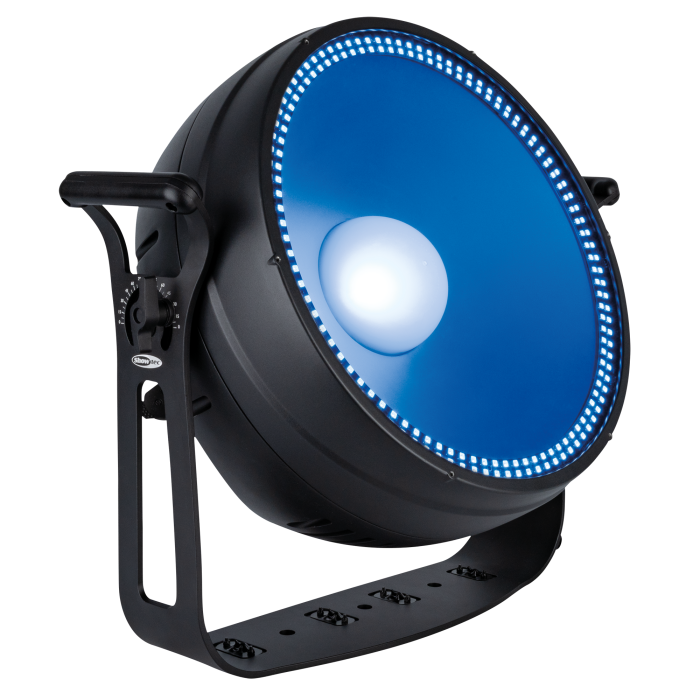

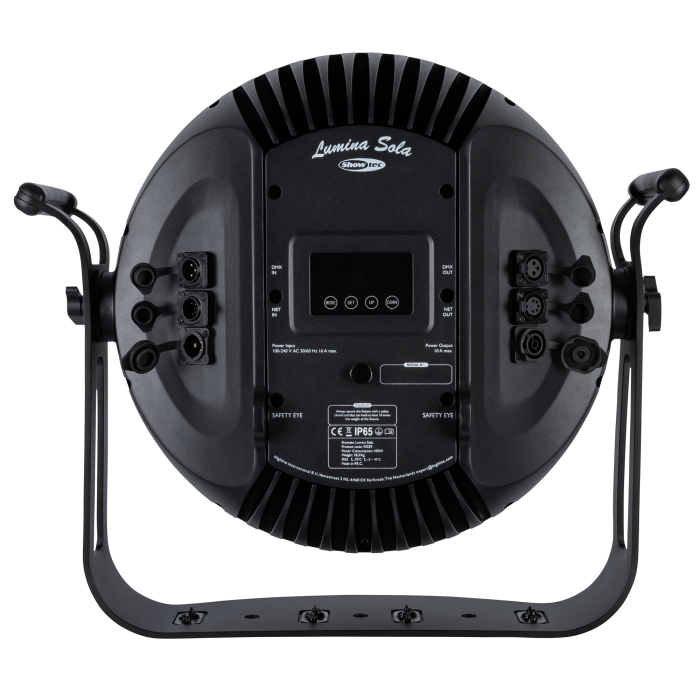

Showtec Lumina Sola
The Showtec Lumina Sola is a high-performance outdoor LED blinder designed for large-scale events and demanding applications. At its core, a 500 W RGBAL LED engine delivers an impressive output of over 12,000 lumens with a CRI above 91, ensuring vibrant colours and natural whites. The amber LED section enables a realistic tungsten dimming effect for authentic warm fades. The Lumina Sola features a dedicated studio mode offering a CCT range from 1800K to 7000K and a Tint channel for green/magenta adjustment, making it ideal for TV and film environments.
Surrounding the centre LED is a ring of 192 RGB LEDs (1.5 W each), divided into 8 controllable sections for beautiful visual effects and creative accents. With a wide beam angle of over 80°, the Lumina Sola provides smooth coverage for stages and outdoor installations. Its IP65-rated housing guarantees reliable performance in all weather conditions, while convection cooling combined with an axial fan (with adjustable modes) ensures silent and efficient operation.
Control is flexible and professional: DMX/RDM, Auto, Manual, and Master/Slave modes are supported, with up to 50 DMX channels for advanced programming. Thanks to RDM, you can remotely change the DMX address and switch DMX modes without physical access. The Lumina Sola also features 4 selectable dimming curves for precise intensity control, Power Pro True connectors, and 3 and 5-pin DMX connections for secure and robust setups. High-frequency PWM (1–25 kHz) ensures flicker-free performance for broadcast and camera applications.
A range of optional accessories is available to soften the LED appearance, modify the beam look, or create distinctive patterns for a vintage or Goliath-style appearance.
- 500 W RGBAL LED + 192 RGB LEDs for wash and effects
- Over 12,000 lumens output
- IP65-rated for outdoor use
- Wide 80° beam angle
- CRI > 91 for superior colour quality
Showtec Lumina Sola
Product Specifications
- Light Source ›
- Performance ›
- Optical ›
- Control and Programming ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Included Items ›
Light Source
| Type | LED |
| Quantity | 192 |
| Power | 500 W |
| Colour Type | RGBAL |
| Life Expectancy | 20000 h |
Performance
| Refresh Rate | 1000 Hz |
| Refresh Rate (Max.) | 25 kHz |
| Luminous Flux (Total) | 12668 lm |
| Luminous Flux (Red) | 1775 lm |
| Luminous Flux (Green) | 3511 lm |
| Luminous Flux (Blue) | 825 lm |
| Luminous Flux (Amber) | 3185 lm |
| CRI | 91.5 |
Optical
| Beam Angle (Horizontal) | 81.2 ° |
| Beam Angle (Vertical) | 81.2 ° |
Control and Programming
| Control Mode | Auto, DMX, Manual, RDM |
| DMX Channels | 1, 50 |
| Protocols | DMX, RDM |
| Fan Mode | Yes |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
Electrical Specifications
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 450 W |
| Power Connector In | Power Pro True |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
Mechanical Specifications
| Length | 265 mm (10.433″) |
| Width | 555 mm (21.85″) |
| Height | 481 mm (18.937″) |
| Weight | 18.75 kg (41.337 lb) |
| IP Rating | IP65 |
| Material | Aluminium |
| Housing | Aluminium |
| Colour | Black |
Thermal Specifications
| Cooling | Convection/Axial fan |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Maximum Surface Temperature | 70 °C (158 °F) |
Included Items
| Included Cables | Power Pro True Cable |
| Type | LED |
| Quantity | 192 |
| Power | 500 W |
| Colour Type | RGBAL |
| Life Expectancy | 20000 h |
| Refresh Rate | 1000 Hz |
| Refresh Rate (Max.) | 25 kHz |
| Luminous Flux (Total) | 12668 lm |
| Luminous Flux (Red) | 1775 lm |
| Luminous Flux (Green) | 3511 lm |
| Luminous Flux (Blue) | 825 lm |
| Luminous Flux (Amber) | 3185 lm |
| CRI | 91.5 |
| Beam Angle (Horizontal) | 81.2 ° |
| Beam Angle (Vertical) | 81.2 ° |
| Control Mode | Auto, DMX, Manual, RDM |
| DMX Channels | 1, 50 |
| Protocols | DMX, RDM |
| Fan Mode | Yes |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 450 W |
| Power Connector In | Power Pro True |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Length | 265 mm (10.433″) |
| Width | 555 mm (21.85″) |
| Height | 481 mm (18.937″) |
| Weight | 18.75 kg (41.337 lb) |
| IP Rating | IP65 |
| Material | Aluminium |
| Housing | Aluminium |
| Colour | Black |
| Cooling | Convection/Axial fan |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Maximum Surface Temperature | 70 °C (158 °F) |
| Included Cables | Power Pro True Cable |
