Showtec Goliath

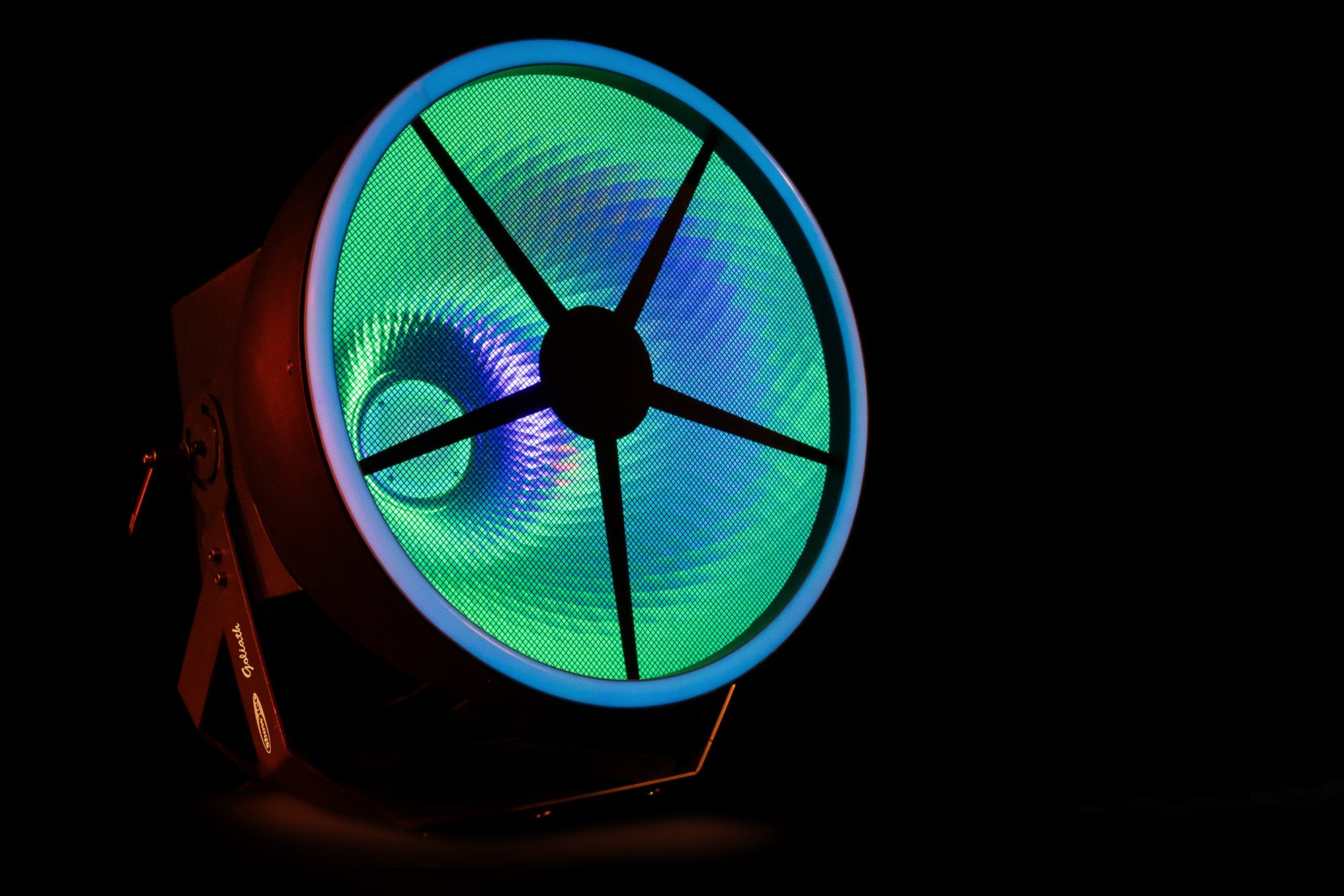

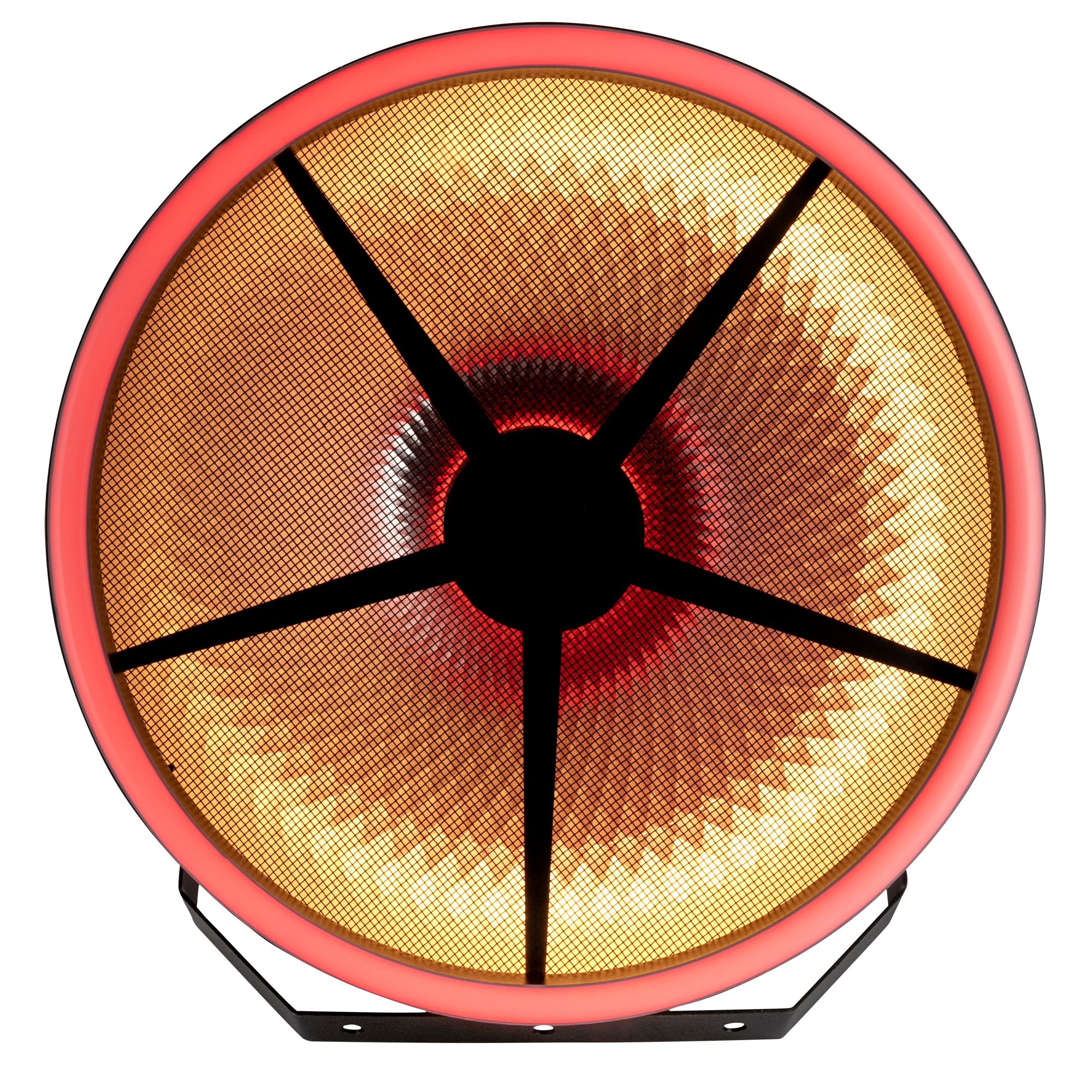

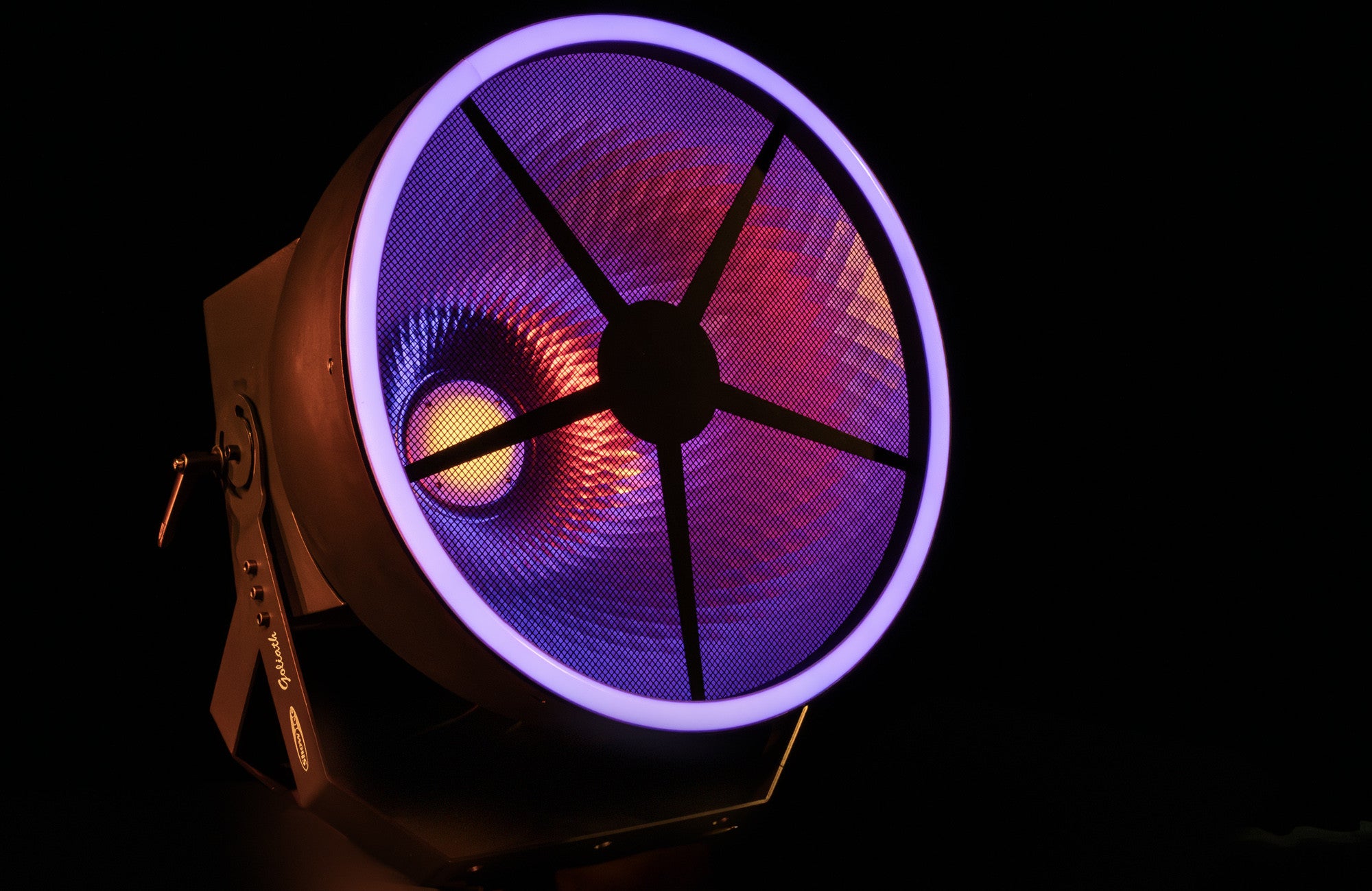

The Showtec Goliath is a retro light effect that combines a powerful 300 W warm white LED with built-in 20 W amber LED, along with a dual RGB LED ring and central RGB LEDs. The 20 W amber and 300 W warm white LED replicate the classic tungsten dimming effect, delivering a nostalgic retro feel. Depending on the selected mode, the warm white and amber LEDs can be controlled separately or as a single ‘tungsten channel’.

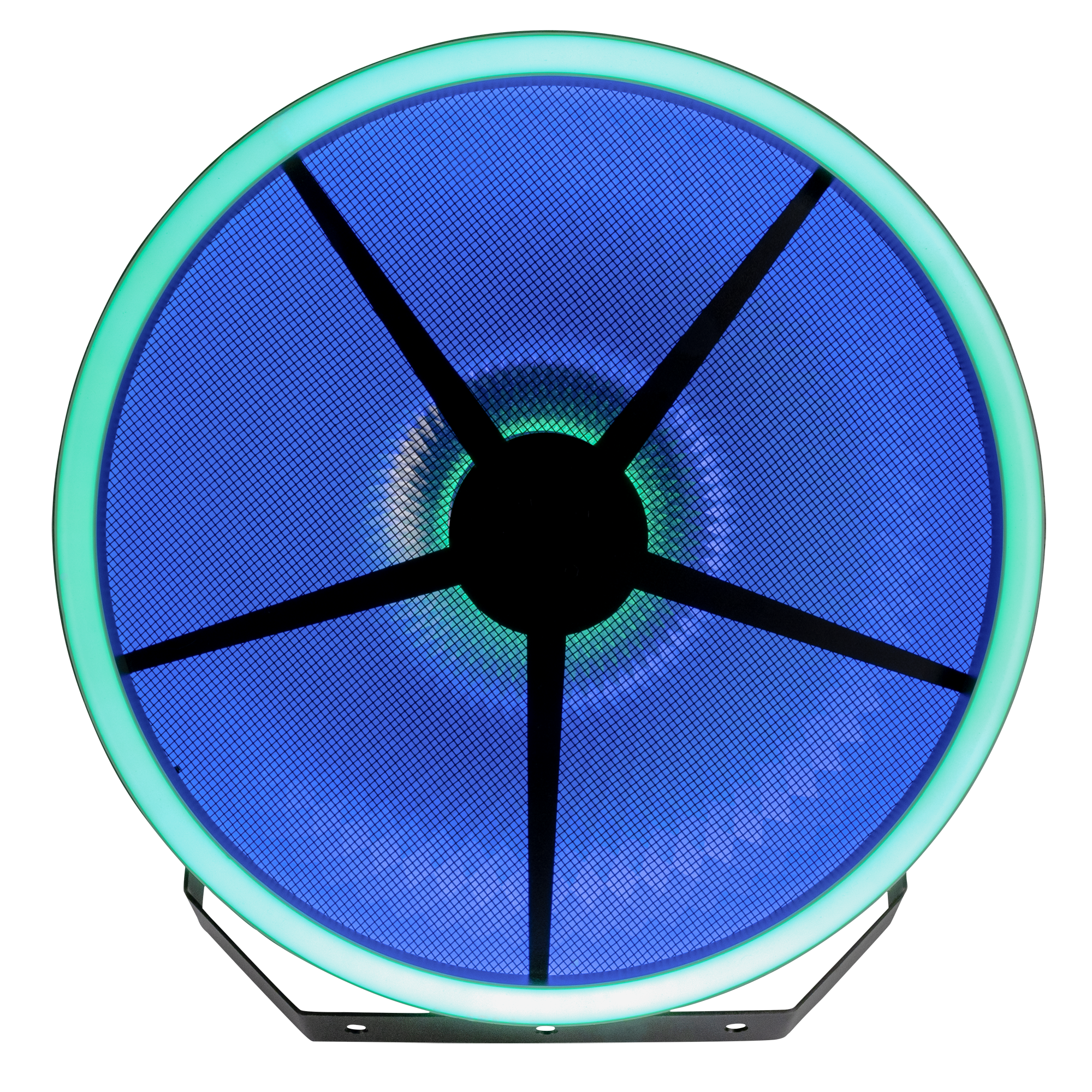

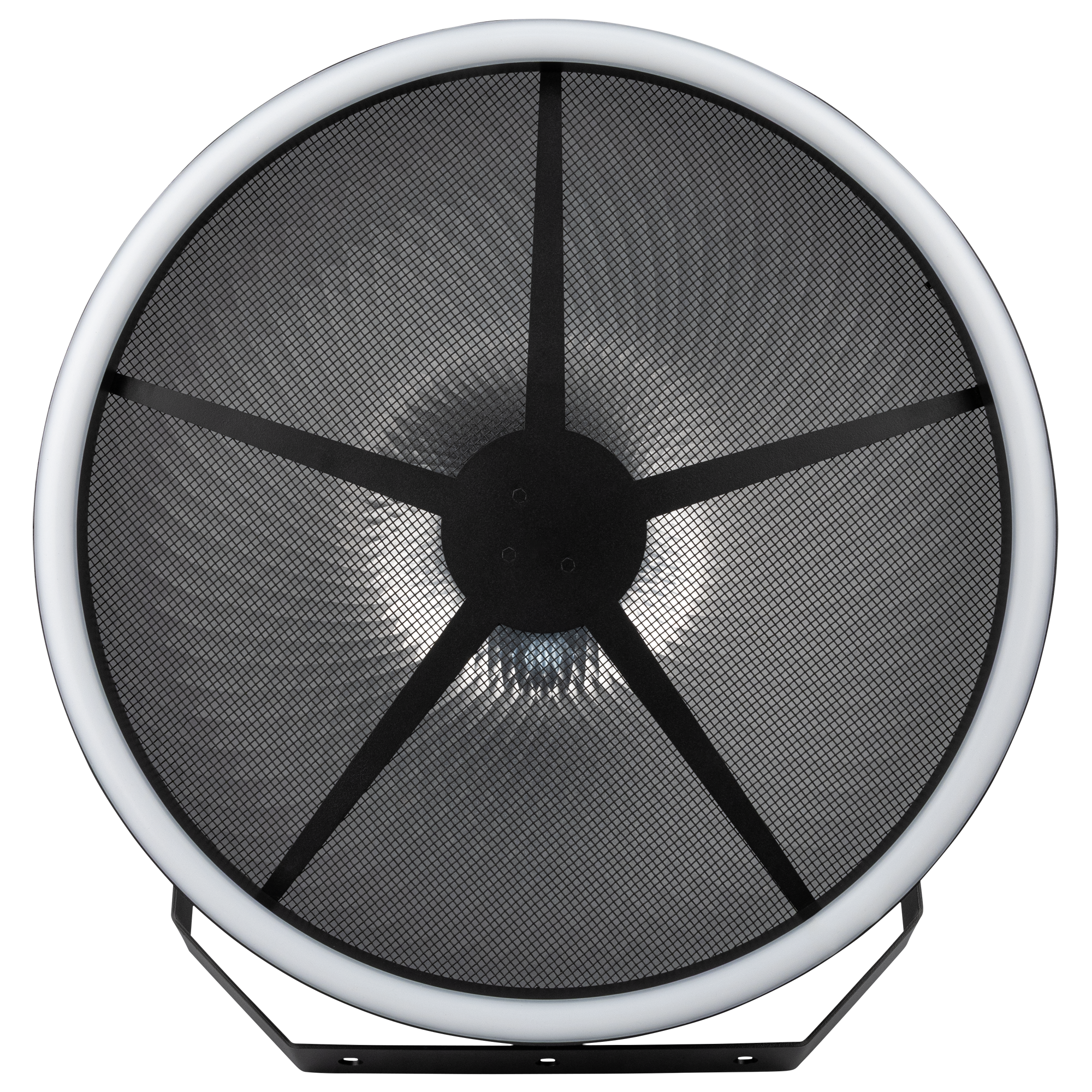

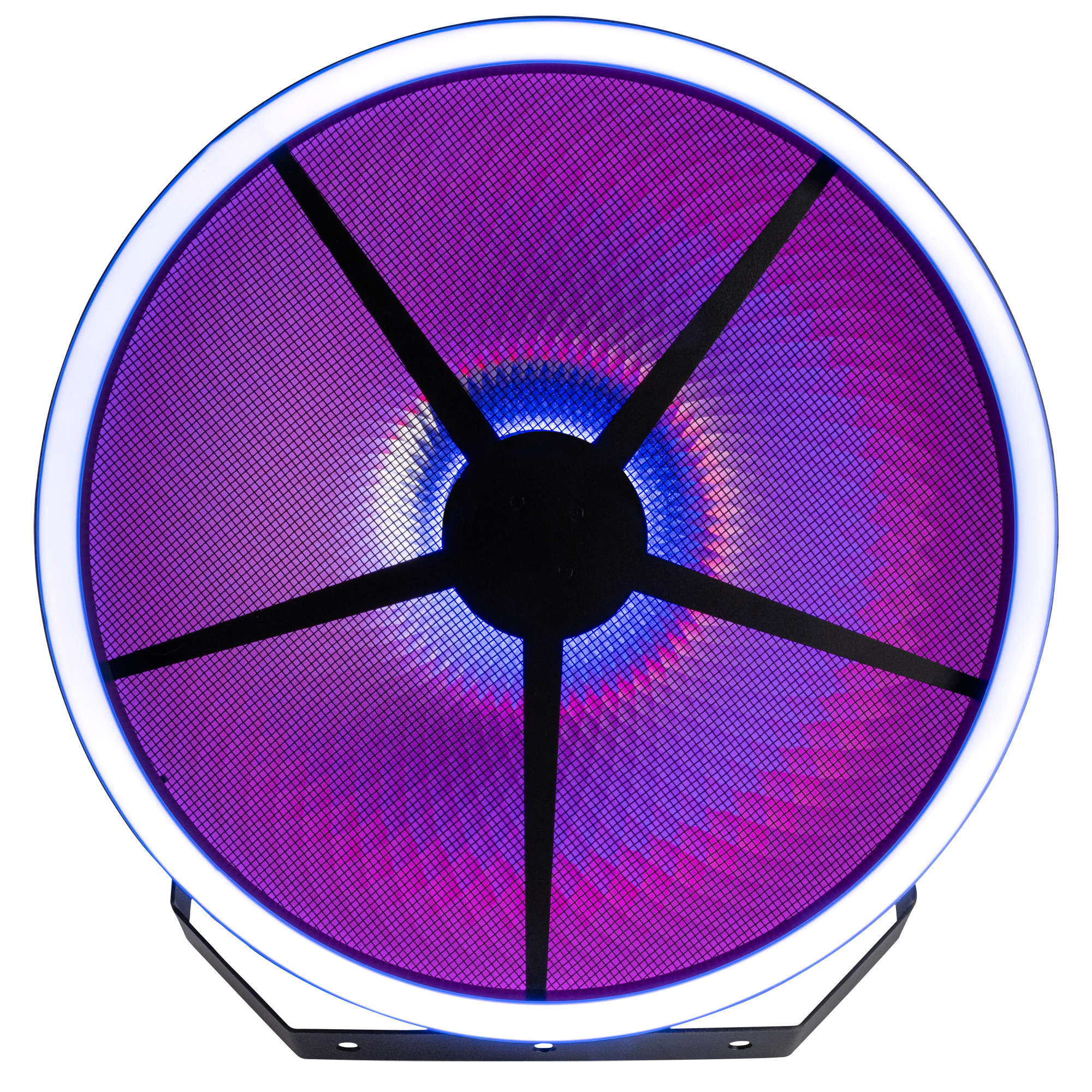

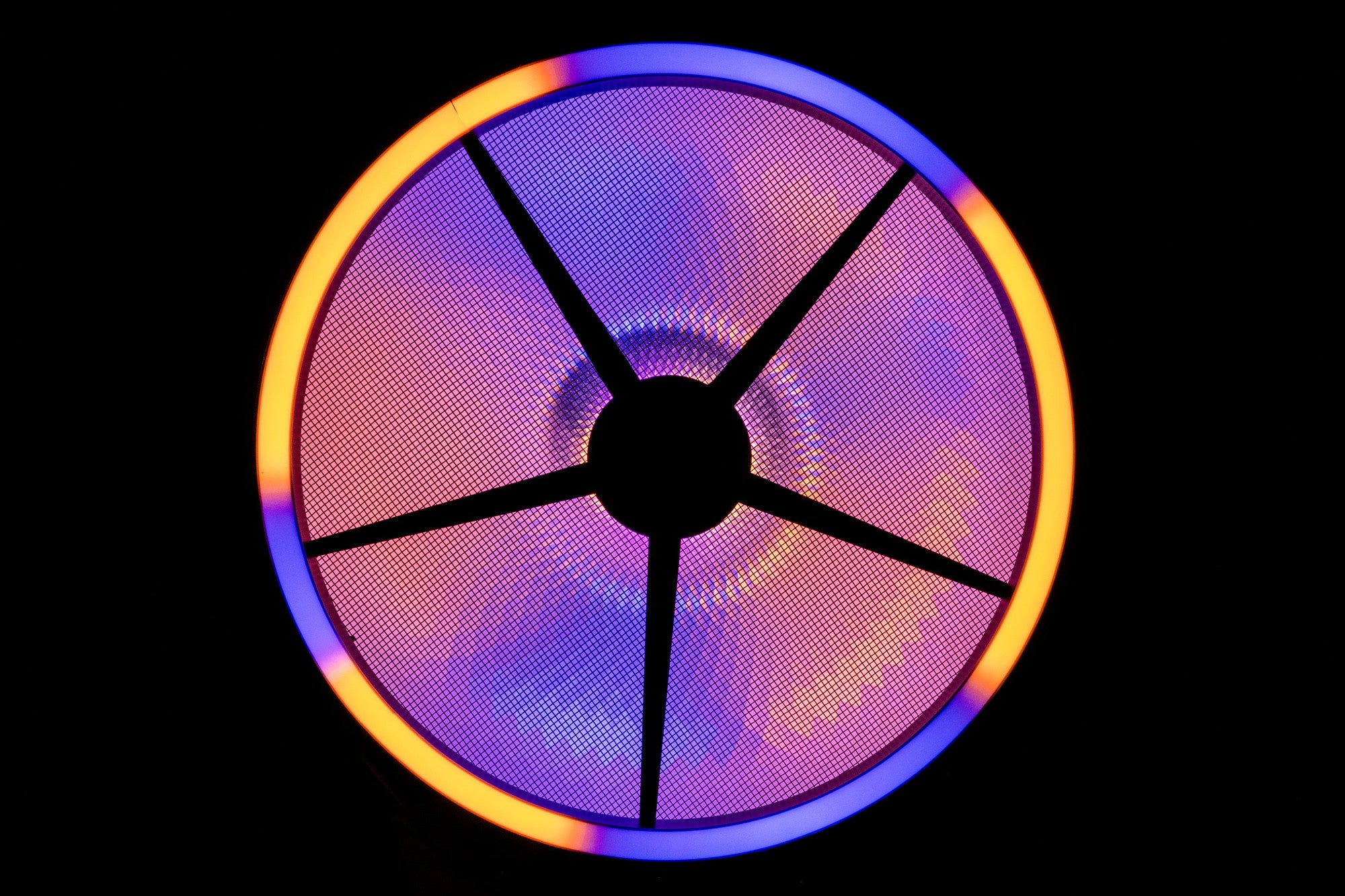

Behind the central circular plate there are 24 RGB LEDs that illuminate the centre of the reflector. Surrounding this, a large circle of 120 RGB LEDs lights up the reflector’s edges. A second ring of 120 RGB LEDs at the outer edge faces forward. Each RGB LEDs can be controlled individually, offering nearly infinite effect possibilities.

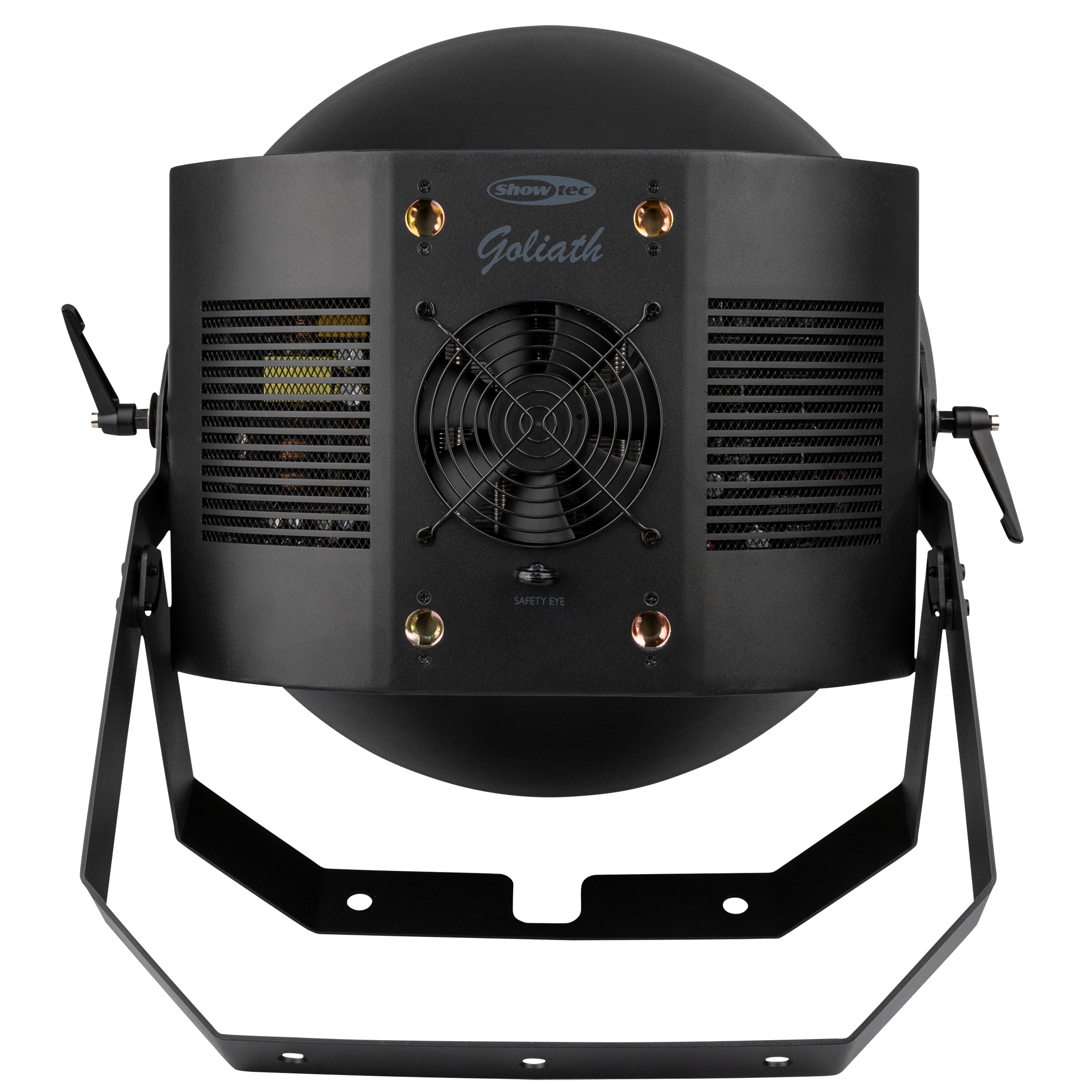

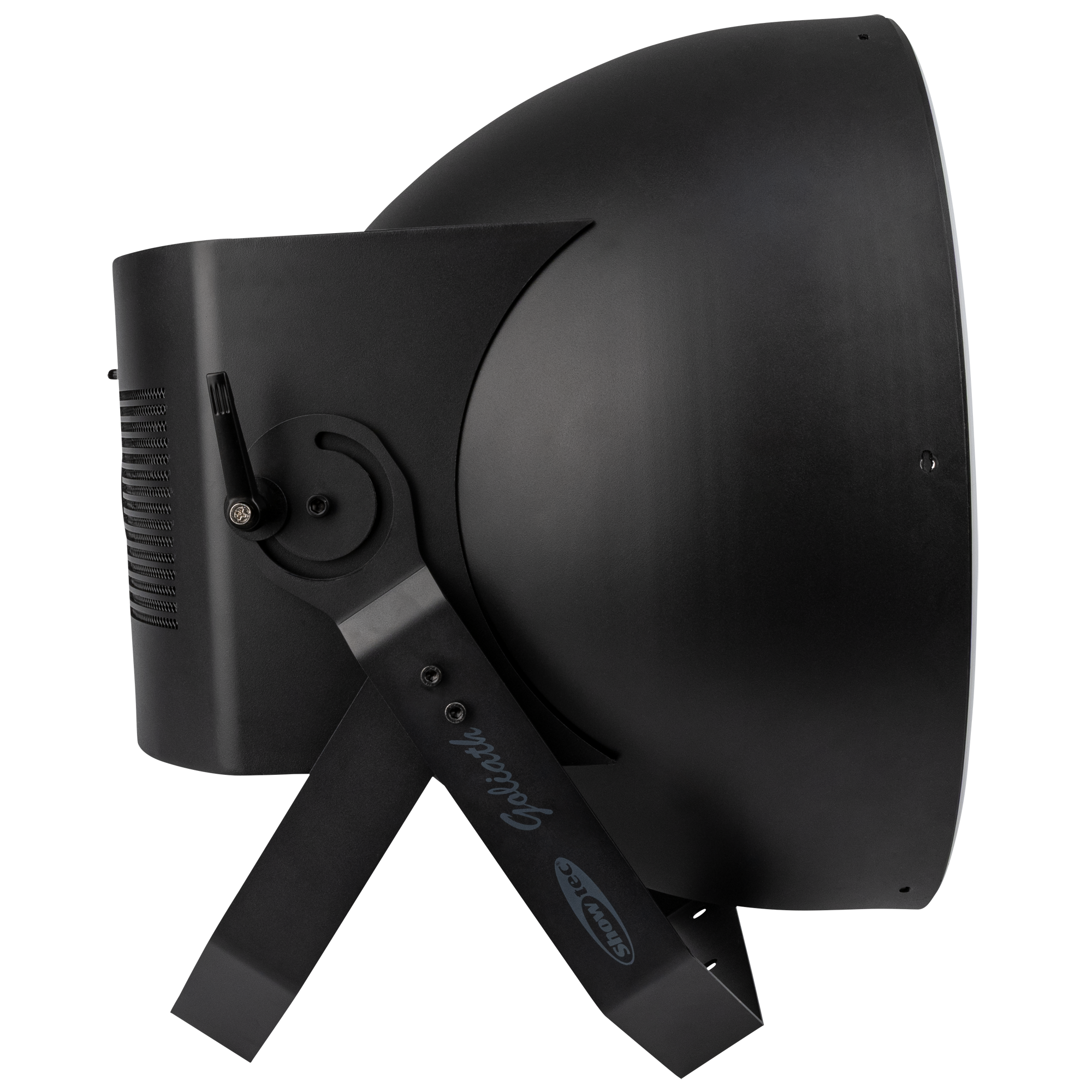

The Goliath supports multiple control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual modes, with several personalities ranging from 4 to 793 channels. It features a double bracket for both hanging and standing installations. Additionally, quick-lock mounting points on the back allow for easy attachment to a truss using the included brackets.
320 W LED with retro tungsten dimming effect264 Individually controllable RGB LEDsSupports DMX, Art-Net, sACN, RDM, master/slave, and manual modesDouble bracket for hanging or standing installationsChannel range from 4 to 793 for versatile configurations
Showtec Goliath
Product Specifications
- Light Source Specifications ›
- Control and Programming ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Rigging and Mounting ›
- Included Items ›
Light Source Specifications
| Light Source Type | LED |
| Light Source 1 - Quantity | 1 |
| Light Source 1 - Power | 320 W |
| Light Source 2 - Quantity | 264 |
| Light Source 2 - Power | 0.5 W |
| LED Colour Type | WW, RGB |
| Refresh Rate (Max.) | 4 kHz |
Control and Programming
| Control Mode | Art-Net, Built-in Program, DMX, RDM, sACN, Stand Alone |
| DMX Channels | 4, 5, 13, 19, 433, 793 |
| Protocols | Art-Net, DMX, RDM, sACN |
| Display | OLED |
| Dynamic Effects | Dimmer |
| Dimmer Range | 0-100 % |
Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 360 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector In | RJ45, XLR 3P, XLR 5P |
| DMX Connector Out | RJ45, XLR 3P, XLR 5P |
Mechanical Specifications
| Height (Including Handles) | 582 mm (22.913″) |
| Height (Without Handles) | 490 mm (19.291″) |
| Width (Including Handles) | 468 mm (18.425″) |
| Width (Without Handles) | 490 mm (19.291″) |
| Depth (Including Handles) | 433 mm (17.047″) |
| Weight | 12 kg (26.455 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
Thermal Specifications
| Cooling | Active |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Operating Temperature | -5 °C (23 °F) |
Rigging and Mounting
| Mounting Options | Bracket, Quick-Lock |
Included Items
| Included Cables | Power Pro Cable |
| Included Rigging | 2x Quick-Lock Bracket |
| Light Source Type | LED |
| Light Source 1 - Quantity | 1 |
| Light Source 1 - Power | 320 W |
| Light Source 2 - Quantity | 264 |
| Light Source 2 - Power | 0.5 W |
| LED Colour Type | WW, RGB |
| Refresh Rate (Max.) | 4 kHz |
| Control Mode | Art-Net, Built-in Program, DMX, RDM, sACN, Stand Alone |
| DMX Channels | 4, 5, 13, 19, 433, 793 |
| Protocols | Art-Net, DMX, RDM, sACN |
| Display | OLED |
| Dynamic Effects | Dimmer |
| Dimmer Range | 0-100 % |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 360 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector In | RJ45, XLR 3P, XLR 5P |
| DMX Connector Out | RJ45, XLR 3P, XLR 5P |
| Height (Including Handles) | 582 mm (22.913″) |
| Height (Without Handles) | 490 mm (19.291″) |
| Width (Including Handles) | 468 mm (18.425″) |
| Width (Without Handles) | 490 mm (19.291″) |
| Depth (Including Handles) | 433 mm (17.047″) |
| Weight | 12 kg (26.455 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
| Cooling | Active |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Operating Temperature | -5 °C (23 °F) |
| Mounting Options | Bracket, Quick-Lock |
| Included Cables | Power Pro Cable |
| Included Rigging | 2x Quick-Lock Bracket |
