Product Specifications
Control and Programming
| Control Mode | Built-in Program, Manual, MIDI, Static Dimmer |
| DMX Channels | 144 |
| Protocols | DMX |
| Display | LCD |
| Buttons | 44 |
| Faders | 26 |
| Memories | 1000 |
Explore products built for diverse applications.
Explore products from trusted brands.

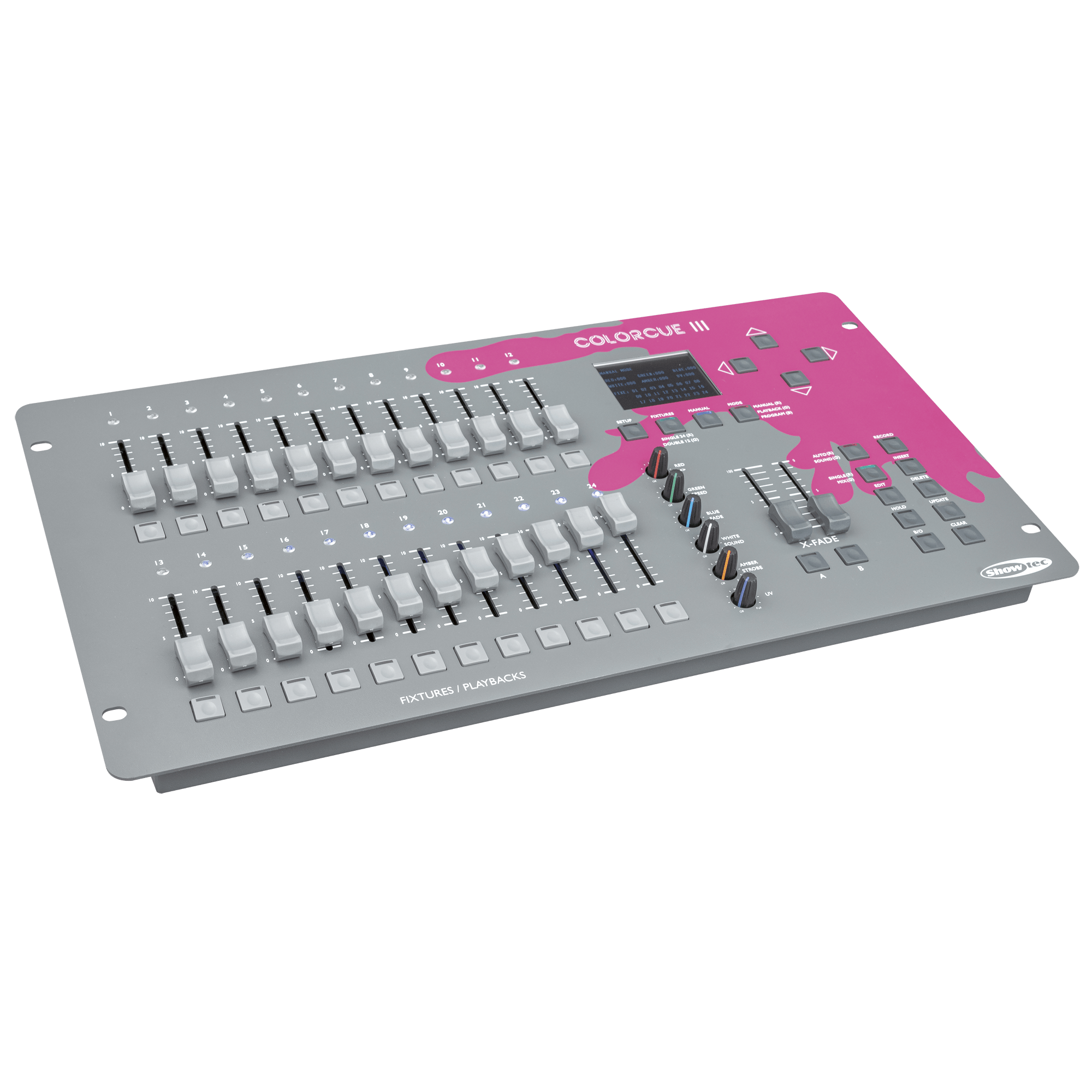

The Showtec ColorCue 3 is an intelligent 24-fader LED DMX controller for easily controlling 3 to 6 colour LED fixtures with up to 144 DMX channels, suitable for any venue. Its 6 potentiometers enable a quick control for various colour engines, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 3 comes with a memory button below every fader for smart control over your colours, chases and user settings. Equipped with 2 smart master faders and an intuitive LED display, you can easily control 2 sections and attach fixtures to any of the 24 available fader. For changing colours and effects in a loop, you can create and playback 24 chases with a maximum of 99 steps per chase. The chase can be controlled in either Manual, Auto run and Sound-controlled mode.
Intelligent 24-fader LED DMX controllerSuitable for 3 to 6 colour LEDs24 user colours24 user chases with up to 99 stepsManual, Auto run and Sound-controlled mode
| Control Mode | Built-in Program, Manual, MIDI, Static Dimmer |
| DMX Channels | 144 |
| Protocols | DMX |
| Display | LCD |
| Buttons | 44 |
| Faders | 26 |
| Memories | 1000 |
| Power Supply | 12 V DC |
| Power Consumption | 15 W |
| Power Connector In | Low Voltage DC plug |

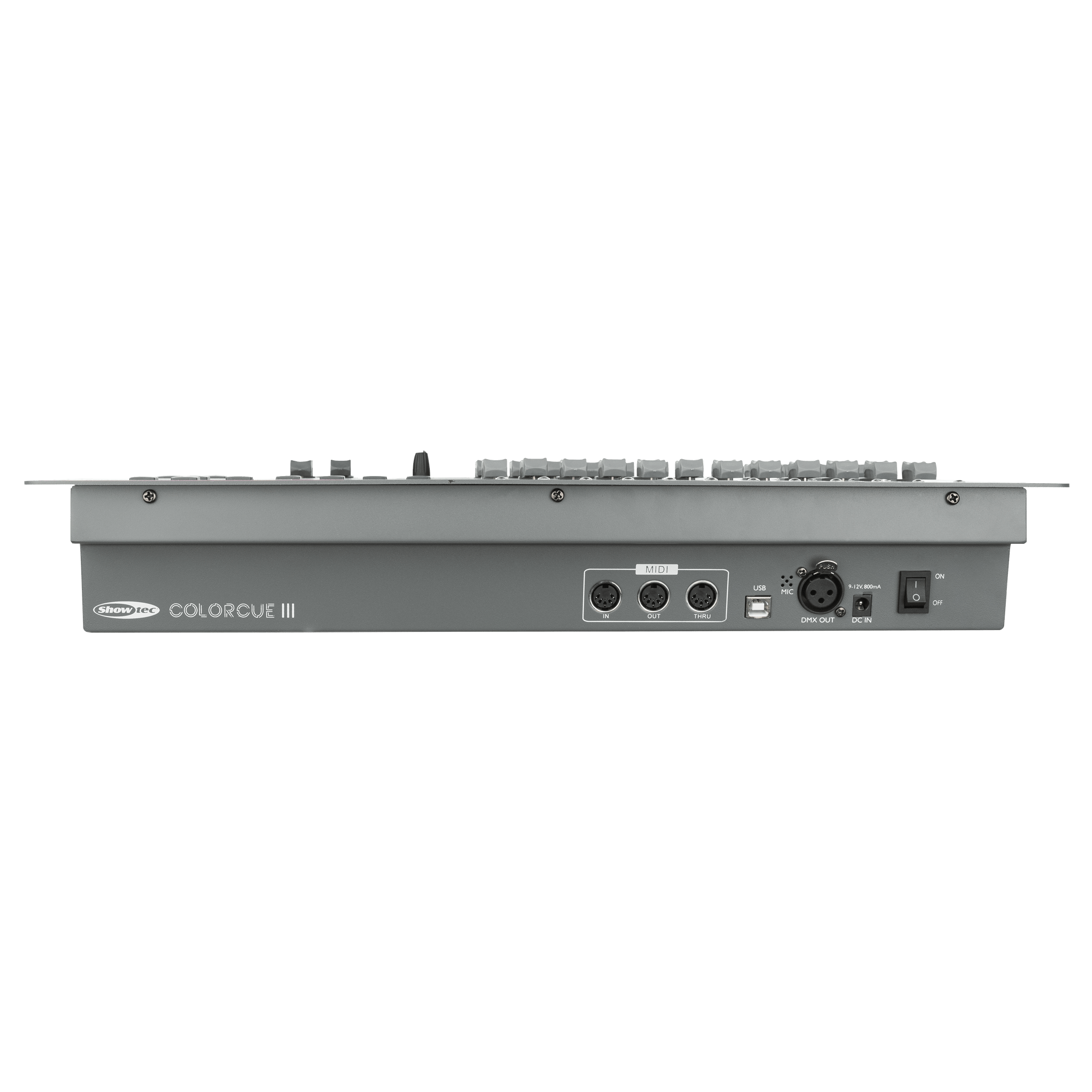

| DMX Connector Out | XLR 3P |
| Audio Triggers | 1 |
| Length | 482 mm (18.976″) |
| Width | 261 mm (10.276″) |
| Height | 80 mm (3.15″) |
| Installation Depth (Excl. Connector) | 80 mm (3.15″) |
| Weight | 3.6 kg (7.937 lb) |
| Rack Units | 6 U |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Gray, Magenta |
| LED Indicators | Operation mode, Output level |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Included Cables | None |
| Included Accessories | Adapter |
| Control Mode | Built-in Program, Manual, MIDI, Static Dimmer |
| DMX Channels | 144 |
| Protocols | DMX |
| Display | LCD |
| Buttons | 44 |
| Faders | 26 |
| Memories | 1000 |
| Power Supply | 12 V DC |
| Power Consumption | 15 W |
| Power Connector In | Low Voltage DC plug |
| DMX Connector Out | XLR 3P |
| Audio Triggers | 1 |
| Length | 482 mm (18.976″) |
| Width | 261 mm (10.276″) |
| Height | 80 mm (3.15″) |
| Installation Depth (Excl. Connector) | 80 mm (3.15″) |
| Weight | 3.6 kg (7.937 lb) |
| Rack Units | 6 U |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Gray, Magenta |
| LED Indicators | Operation mode, Output level |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Included Cables | None |
| Included Accessories | Adapter |
