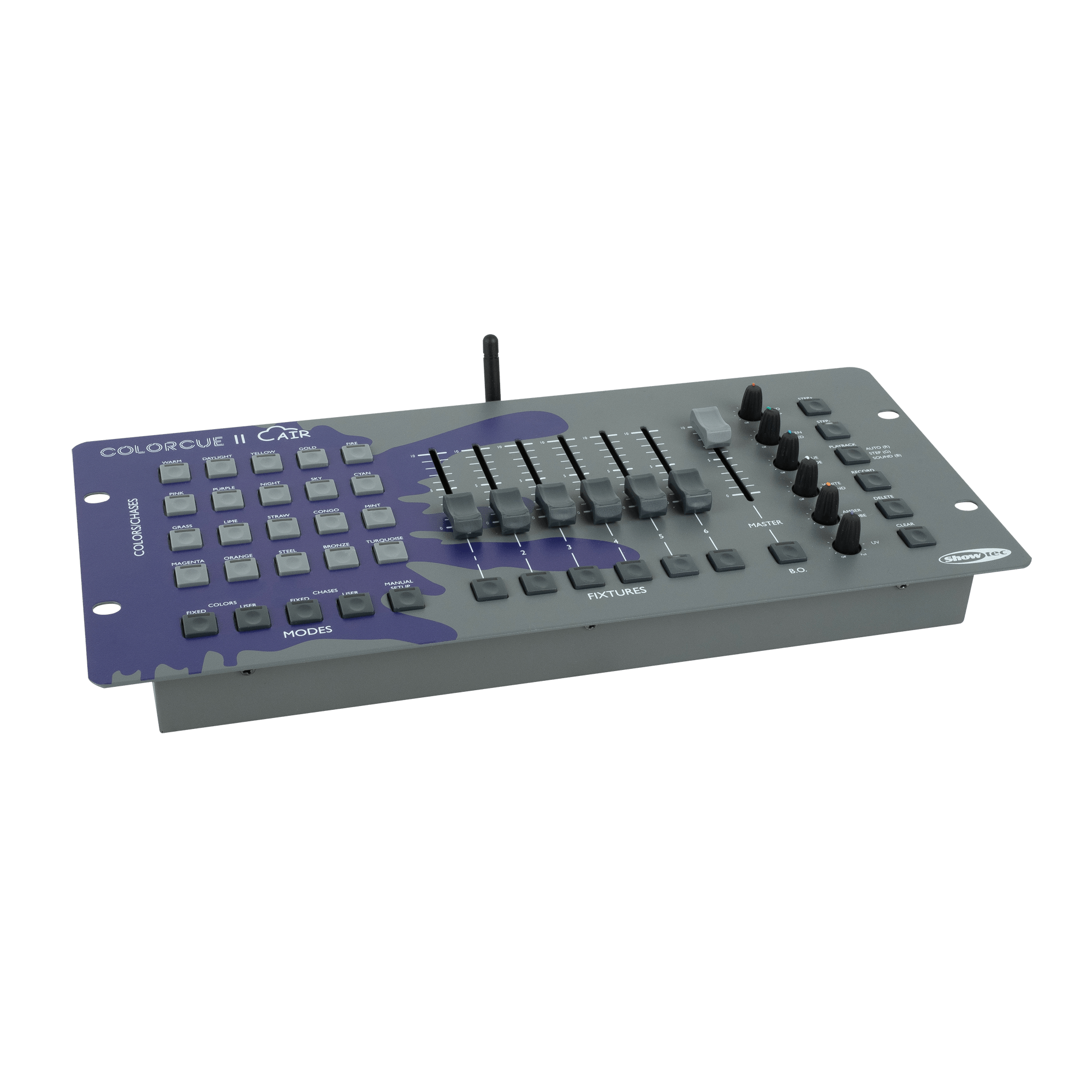

Showtec ColorCue 2 Air
The Showtec ColorCue 2 Air is an intelligent 6-fader LED DMX controller with 36 channels for wirelessly controlling the light output of LED fixtures with up to 6 colours (RGBWA-UV), suitable for any venue. Its 6 potentiometers enable you to quickly tune the lights to your desired colour, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 2 Air enables you to create your own 20 preset colours and you can choose between 20 fixed colours. You can create up to 20 programs (chases) with each up to 99 steps for changing colours and effects in a loop. The chases can be controlled in Manual, Auto-run, or Sound-controlled mode. The wireless DMX capabilities and internal battery, good for up to 12 hours of operation, completely omit the need for running cables to the controller, which is ideal in a temporary setup!
Intelligent 6-fader LED DMX controller with wireless DMXInternal battery for up to 12 hours of operationSuitable for 3 to 6 colour LEDs20 fixed and 20 user colours20 fixed and 20 user chases with up to 99 steps
Showtec ColorCue 2 Air
Product Specifications
- Wireless Specifications ›
- Battery ›
- Control and Programming ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Product Properties ›
- Included Items ›
Wireless Specifications
| Wireless Mode | G3 |
| Gain (mW) | 10 mW |
| Reaction Time | 8 ms |
| Antenna Type | Omni |
| Antenna Radiation | 360 x 360 ° |
Battery
| Battery Type | Lithium ion |
| Battery Voltage | 7.4 V |
| Capacity | 2.6 Ah |
| Battery Power | 19.42 Wh |
| Runtime @Full | 8 h |
| Runtime Average | 12 h |
| Charging Time | 6 h |
Control and Programming
| Control Mode | Built-in Program, Manual, Sound, Static Dimmer |
| DMX Channels | 36 |
| Protocols | DMX, Wireless, Wireless DMX |
| Buttons | 39 |
| Faders | 7 |
| Memories | 2020 |
Electrical Specifications
| Power Supply | 9-12 V DC |
| Power Consumption | 15 W |
| Power Connector In | Low Voltage DC plug |
| DMX Connector Out | XLR 3P |
| Audio Triggers | 1 |
Mechanical Specifications
| Length (mm) | 385 mm (15.158″) |
| Width (mm) | 175 mm (6.89″) |
| Height (mm) | 79 mm (3.11″) |
| Installation Depth (Excl. Connector) | 79 mm (3.11″) |
| Weight | 1.9 kg (4.189 lb) |
| Rack Units | 4 U |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Dark Blue, Gray |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Ambient Temperature | -5 °C (23 °F) |
Product Properties
| LED Indicators | Battery status, Operation mode, Output level |
Included Items
| Included Cables | None |
| Included Accessories | Adapter |
