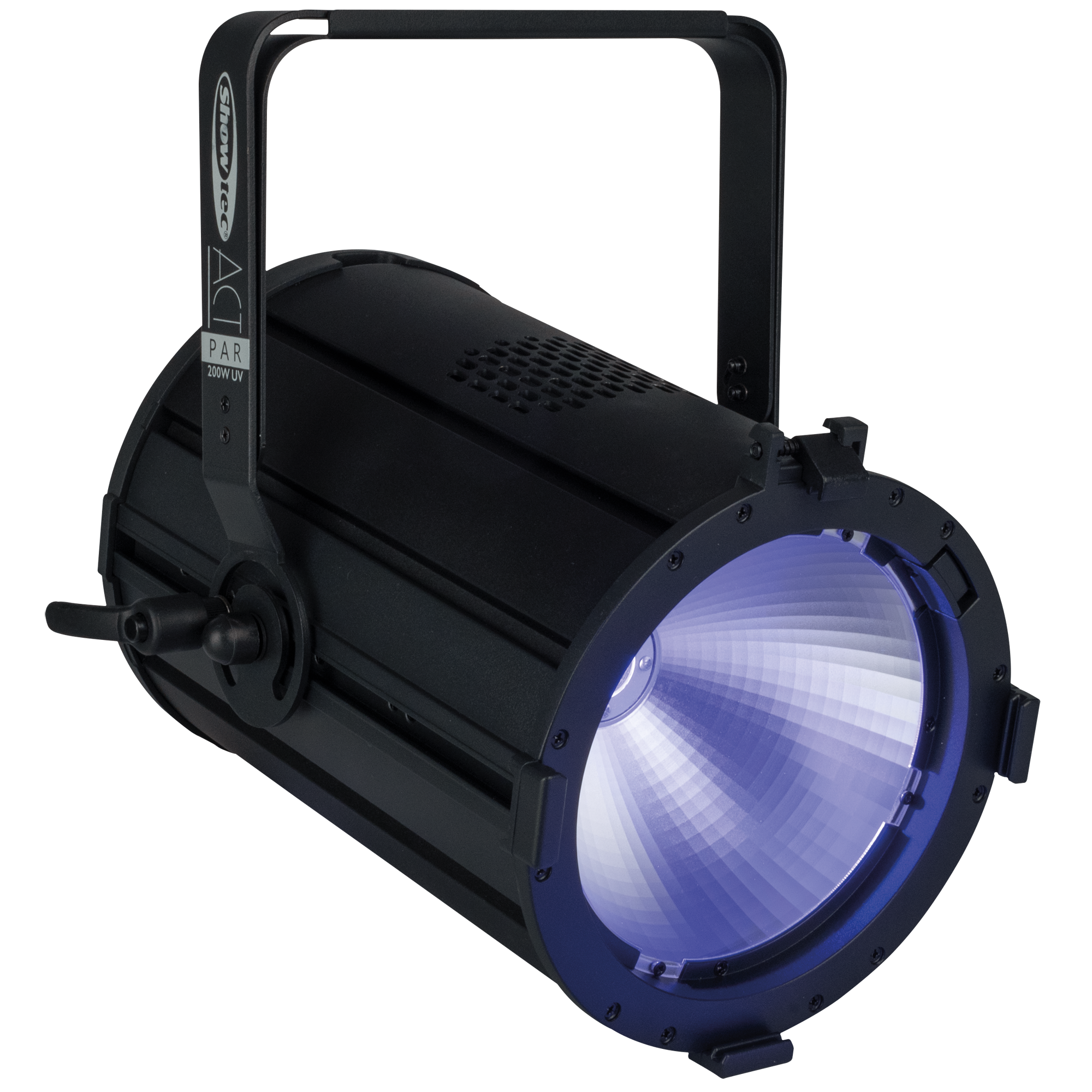

Showtec ACT Par 200 UV

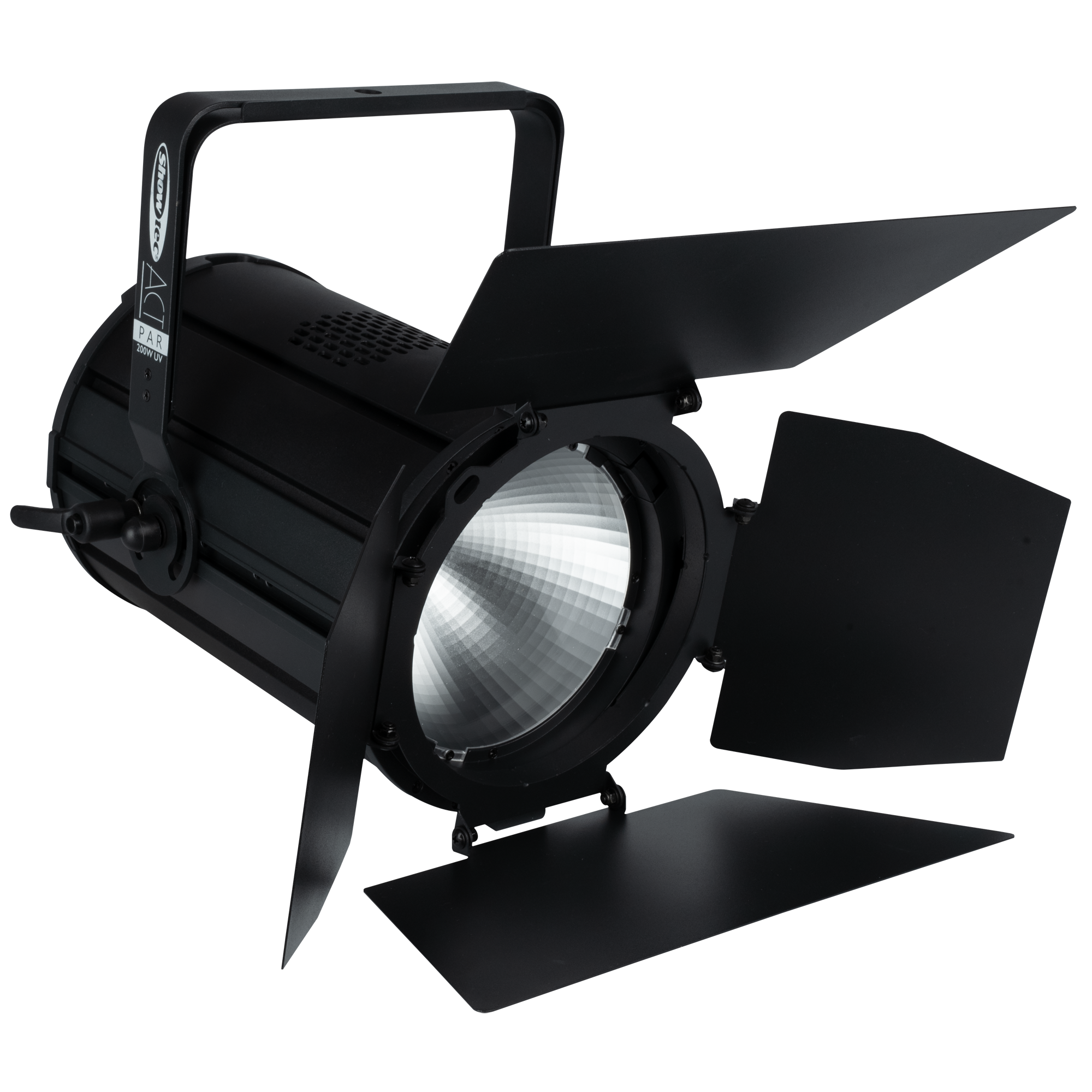

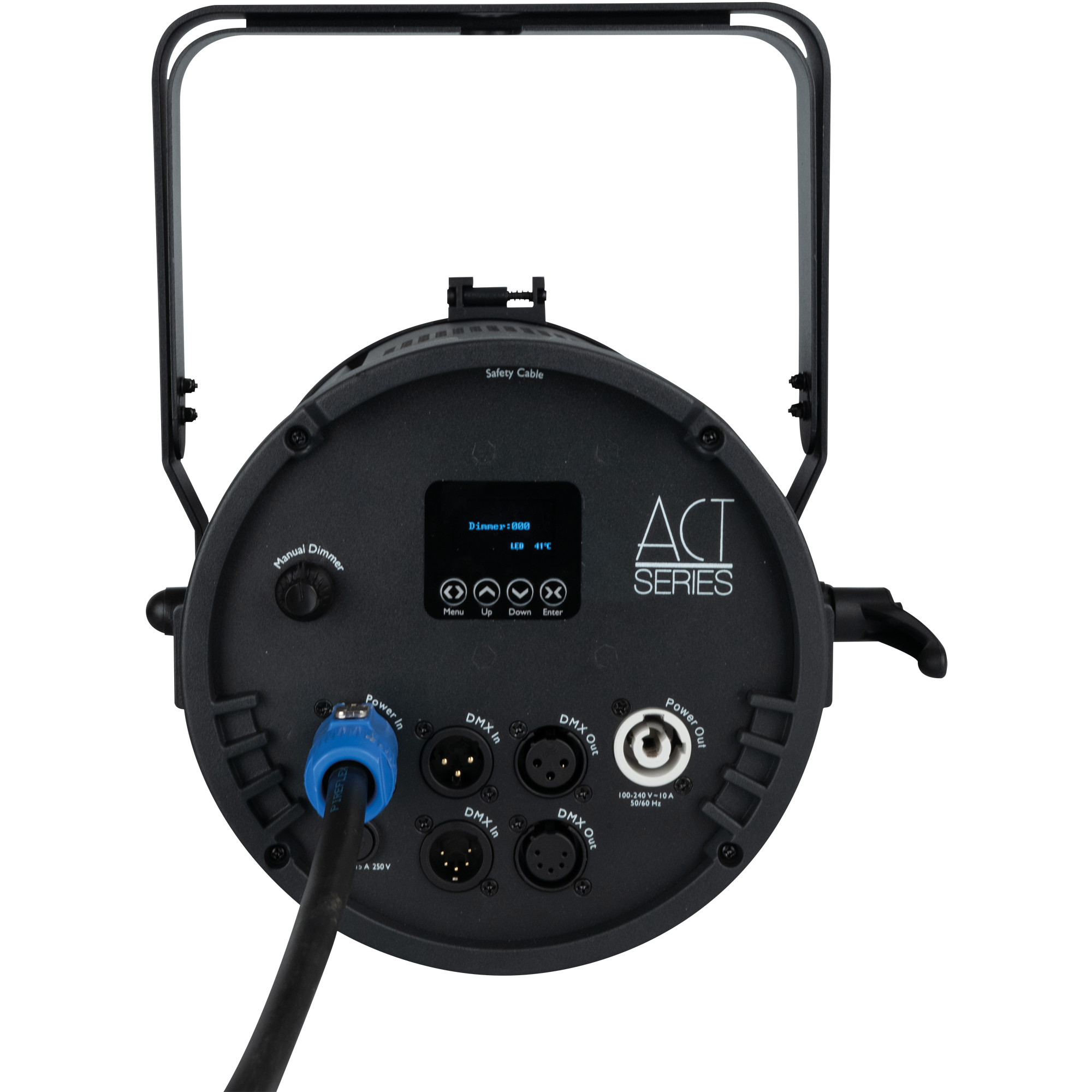

The Showtec ACT Par 200W UV is a 200-watt UV Par with a beam angle of 32°. It’s ideal for effect applications where fluorescence is key. A manual dimmer knob on the back allows easy manual control, while both 3-pin and 5-pin DMX inputs and outputs enable seamless integration into a variety of lighting setups. The ACT Par 200W UV also benefits from a strobe function. A 4-leaf barndoor for beam shaping is optional.
- 200 W UV Par
- 3 & 5-pin DMX inputs and outputs
- Manual dimmer knob
- Strobe function
✕
See It In Action
Get a personalised walkthrough of the Showtec ACT Par 200 UV before you decide.
Showtec ACT Par 200 UV
Free
Product Specifications
- Light Source ›
- Optical Specifications ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Product Properties ›
- Included Items ›
Light Source
| Type | LED |
| Quantity | 1 |
| Power | 200 W |
Optical Specifications
| Beam Angle (Circular) | 32 ° |
Electrical Specifications
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 205 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P, XLR 5P |
| DMX Connector Out | XLR 3P, XLR 5P |
Mechanical Specifications
| Height | 304 mm (11.969″) |
| Width | 258 mm (10.158″) |
| Depth | 280 mm (11.024″) |
| Weight | 4.5 kg (9.921 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium |
| Colour | Black |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C (104 °F) |
Product Properties
| Cooling | Axial fan |
| Mounting Options | Bracket, Floor |
Included Items
| Included Cables | Power Pro Cable |
| Type | LED |
| Quantity | 1 |
| Power | 200 W |
| Beam Angle (Circular) | 32 ° |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 205 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P, XLR 5P |
| DMX Connector Out | XLR 3P, XLR 5P |
| Height | 304 mm (11.969″) |
| Width | 258 mm (10.158″) |
| Depth | 280 mm (11.024″) |
| Weight | 4.5 kg (9.921 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium |
| Colour | Black |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Cooling | Axial fan |
| Mounting Options | Bracket, Floor |
| Included Cables | Power Pro Cable |
Downloads
User Manual
