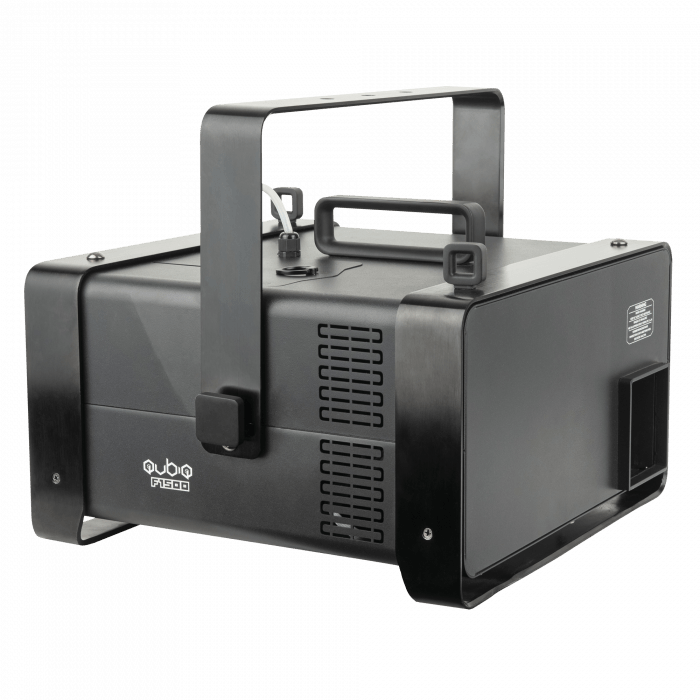

Showtec QubiQ F1500 Fazer
The Showtec QubiQ F1500 is a professional 1500 W fazer with a high airflow radial fan. This fazer is reliable, safe and feature-rich. In addition, it has a practical and nice looking design. It will be your best smoking friend at small to large venues.

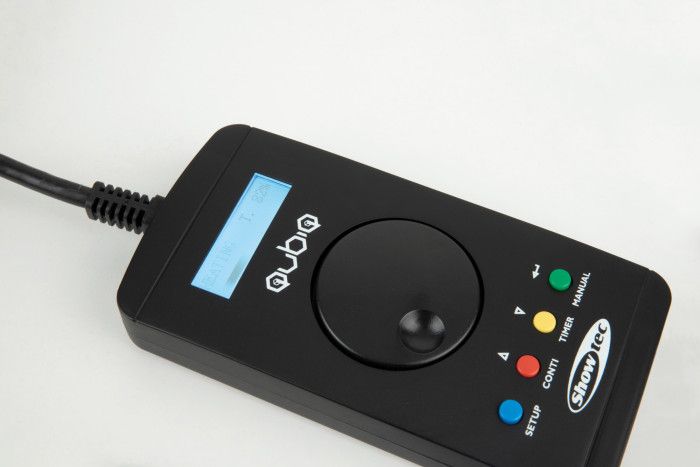

The smoke intensity is seamlessly adjustable from 0-100 % with a sophisticated microcontroller for precise control. You can not only control the fogger manually, you can also control it via DMX or the included timer remote control.
The QubiQ F1500 is reliable since it can provide a continuous output and it has a comprehensive security. It has an accurate and reliable temperature control (double over temperature protection), as well as a sensor to know when the liquid is almost empty.
Weight (kg): 15.5
Length (m) : 0.49
Width (m) : 0.48
Height (m): 0.4
Showtec QubiQ F1500 Fazer
Product Specifications
- Source ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Control and Programming ›
- Rigging ›
- Thermal Specifications ›
- Included Items ›
Source
| Light Source Type | LED |
| Light Source Quantity | 1 |
| Light Source Power | 1500 W |
| Heater | 1500 W |
| Warm-up Time | 4 min |
| Warm-up Duration | 4 minutes |

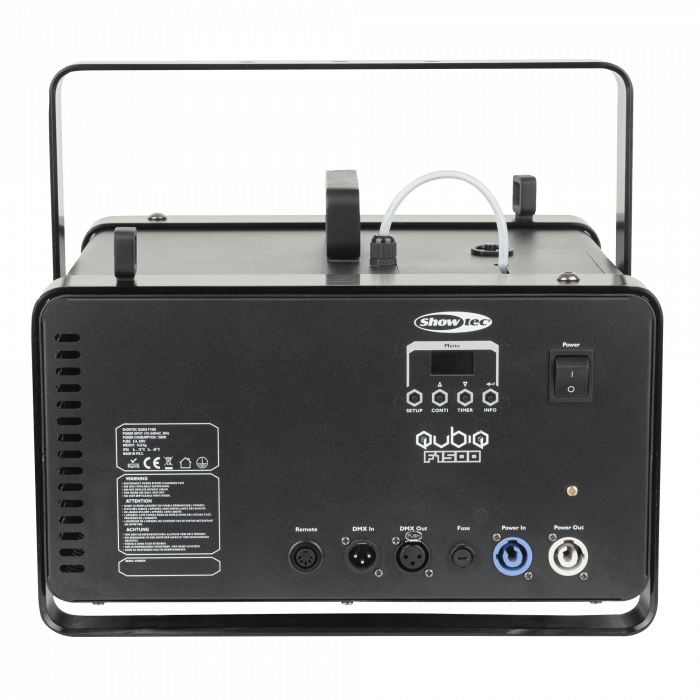

Electrical Specifications and Connections
| Power Supply | 220-240 V AC 50 Hz |
| Power Consumption | 1500 W |

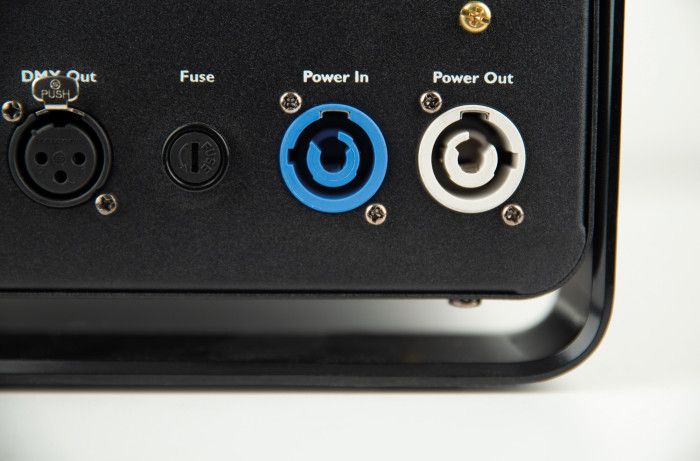

| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Remote Connector | 5-pin DIN |
Mechanical Specifications
| Length (mm) | 385 mm |
| Width (mm) | 412 mm |
| Height (mm) | 330 mm |
| Weight | 15.1 kg |
| Fluid Tank Capacity | 2.3 L |
| Fluid Tank Size | 2.3 litres |
| IP Rating | IP20 |
| Housing | Aluminium, Metal |
| Colour | Black |
| Output Direction | Forward |
| Output Direction Mode | Forward |
Control and Programming
| Control Mode | DMX, Manual, Remote, Timer |
| DMX Channels | 2 |

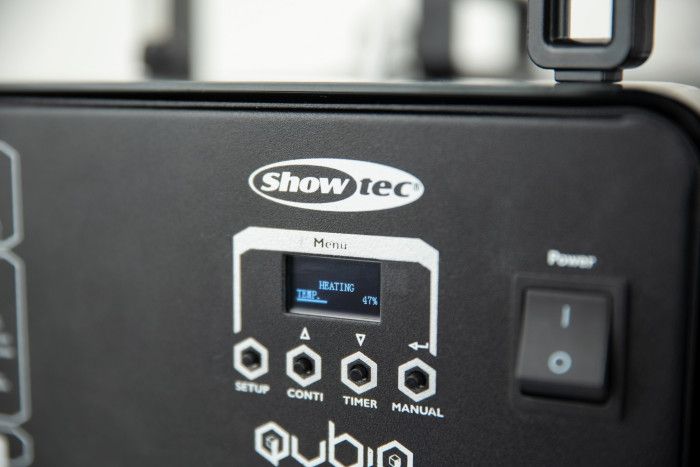

| Display | OLED |

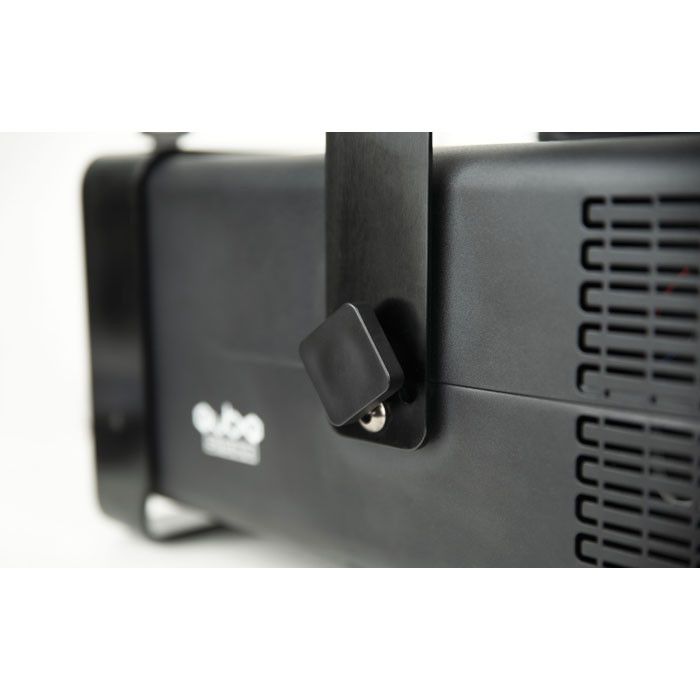

Rigging
| Mounting Options | Bracket, Floor |
| Safety Attachment | Yes |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C |
| Maximum Surface Temperature | 70 °C |
Included Items
| Included Cables | Power Pro Cable |

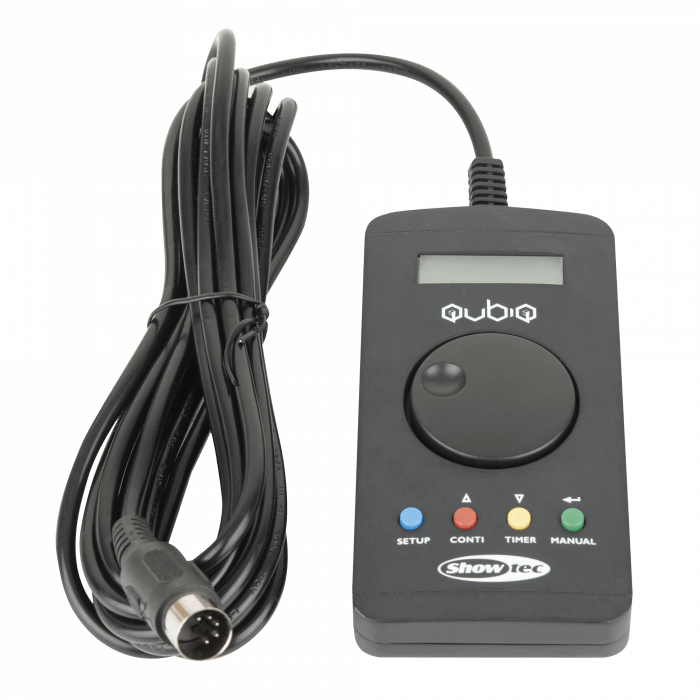

| Included Remotes | Timer, Wired |
| Light Source Type | LED |
| Light Source Quantity | 1 |
| Light Source Power | 1500 W |
| Heater | 1500 W |
| Warm-up Time | 4 min |
| Warm-up Duration | 4 minutes |
| Power Supply | 220-240 V AC 50 Hz |
| Power Consumption | 1500 W |
| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
| Remote Connector | 5-pin DIN |
| Length (mm) | 385 mm |
| Width (mm) | 412 mm |
| Height (mm) | 330 mm |
| Weight | 15.1 kg |
| Fluid Tank Capacity | 2.3 L |
| Fluid Tank Size | 2.3 litres |
| IP Rating | IP20 |
| Housing | Aluminium, Metal |
| Colour | Black |
| Output Direction | Forward |
| Output Direction Mode | Forward |
| Control Mode | DMX, Manual, Remote, Timer |
| DMX Channels | 2 |
| Display | OLED |
| Mounting Options | Bracket, Floor |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C |
| Maximum Surface Temperature | 70 °C |
| Included Cables | Power Pro Cable |
| Included Remotes | Timer, Wired |
