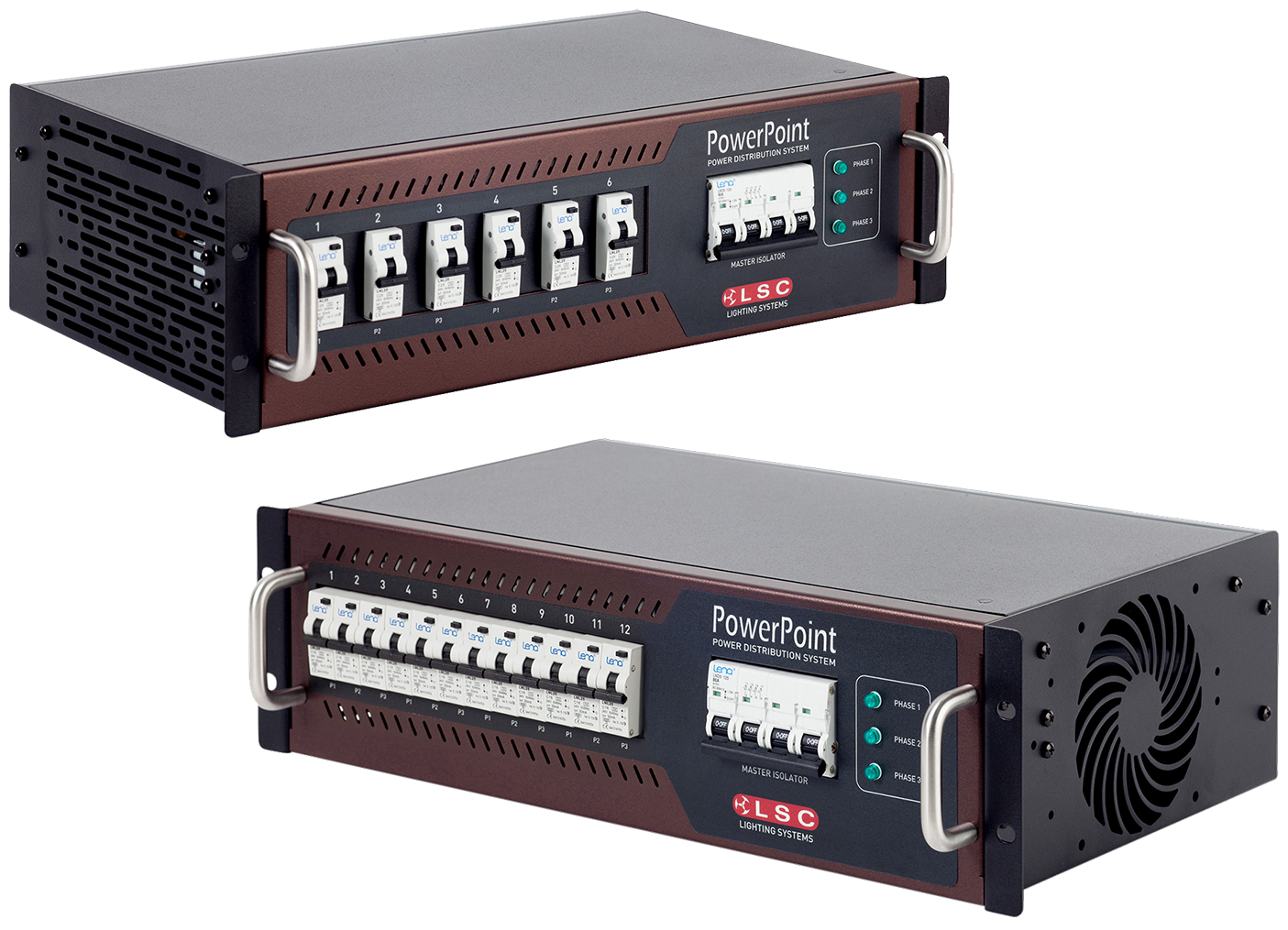

LSC Powerpoint
Simple Power Distribution
A show cannot function without reliable power and consequently power distribution has grown to be an integral part of any event. Simple and quick set-up of power distribution is handled effortlessly by the PowerPoint, delivering reliability at an affordable price.

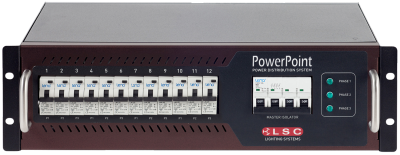

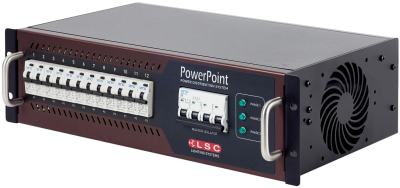

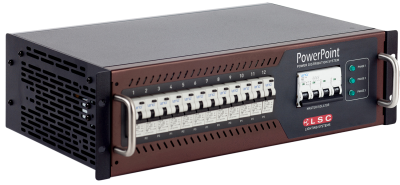

12 x 10A
12 x 16A

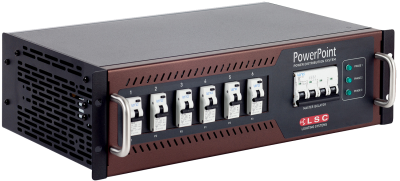

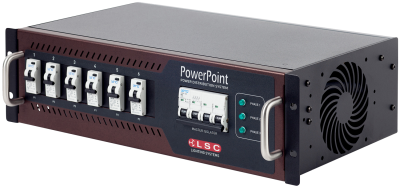

6 x 25A
LSC Powerpoint
Free
Product Specifications
- Output Configurations ›
- Protection ›
- Power Specifications ›
- Mechanical Specifications ›
- Power Input Cable ›
- Compliance and Warranty ›
Output Configurations
| 12 x 10A Output Channels | PWP12/10A, PWP12/10T, PWP12/10W, PWP12/10X, PWP12/10P |
| 12 x 16A Output Channels | PWP12/16A/32-40 |
| 6 x 25A Output Channels | PWP6/25A, PWP6/25T |

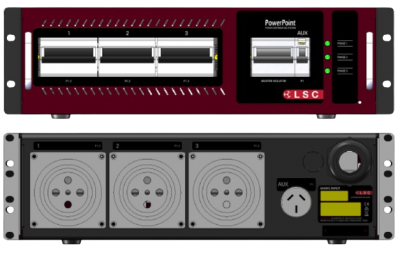

| 3 x 40A Output Channels | PWP3/40A |
Protection
| 10A Output Channel Protection | 10A Residual Current Breaker (RCBO) per output channel |
| 16A Output Channel Protection | 16A Residual Current Breaker (RCBO) per output channel |
| 25A Output Channel Protection | 25A Residual Current Breaker (RCBO) per output channel |
| 40A Output Channel Protection | 40A MCB or RCBO on 3-phase output channels, 16A RCBO on aux output channel |
| Earth Leakage Trip Current | 30mA per channel |
| Front Panel Indicator | Neon power indicator per phase |
| Mains Power Input Protection | 4-pole mains isolator switch with neutral disconnect |
| Mains MCB Protection | 40A 3-phase MCB |
Power Specifications
| Nominal Input Voltage | 100-240V AC, 3-phase star TN-S with fully rated earth |
| Frequency | 50-60Hz |
| Operating Voltage Range | 90-260V AC |
| Operating Frequency Range | 45-65Hz |
| Voltage and Frequency Adjustment | Auto |
Mechanical Specifications
| Dimensions | 483mm (w) x 132mm (h) x 300mm (d) – 3RU x 19" rackmount |
| Weight | 11kg |
| Chassis | Corrosion-resistant, powder-coated steel with rear-screened polycarbonate labels |
Power Input Cable
| 12 x 10A Cable | 1.2m long H07 rubber 5 core x 6mm² cable with 32A 5-pin 3-phase plug fitted |
| 12 x 16A/32-40A Cable | 1.2m long H07 rubber 5 core x 10mm² cable fitted with 63A CeeForm 5-pin 3-phase plug |
| 6 x 25A Cable | 1.2m long H07 rubber 5 core x 6mm² cable with 40A 5-pin 3-phase plug fitted |
| 3 x 40A Cable | 1.2m long H07 rubber 5 core x 6mm² cable fitted with 40A 3-phase plug |
| Export Models Cable | Supplied with no plug |
Compliance and Warranty
| Certifications | CE (European) and RCM (Australian) approved |
| Warranty | Five-year warranty |
| Manufacturer | Designed and manufactured in Australia by LSC, an Australian-owned company with over 40 years' experience |
