LSC APSX

Name: LSC APSX
Brand: clearlightshows
SKU: APXR12/10A
Availability: InStock

Advanced Power Distribution Now with Ethernet Connectivity

Powering numerous LED screen panels, audio amplifiers, or moving lights can pose significant challenges. The new APSX with Ethernet connectivity, provides a smart, scalable solution for the most demanding applications.

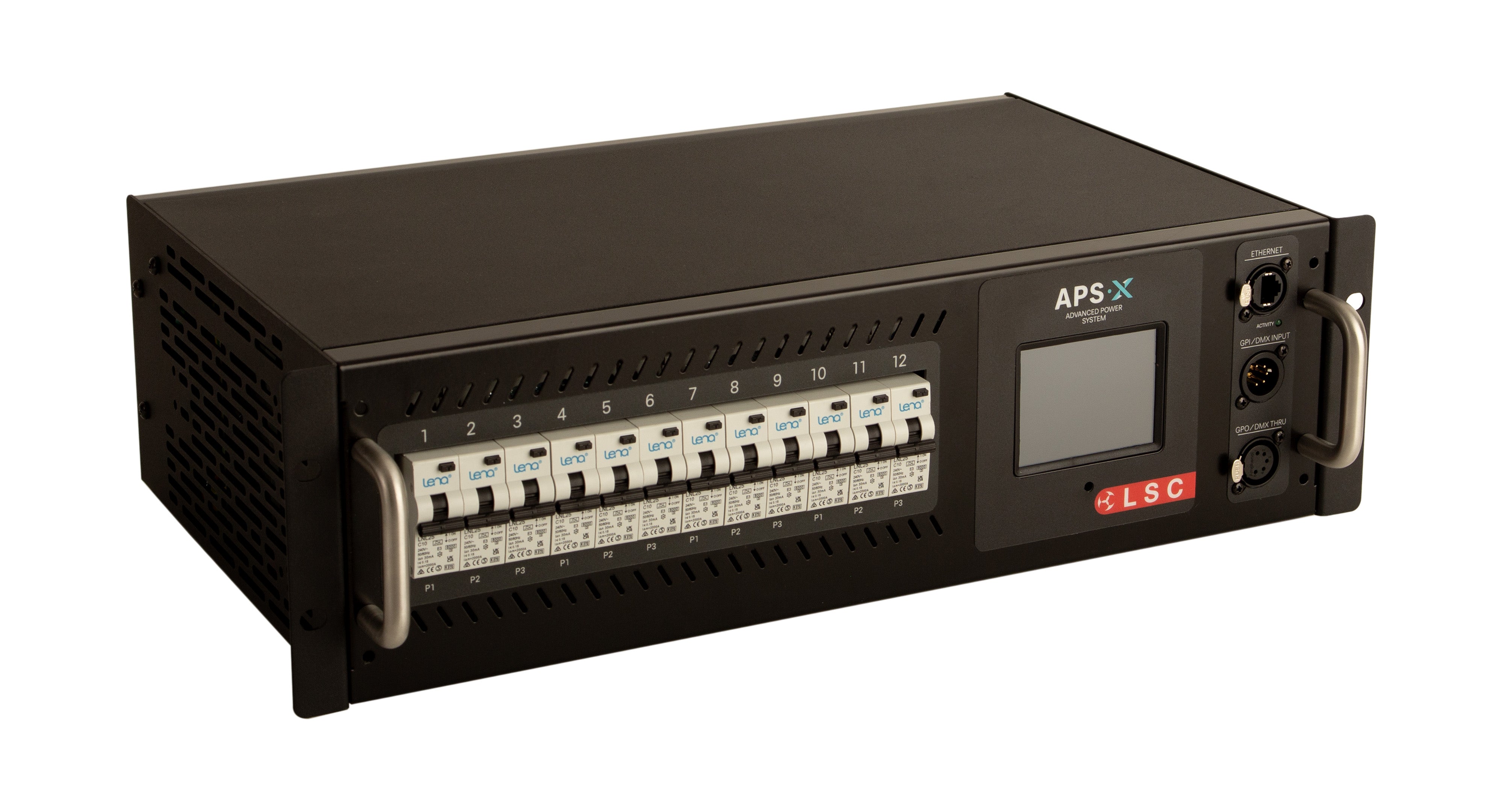

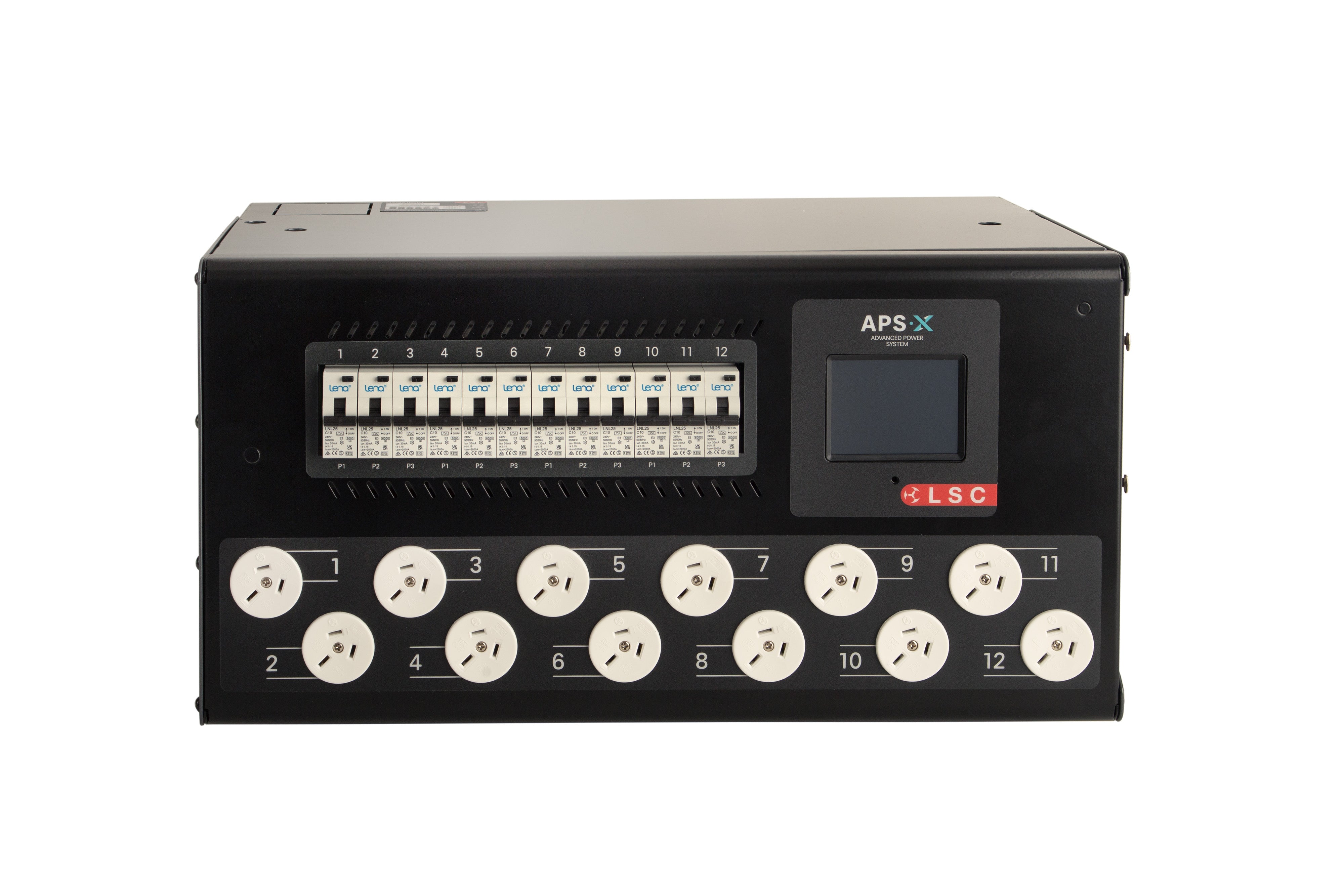

Available in Rackmount and Wallmount options

12 x 10A

12 x 16A

6 x 25A

LSC APSX

Free

Product Specifications

Control

Display	3.2" colour LCD with touchscreen
Programmable Mode	Stand-alone mode via easy-to-use menus
Network Protocols	sACN (E1-31), Art-Net, ArtRDM & OSC via Ethercon RJ45 connector
DMX Input	DMX512 (1990) or DMX512-A (E1-11) with RDM (E1-20) functionality on 5-pin XLR connectors
GPI Input	Voltage free contact closure on 5-pin XLR connectors (using pins 1+4)

Download Manual

Related products
Recently viewed

RCBO Breakers Option 1	12 channel x 10A with 30mA trip per channel
RCBO Breakers Option 2	12 channel x 16A with 30mA trip per channel
RCBO Breakers Option 3	6 channel x 25A with 30mA trip per channel
Proactive Dropped Neutral Protection	PDNP: Outputs not activated until input voltages and neutral checked for correct wiring
Start-up Features	Programmable channel sequential start-up time delay and cascading start-up between multiple units
Voltage Control	Programmable min and max voltage cut-off per phase

Display Monitoring	3-phase voltage and current levels monitoring on main display
Remote Configuration	Via RDM protocol or LSC's HOUSTON X software

Nominal Input	100-240V, 3-phase star, 50-60Hz (single-phase operation possible, 63A maximum)
Operating Range	Typically 90-260V, 45-65Hz
Power Connection	Hardwired models supplied with L1, L2, L3, N and E terminals. Other models as per cable specifications.
Cable Option 1	1.2m long H07 rubber 5 core x 6mm (32A 5-pin 3-phase plug for Australian models)
Cable Option 2	1.2m long H07 rubber 5 core x 10mm (63A CeeForm 5-pin 3-phase plug for Australian models)
Cable Option 3	1.2m long H07 rubber 5 core x 6mm (40A 5-pin 3-phase plug for Australian models)

Dimensions	483mm (w) x 300mm (d) x 132mm (h)
Weight	11kg
Chassis	Full metal chassis with rear-screened polycarbonate labels

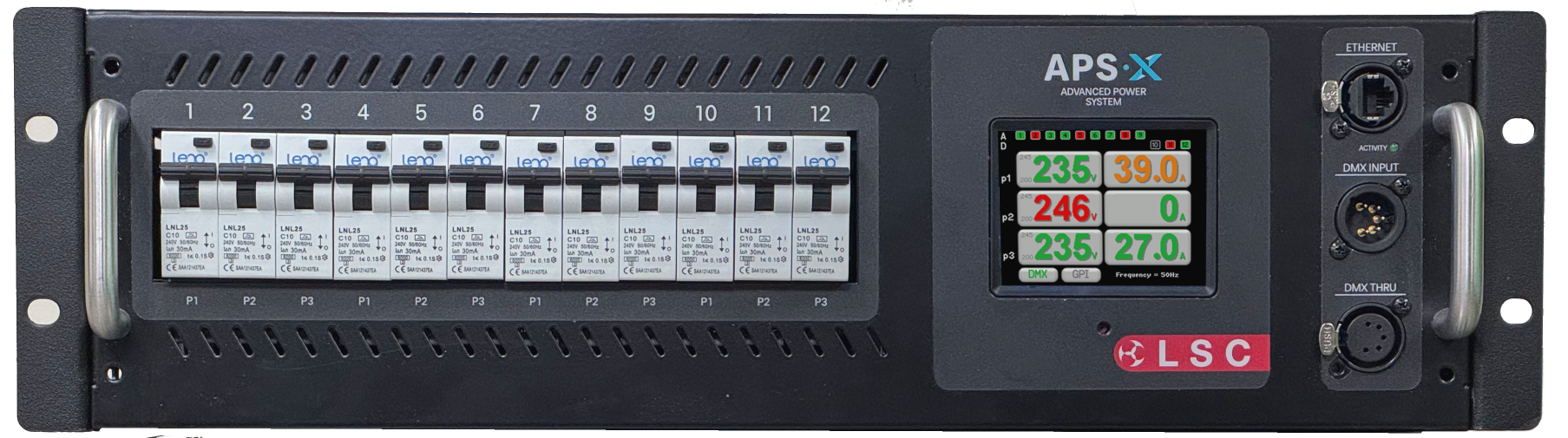

Front Panel	Touchscreen, DMX input, GPI input and RCBOs
Rear Panel	Output connectors and power input cable

Approvals	CE (European) and RCM (Australian) approved
Warranty	Two-year warranty
