LSC APS

Name: LSC APS
Brand: clearlightshows
SKU: APS12/10A
Availability: InStock

Configurable Power Distribution

Powering a large number of LED screen panels, audio amplifiers or moving lights can be problematic. The APS delivers an elegant solution by sequentially switching the outputs and controlling large inrush currents, earth leakages and overloads.

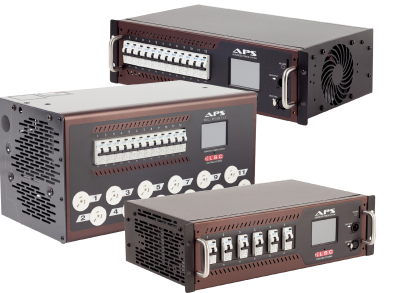

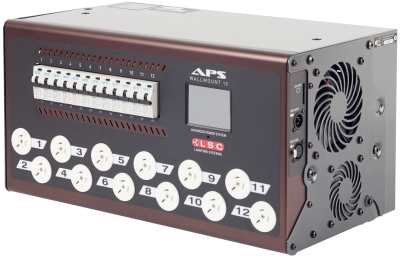

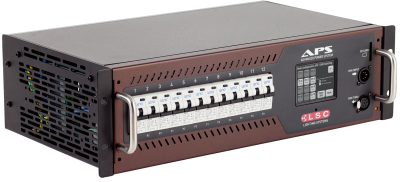

Available in Rackmount and Wallmount configurations

12 x 10A

12 x 16A

6 x 25A

LSC APS

Free

Product Specifications

Control

Display	3.2" colour LCD with touchscreen
Programming Mode	Programmable stand-alone mode via easy-to-use menus
DMX Input	DMX512 (1990) or DMX512-A (E1-11) with RDM (E1-20) functionality on 5-pin XLR connectors
GPI Input	Voltage free contact closure on 5-pin XLR connectors (using pins 1+4)

Download Manual

Related products
Recently viewed

12 Channel Protection Option 1	12 channel x 10A RCBO breakers with 30mA trip per channel
12 Channel Protection Option 2	12 channel x 16A RCBO breakers with 30mA trip per channel
6 Channel Protection	6 channel x 25A RCBO breakers with 30mA trip per channel
Neutral Protection	Dropped neutral protection with almost instant load disconnect
Start-up Time Delay	Programmable channel sequential start-up time delay
Cascading Start-up	Cascading start-up between multiple units
Voltage Cut-off	Programmable min and max voltage cut-off per phase

Main Display Monitoring	3-phase voltage and current levels monitoring on main display
RDM Protocol	Remote configuration and monitoring via RDM protocol
Software Monitoring	Remote configuration and monitoring via LSC's HOUSTON X software

Nominal Input	100-240V, 3-phase star, 50-60Hz (single-phase operation possible, 63A maximum)
Operating Range	Typically 90-260V, 45-65Hz
Power Connection	Hardwired models supplied with L1, L2, L3, N and E terminals
Cable Option 1	1.2m long H07 rubber 5 core x 6mm² cable (Export models without connector, Australian models with 32A 5-pin 3-phase plug)
Cable Option 2	1.2m long H07 rubber 5 core x 10mm² cable (Export models without connector, Australian models with 63A CeeForm 5-pin 3-phase plug)
Cable Option 3	1.2m long H07 rubber 5 core x 6mm² cable (Export models without connector, Australian models with 40A 5-pin 3-phase plug)

Dimensions	483mm (w) x 300mm (d) x 132mm (h)
Weight	11kg
Chassis	Full metal chassis with rear-screened polycarbonate labels

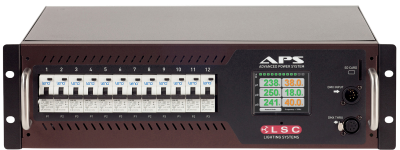

Front Panel	Touchscreen, DMX input, GPI input and RCBOs
Rear Panel	Output connectors and power input cable

Certifications	CE (European) and RCM (Australian) approved
Warranty	Two-year warranty
