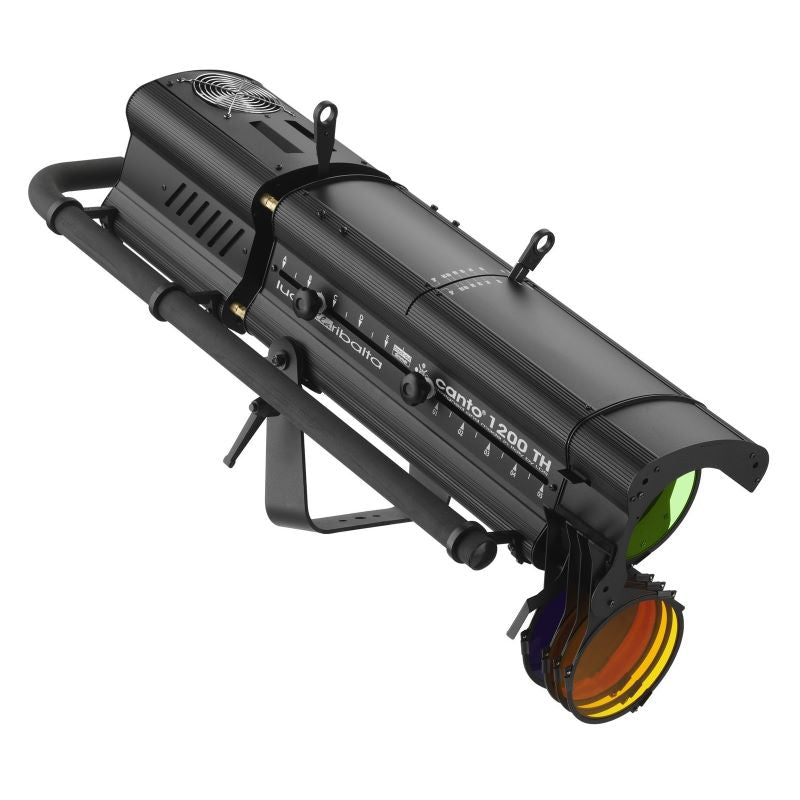

LDR Canto 1200 Tungsten MKII Follow Spot
Compact, short to medium throw 1200W tungsten‐halogen followspot. It features a large, user‐friendly side handle, strong mechanics and excellent optics. Standard delivery includes a colour frame, 20‐leaf iris diaphragm, mechanical dimmer, spigot and 2m mains cable. A large selection of accessories, including a 5‐colour colour changer, tripods and a flight‐case, is available for the Canto range Specials: also available in kit, including followspot, CP90 lamp, fitted colour changer, black tripod and flight case
LDR Canto 1200 Tungsten MKII Follow Spot
Free
Product Specifications
- Application & Performance ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Operational Specifications ›
- Accessories & Lamp Types ›
Application & Performance
| Beam Style | Well-defined, flat field profile projection |
| Suitable For | Small, medium scale theatre |
| Specification Level | Professional range |
| Beam Angle | 8° - 22° |
| Typical Throw Distance | 10 - 20m |
Electrical Specifications
| Supply Volts | 230/240V AC single phase |
| Max. Lamp Watts | 1200W |
| Lamp Base | GX9.5 |
| Auto-disconnect | Double-pole microswitch |
| Cable/Connection | 2m 3x1.5mm² flexible cable to bare ends |
| Standards Compliance | EN60598-2-17, CE marked |
Mechanical Specifications
| Paint/Finish | Epoxy powder paint, black or white |
| Lamp House Construction | Extruded aluminium and sheet steel |
| Reflector | 68mm diameter, glass |
| Optical System | Double condenser with variable zoom |
| Mounting & Suspension | Steel stirrup with 12mm centre hole and DIN mounting. Spigot for ø29mm tube supplied |
| Handle | Rear and side |
| Weight | 18kg |
| Packed Weight | 22.4kg |
| Packed Volume | 0.204m³ |
| Filter Cut Size | 185 x 185mm |
| Accessory Runners | 3 slots |
Operational Specifications
| Focus Adjustment | Slide zoom controls (dia/softness) at side |
| Lamp Alignment | Factory set |
| Beam Shaping | 20-leaf iris included; shutters are accessories |
| Dimming | By mains supply + optical dimmer iris included |
| Positional Adjustment | Lever tilt clamp |
| Lamp Access | Lowering base |
| Lens Access | Sliding panels beneath lamp tube |
Accessories & Lamp Types
| Colour Frame | Metal, 185 x 185mm, accessory |
| Lamp Types | 1200W CP90 3200K 240 hrs / T29 3000K 480 hrs |
| Beam Style | Well-defined, flat field profile projection |
| Suitable For | Small, medium scale theatre |
| Specification Level | Professional range |
| Beam Angle | 8° - 22° |
| Typical Throw Distance | 10 - 20m |
| Supply Volts | 230/240V AC single phase |
| Max. Lamp Watts | 1200W |
| Lamp Base | GX9.5 |
| Auto-disconnect | Double-pole microswitch |
| Cable/Connection | 2m 3x1.5mm² flexible cable to bare ends |
| Standards Compliance | EN60598-2-17, CE marked |
| Paint/Finish | Epoxy powder paint, black or white |
| Lamp House Construction | Extruded aluminium and sheet steel |
| Reflector | 68mm diameter, glass |
| Optical System | Double condenser with variable zoom |
| Mounting & Suspension | Steel stirrup with 12mm centre hole and DIN mounting. Spigot for ø29mm tube supplied |
| Handle | Rear and side |
| Weight | 18kg |
| Packed Weight | 22.4kg |
| Packed Volume | 0.204m³ |
| Filter Cut Size | 185 x 185mm |
| Accessory Runners | 3 slots |
| Focus Adjustment | Slide zoom controls (dia/softness) at side |
| Lamp Alignment | Factory set |
| Beam Shaping | 20-leaf iris included; shutters are accessories |
| Dimming | By mains supply + optical dimmer iris included |
| Positional Adjustment | Lever tilt clamp |
| Lamp Access | Lowering base |
| Lens Access | Sliding panels beneath lamp tube |
| Colour Frame | Metal, 185 x 185mm, accessory |
| Lamp Types | 1200W CP90 3200K 240 hrs / T29 3000K 480 hrs |
