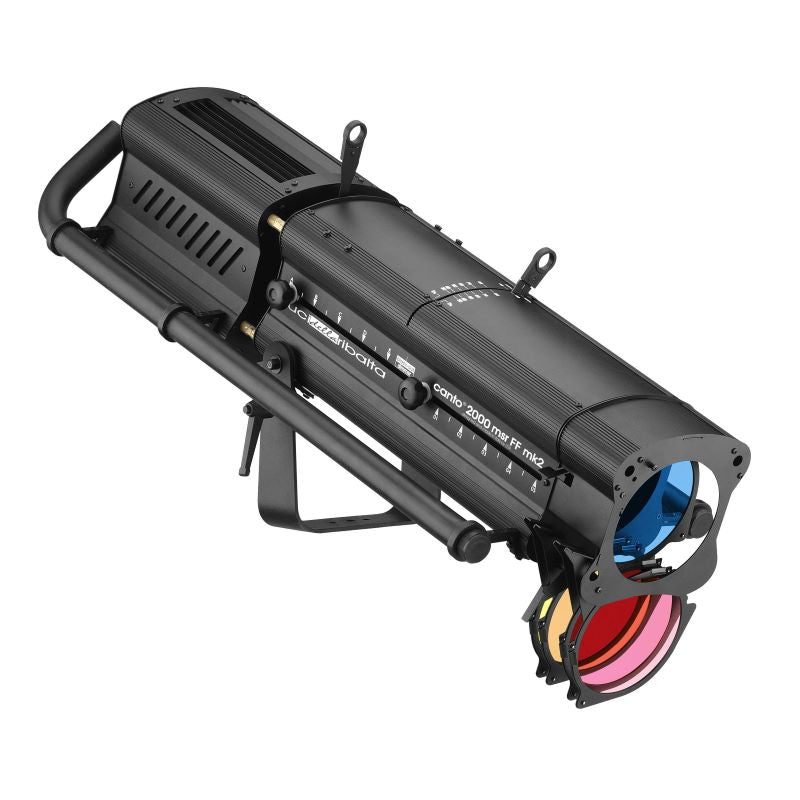

LDR Canto 2000 MSR Followspot
An extremely compact and powerful 2K discharge followspot, the Canto® 2000msr FF harnesses the power and flexibility of the Philips 2000msr FastFit lamps with LDR’s advanced optics and mechanics.
The result is a new-concept, efficient, lightweight and extremely powerful followspot, ideal for all long-throw applications.
Canto® 2000msr FF features the patented FastFit rear load lamp base system, which enables easy lamp replacement in difficult stage conditions. The MSR filling of the lamp guarantees pure, white light, whereas the short arc provides high beam intensity for professional entertainment lighting.
The Canto® 2000msd/msr kit includes:
- Canto® 2000msd/msr followspot complete with 20‐leaf iris, mechanical dimmer, separate electronic ballast unit and spigot.
- Philips MSR Gold 2000/2 FastFit ‐ PGJX50, 7500K 750 hours lamp
- Black or chrome‐plated tripod
- 5‐colour colour changer, fitted
LDR Canto 2000 MSR Followspot
Free
Product Specifications
- Application ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Operational Specifications ›
- Lamp Types ›
Application
| Beam Style | Well-defined, flat field profile projection |
| Suitable For | Large scale theatres, arenas, long-throw applications |
| Specification Level | Professional range |
| Beam Angle | 8° - 22° |
| Typical Throw Distance | 20 – 60m |
Electrical Specifications
| Supply Volts | 180/260V AC single phase to ballast unit |
| Max. Lamp Watts | 2000W |
| Lamp Base | PGJX50 FastFit |
| Ballast | External unit, electronic flicker-free ballast with separate pulse ignitor and on/off selector switch |
| Fuse | 20A, on ballast |
| Auto-disconnect | No |
| Cable/Connection | 2m multicore cable to ballast; 2m 3x2.5mm² bare ended cable to power |
| Standards Compliance | EN60598-2-17, CE marked |
Mechanical Specifications
| Paint/Finish | Epoxy powder paint, black |
| Lamp House Construction | Extruded aluminium and sheet steel |
| Reflector | 68mm diameter glass |
| Optical System | Double condenser with variable zoom |
| Mounting & Suspension | Steel stirrup with 12mm centre hole and DIN mounting. Spigot for ø29mm tube supplied |
| Control of Pan and Tilt | Two large rubber handles |
| Weight | 34 kg |
| Packed Weight | 70 kg |
| Packed Volume | 0.47m³ |
| Filter Cut Size | 185 x 185mm |
| Accessory Runners | 3 slots |
| Colour Frame | Metal, 185 x 185mm, accessory |
| Lamp Access | Removable side panel on the lamp-house |
| Lens Access | Sliding panels beneath lamp tube |
Operational Specifications
| Focus Adjustment | Slide zoom controls (dia./softness) at side |
| Lamp Alignment | Not requested |
| Beam Shaping | 20-leaf iris included; shutters: accessories |
| Dimming | Optical dimmer iris included |
| Positional Adjustment | Lever tilt clamp |
Lamp Types
| Lamp 1 | 2000W 7500K Philips 2000 MSR Gold/2 FastFit PGJX50 750 hrs |
| Lamp 2 | 2000W 6000K Philips 2000 MSR Gold FastFit PGJX50 750 hrs |
| Beam Style | Well-defined, flat field profile projection |
| Suitable For | Large scale theatres, arenas, long-throw applications |
| Specification Level | Professional range |
| Beam Angle | 8° - 22° |
| Typical Throw Distance | 20 – 60m |
| Supply Volts | 180/260V AC single phase to ballast unit |
| Max. Lamp Watts | 2000W |
| Lamp Base | PGJX50 FastFit |
| Ballast | External unit, electronic flicker-free ballast with separate pulse ignitor and on/off selector switch |
| Fuse | 20A, on ballast |
| Auto-disconnect | No |
| Cable/Connection | 2m multicore cable to ballast; 2m 3x2.5mm² bare ended cable to power |
| Standards Compliance | EN60598-2-17, CE marked |
| Paint/Finish | Epoxy powder paint, black |
| Lamp House Construction | Extruded aluminium and sheet steel |
| Reflector | 68mm diameter glass |
| Optical System | Double condenser with variable zoom |
| Mounting & Suspension | Steel stirrup with 12mm centre hole and DIN mounting. Spigot for ø29mm tube supplied |
| Control of Pan and Tilt | Two large rubber handles |
| Weight | 34 kg |
| Packed Weight | 70 kg |
| Packed Volume | 0.47m³ |
| Filter Cut Size | 185 x 185mm |
| Accessory Runners | 3 slots |
| Colour Frame | Metal, 185 x 185mm, accessory |
| Lamp Access | Removable side panel on the lamp-house |
| Lens Access | Sliding panels beneath lamp tube |
| Focus Adjustment | Slide zoom controls (dia./softness) at side |
| Lamp Alignment | Not requested |
| Beam Shaping | 20-leaf iris included; shutters: accessories |
| Dimming | Optical dimmer iris included |
| Positional Adjustment | Lever tilt clamp |
| Lamp 1 | 2000W 7500K Philips 2000 MSR Gold/2 FastFit PGJX50 750 hrs |
| Lamp 2 | 2000W 6000K Philips 2000 MSR Gold FastFit PGJX50 750 hrs |
