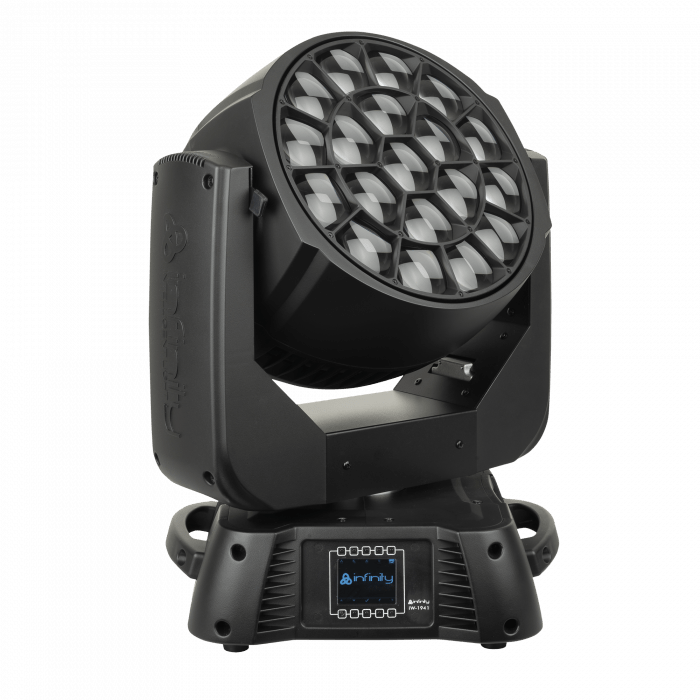

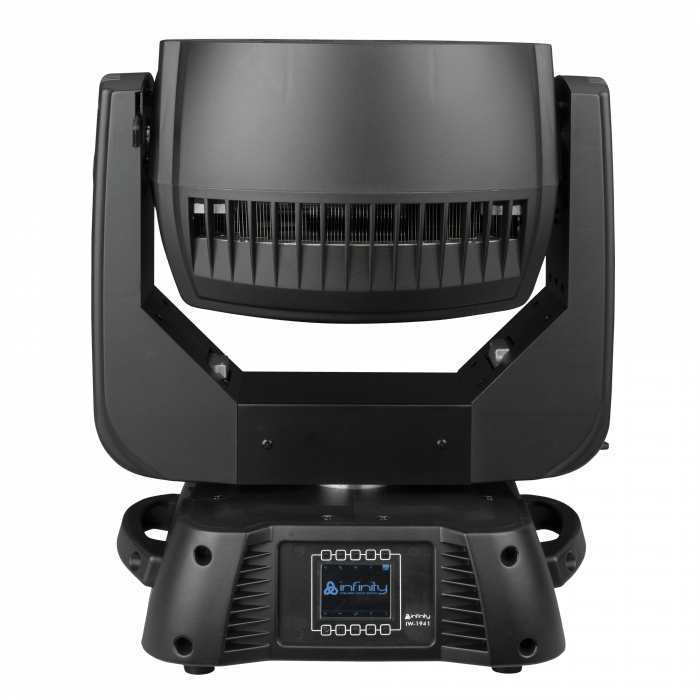

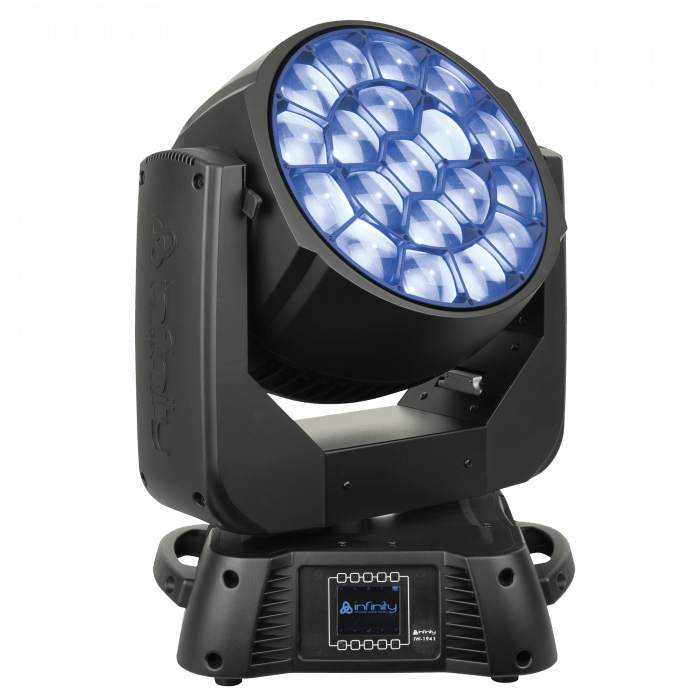

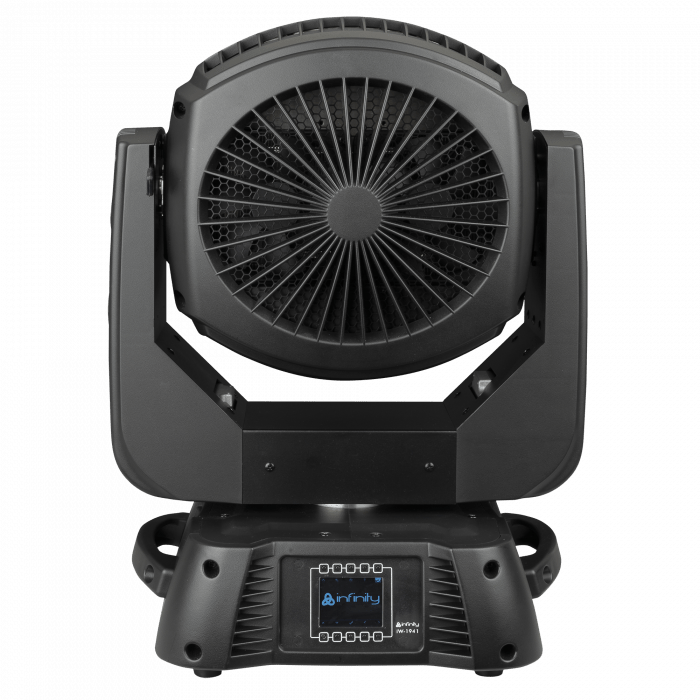

Infinity iW-1941 RDM
The Infinity iW-1941 RDM moving head wash light with a motorised zoom, creating a beam from 3.6° to 60°, produces a massive output due to the use of 19 RGBW 40 W Osram LEDs, while the silent fan ensures whisper-quiet operation. Individual pixels are controlled via DMX, Art-Net or RDM. Equipped with features like adjustable pan/tilt range, multiple dimming settings RGBW/CMY option, 0 - 20Hz strobe and various operating modes, the iW-1941 RDM is a formidable unit in any setup or situation. The iW-1941 RDM combines very fast movements, a wide zoom range and a powerful output to create spectacular light effects.
Weight (kg): 23.28
Length (m) : 0.565
Width (m) : 0.41
Height (m): 0.512
Infinity iW-1941 RDM
Free
Product Specifications
- Source ›
- Optical ›
- Control and Programming ›
- Dynamic Effects ›
- Movement ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Product Properties ›
- Thermal Specifications ›
- Included Items ›
Source
| Light Source Type | LED |
| Light Source Quantity | 19 |
| Light Source Power | 40 W |
| LED Colour Type | RGBW |
| Refresh Rate (Max.) | 15 kHz |
| Illuminance @ 3 m | 101571 lx |
| Luminous Flux (Total) | 8742 lm |
| Luminous Flux (Red) | 1982 lm |
| Luminous Flux (Green) | 3227 lm |
| Luminous Flux (Blue) | 1077 lm |
| Luminous Flux (White) | 4501 lm |
| CRI | 78 |
Optical
| Beam Angle Minimum (Circular) | 3.6° |
| Beam Angle Maximum (Circular) | 60° |
| Zoom Type | Motorised |
| Zoom Minimum | 3.6° |
| Zoom Maximum | 60° |
Control and Programming
| Control Mode | Auto, DMX, Master Slave |
| DMX Channels | 25, 177, 76 Art-Net + 13 DMX |
| Protocols | Art-Net, DMX, RDM |
| Wireless | Optional |
| Display | Touch |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Zone Control (Sections) | 19 |
| Dimmer Resolution | 16-bit |
Dynamic Effects
| Dimmer | 0-100% |
| Strobe | 0-20 Hz |
Movement
| Pan | 540° |
| Tilt | 270° |
| Pan/Tilt Resolution | 16-bit |

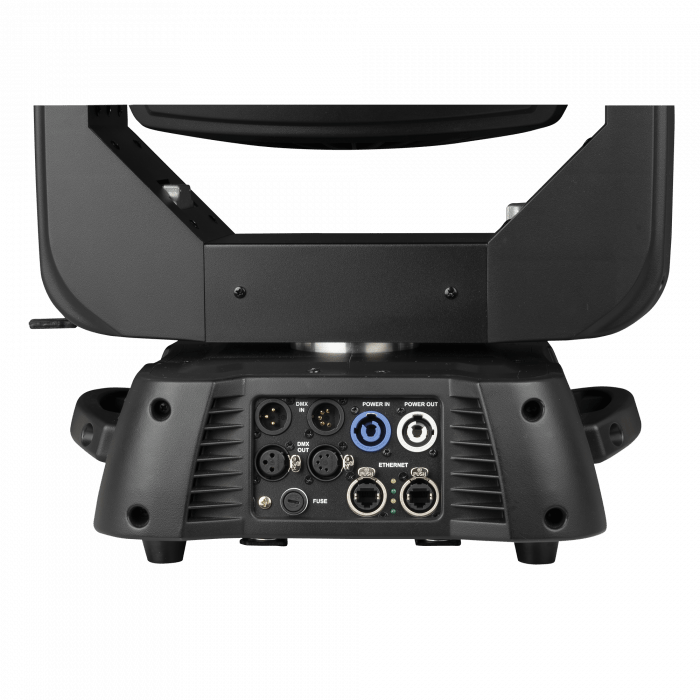

Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 625 W |
| Fuse | 10 A |
| Power Connector In | powerCON Blue |
| Power Connector Out | powerCON Grey |
| DMX Connector | XLR 3P In/Out, XLR 5P In/Out |
| DMX Connector In | XLR 3P, XLR 5P |
| DMX Connector Out | XLR 3P, XLR 5P |
| Data Connector In | RJ45 |
| Data Connector Out | RJ45 |
Mechanical Specifications
| Length (mm) | 365 mm (14.37″) |
| Width (mm) | 304 mm (11.969″) |
| Height (mm) | 468 mm (18.425″) |
| Weight | 19.26 kg (42.461 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal, Plastic |
| Colour | Black |
Product Properties
| Cooling | Axial fan |
| Safety Attachment | Yes |
| Max Surface Temp | 80 °C (176 °F) |
Thermal Specifications
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -5 °C (23 °F) |
| Maximum Surface Temperature | 80 °C (176 °F) |
Included Items
| Included Cables | None |
| Included Rigging | Quick-Lock Bracket |
| Light Source Type | LED |
| Light Source Quantity | 19 |
| Light Source Power | 40 W |
| LED Colour Type | RGBW |
| Refresh Rate (Max.) | 15 kHz |
| Illuminance @ 3 m | 101571 lx |
| Luminous Flux (Total) | 8742 lm |
| Luminous Flux (Red) | 1982 lm |
| Luminous Flux (Green) | 3227 lm |
| Luminous Flux (Blue) | 1077 lm |
| Luminous Flux (White) | 4501 lm |
| CRI | 78 |
| Beam Angle Minimum (Circular) | 3.6° |
| Beam Angle Maximum (Circular) | 60° |
| Zoom Type | Motorised |
| Zoom Minimum | 3.6° |
| Zoom Maximum | 60° |
| Control Mode | Auto, DMX, Master Slave |
| DMX Channels | 25, 177, 76 Art-Net + 13 DMX |
| Protocols | Art-Net, DMX, RDM |
| Wireless | Optional |
| Display | Touch |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Zone Control (Sections) | 19 |
| Dimmer Resolution | 16-bit |
| Dimmer | 0-100% |
| Strobe | 0-20 Hz |
| Pan | 540° |
| Tilt | 270° |
| Pan/Tilt Resolution | 16-bit |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 625 W |
| Fuse | 10 A |
| Power Connector In | powerCON Blue |
| Power Connector Out | powerCON Grey |
| DMX Connector | XLR 3P In/Out, XLR 5P In/Out |
| DMX Connector In | XLR 3P, XLR 5P |
| DMX Connector Out | XLR 3P, XLR 5P |
| Data Connector In | RJ45 |
| Data Connector Out | RJ45 |
| Length (mm) | 365 mm (14.37″) |
| Width (mm) | 304 mm (11.969″) |
| Height (mm) | 468 mm (18.425″) |
| Weight | 19.26 kg (42.461 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal, Plastic |
| Colour | Black |
| Cooling | Axial fan |
| Safety Attachment | Yes |
| Max Surface Temp | 80 °C (176 °F) |
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -5 °C (23 °F) |
| Maximum Surface Temperature | 80 °C (176 °F) |
| Included Cables | None |
| Included Rigging | Quick-Lock Bracket |
