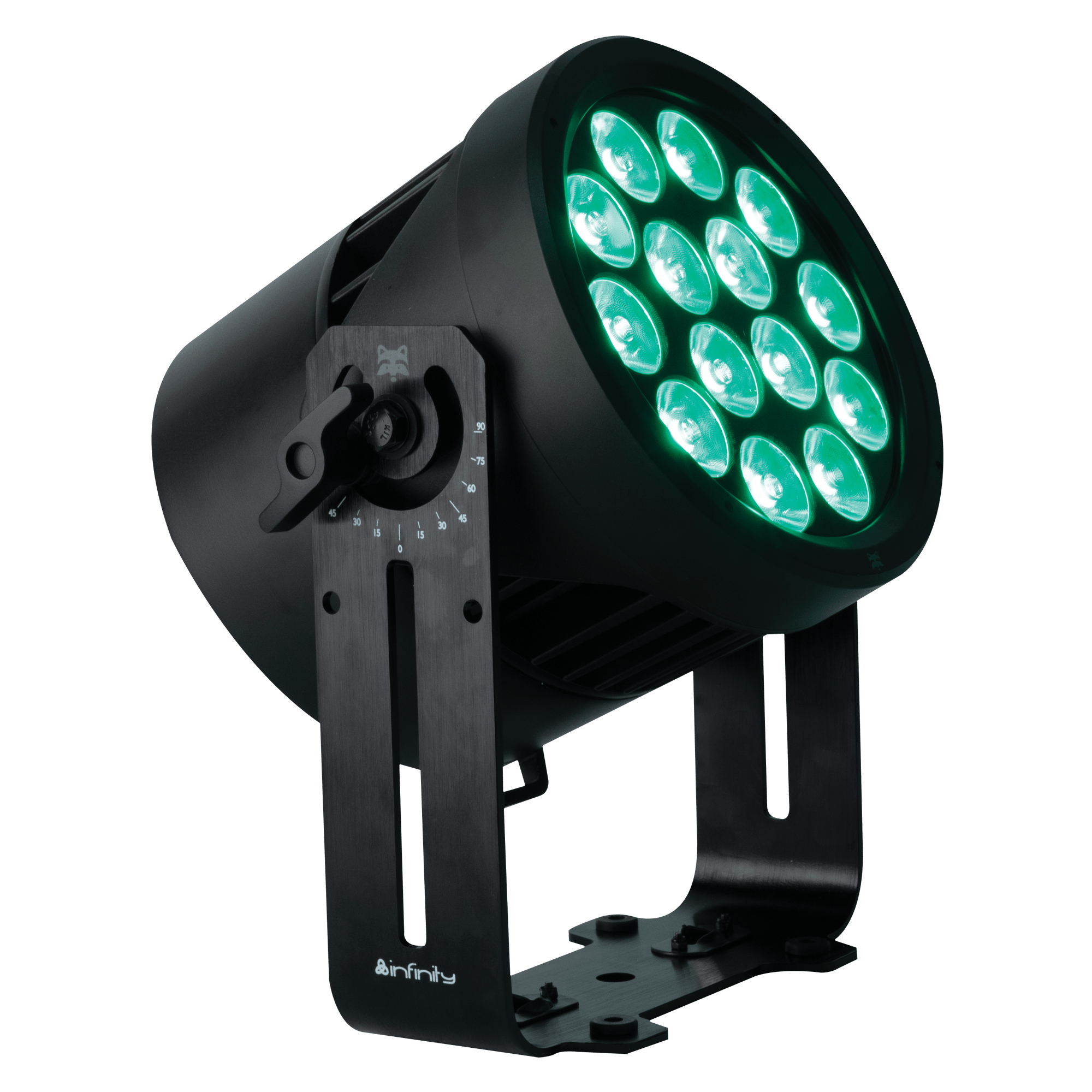

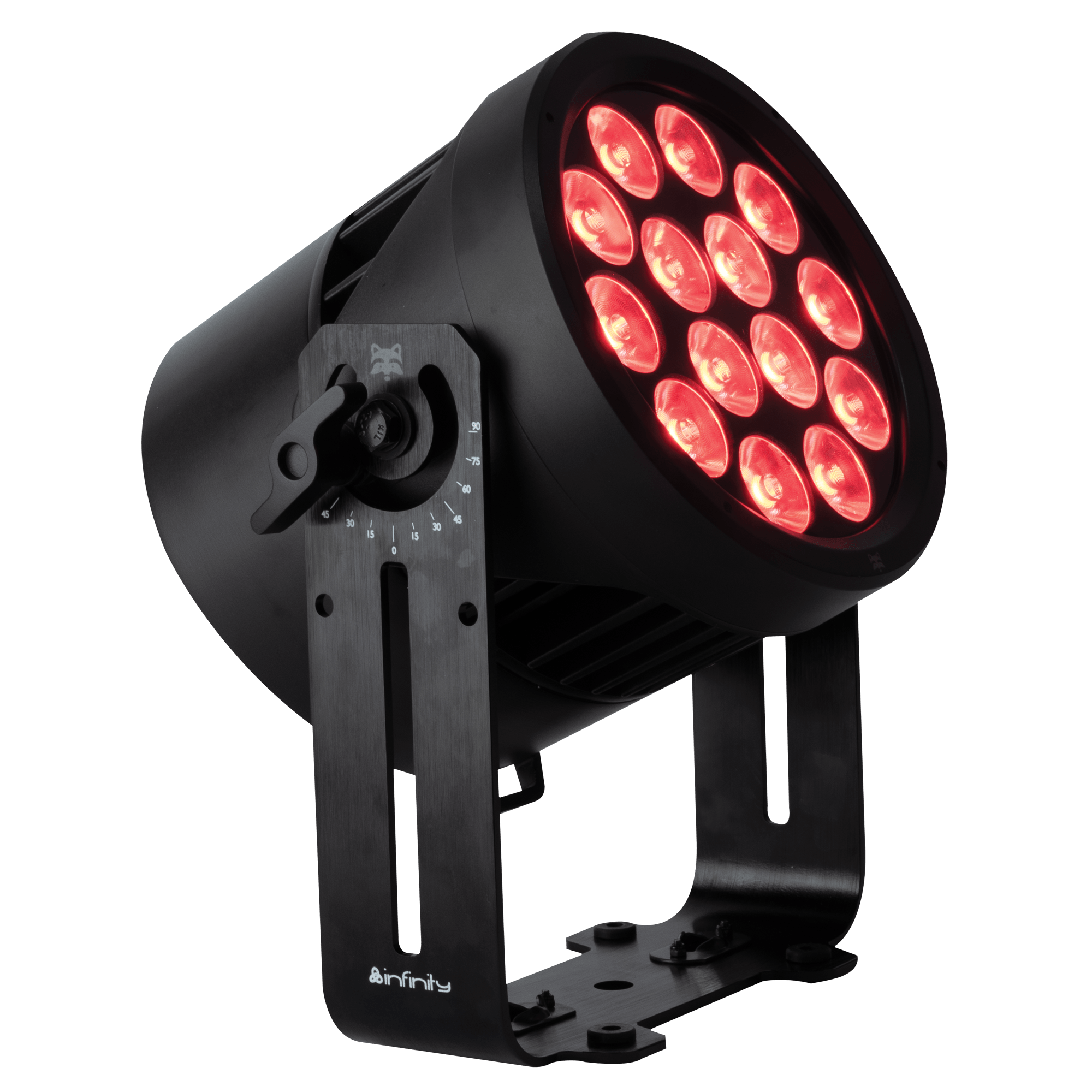

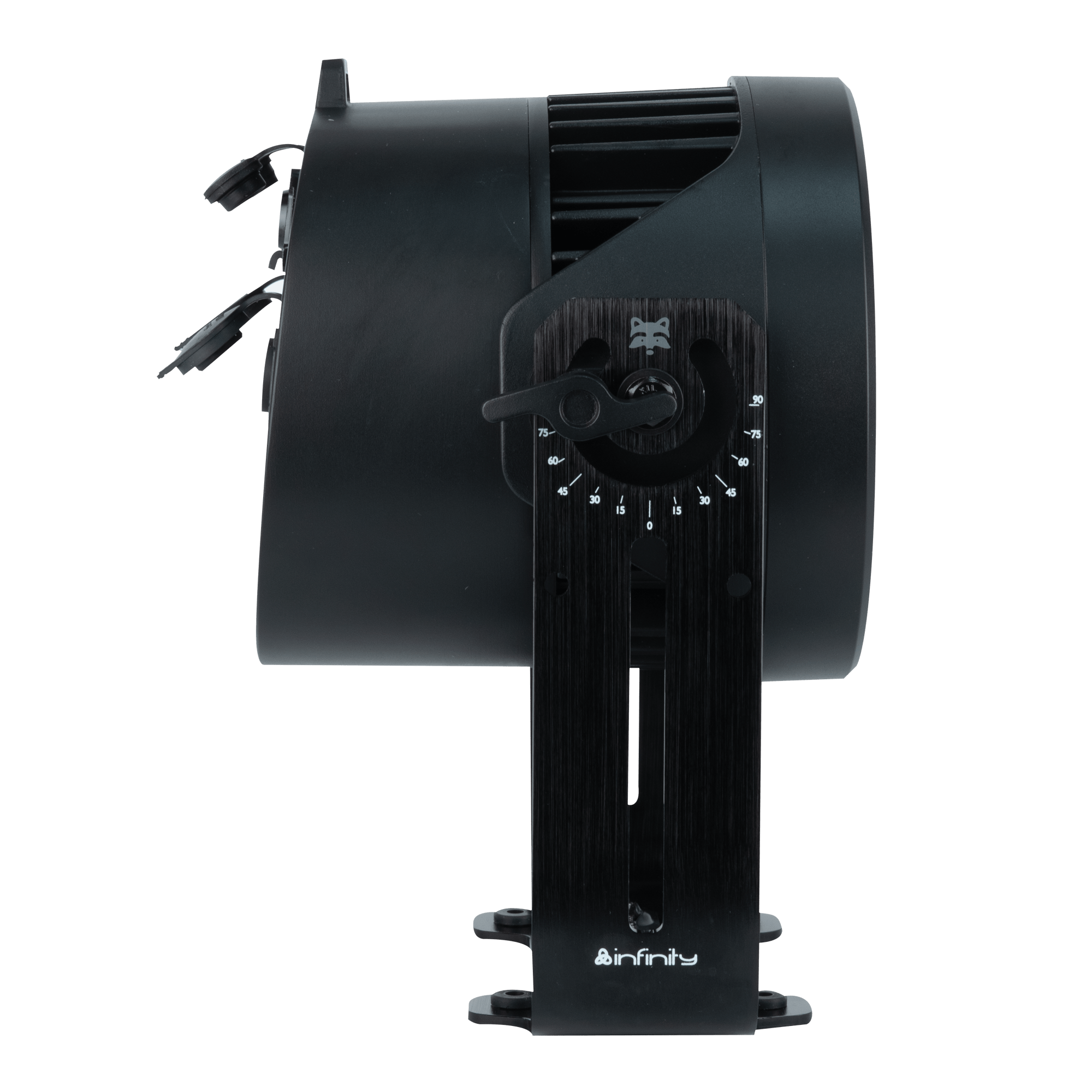

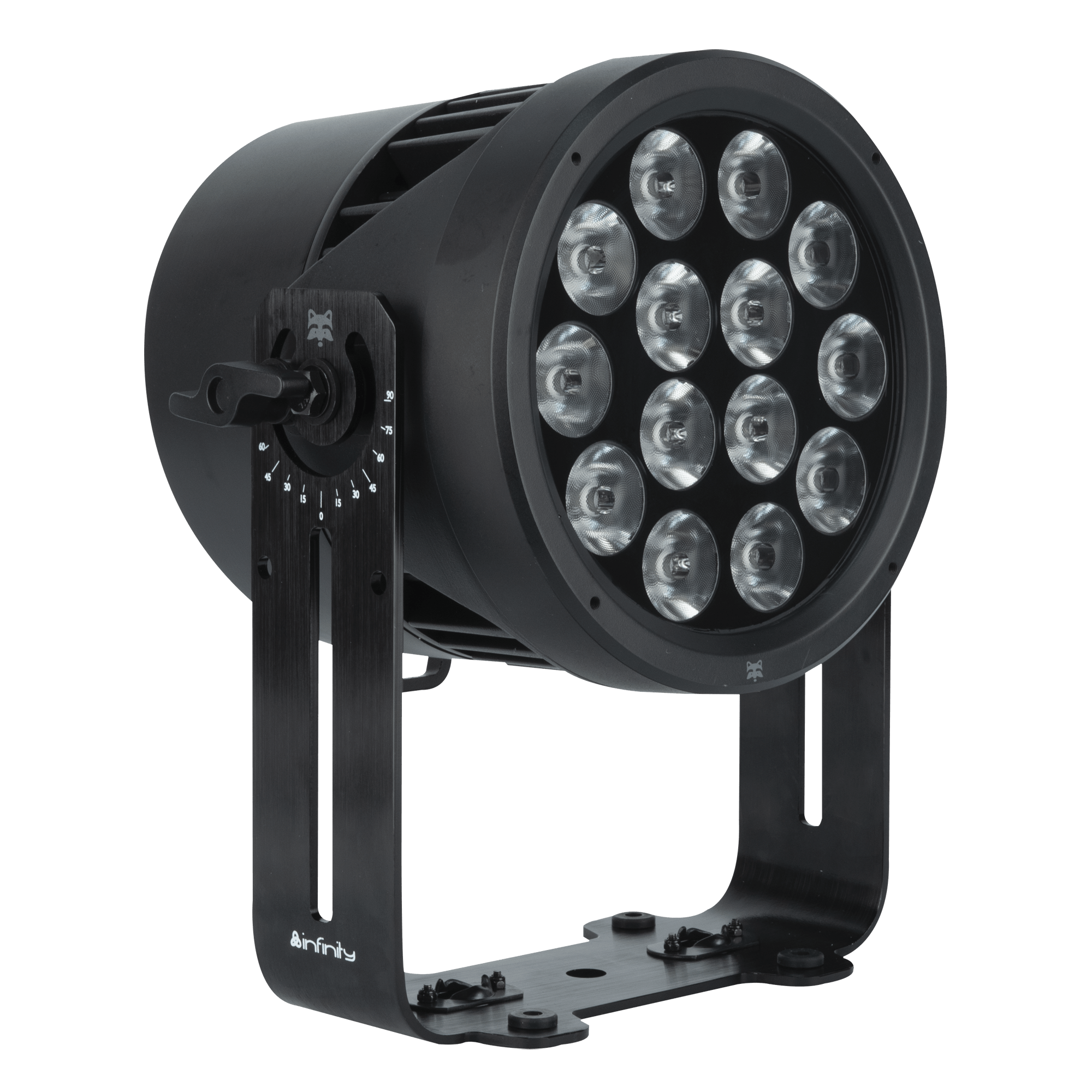

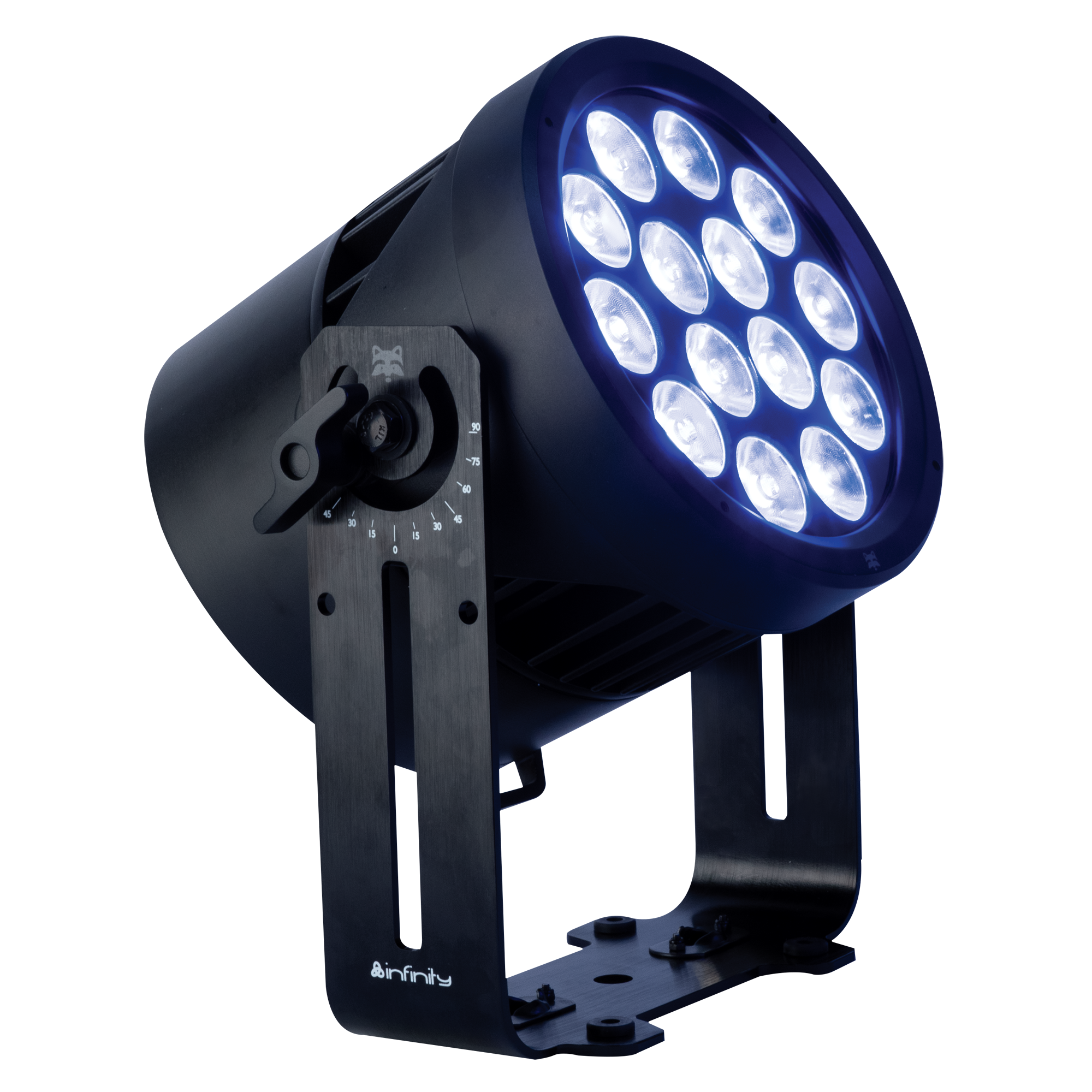

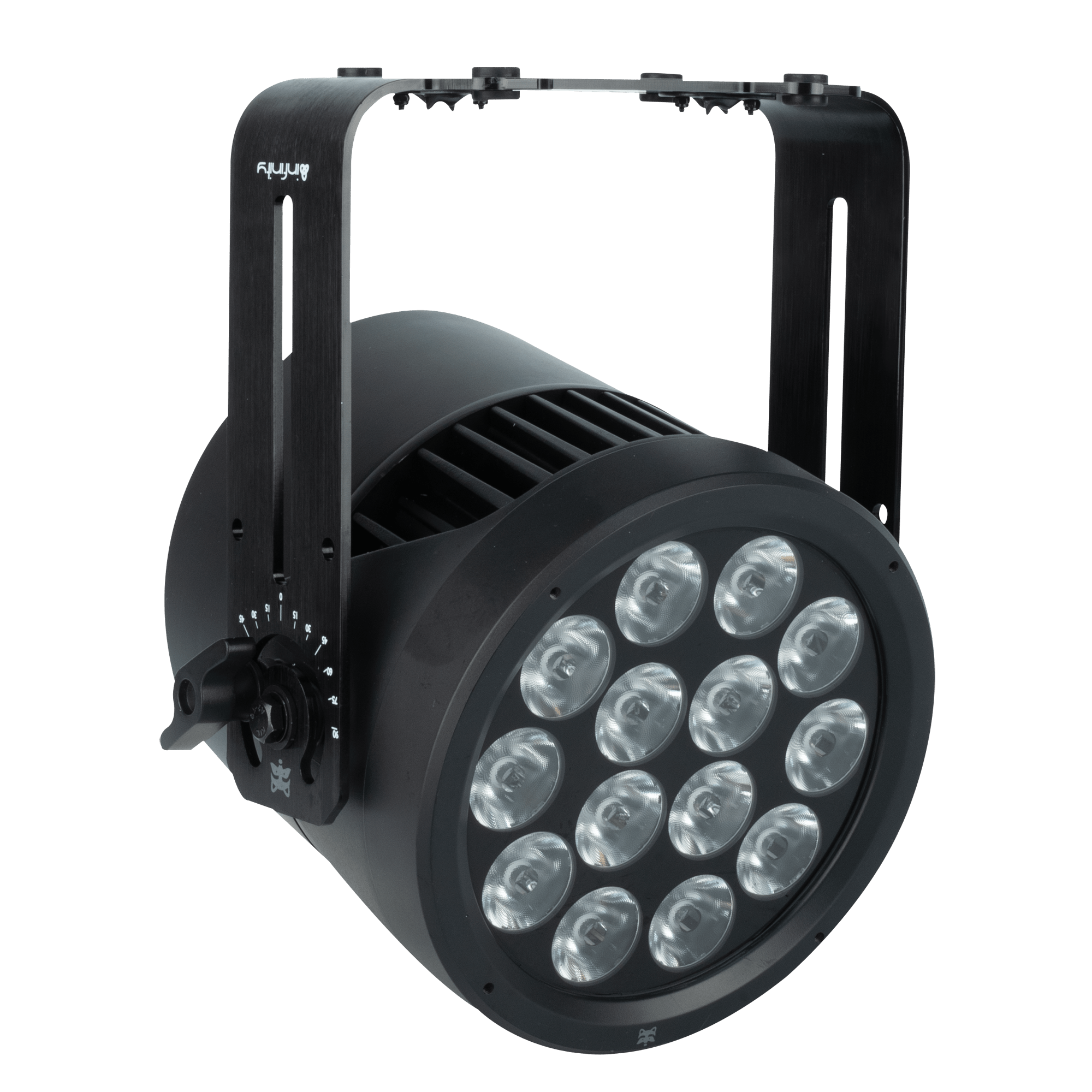

Infinity Raccoon P14/4
The Raccoon P14/4 is a high-brightness, high-CRI, IP65-rated Par designed for rental and professional applications demanding superior light output and colour quality. Features 14 ultra-bright LEDs with red, green, blue, and mint channels, switchable between maximum brightness and high-CRI modes.
Equipped with a calibrated colour engine ensuring outstanding colour stability and consistency. xy control mode technology delivers accurate colours in all conditions, while continuous LED temperature compensation prevents colour shift during operation. Matches Infinity Signature series calibration standards.
Offers five dimmer curves including Tungsten shift simulation, plus internal CCT, RGB, and Lee filter management. Control via DMX, RDM, xy mode, or manual operation. Adjustable PWM frequency (640 Hz–25 kHz) ensures flicker-free camera images. Network settings can be copied across fixtures for identical behaviour.

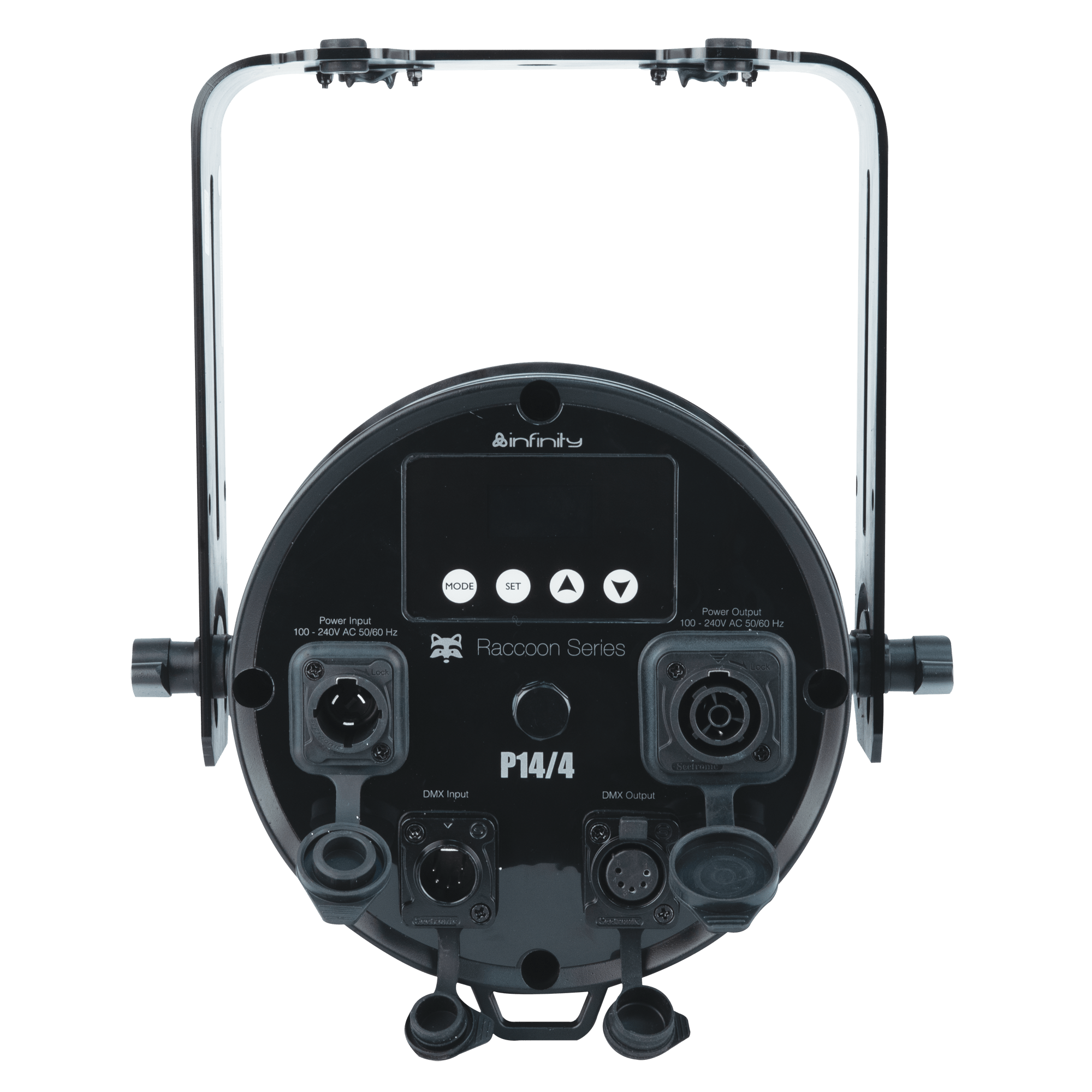

IP65-compliant with 5P XLR DMX and Power Pro True connectors. Includes barndoors, top hat, filter frames, and diffusion filters. A versatile, high-end par solution.
- High-brightness (5873 lm) and high-quality (CRI >87) modes
- Accurate and stable colours due to software calibration
- Advanced XY, RGB, CMY, and HSI colour mixing technology and pre-set gel colours
- Ultra-smooth dimming with five dimmer curves, including tungsten
- IP65 rated
Infinity Raccoon P14/4
Free
Product Specifications
- Light Source ›
- Photometric Specifications ›
- Optical ›
- Control and Programming ›
- Dynamic Effects ›
- Electrical Specifications ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Rigging and Included Items ›
Light Source
| Light Source Type | LED |
| Light Source Quantity | 14 |
| Light Source Power | 15 W |
| LED Colour Type | R, G, B, M |
| Life Expectancy | 30000 h |
Photometric Specifications
| Refresh Rate (Max.) | 25 kHz |
| Illuminance @ 2 m | 27283 lx |
| Illuminance @ 3 m | 12126 lx |
| Illuminance @ 5 m | 4365 lx |
| Luminous Flux (Total) | 5873 lm |
| Luminous Flux (Red) | 1313 lm |
| Luminous Flux (Green) | 2412 lm |
| Luminous Flux (Blue) | 612 lm |
| Luminous Flux (Mint) | 3084 lm |
| CRI | 87 |
| Minimum CCT | 2000 K |
| Maximum CCT | 8000 K |
Optical
| Beam Angle (Circular) | 10 ° |
Control and Programming
| Control Mode | DMX, Manual, Static Dimmer |
| DMX Channels | 1, 3, 8, 10, 12 |
| Protocols | DMX, RDM |
| Display | OLED |
Dynamic Effects
| Dimmer | 0-100 % |
| Strobe | 0-25 Hz |
Electrical Specifications
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 165 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
Mechanical Specifications
| Length | 191 mm (7.52″) |
| Width | 262 mm (10.315″) |
| Height | 304 mm (11.969″) |
| Weight | 5.5 kg (12.125 lb) |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
Thermal Specifications
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |

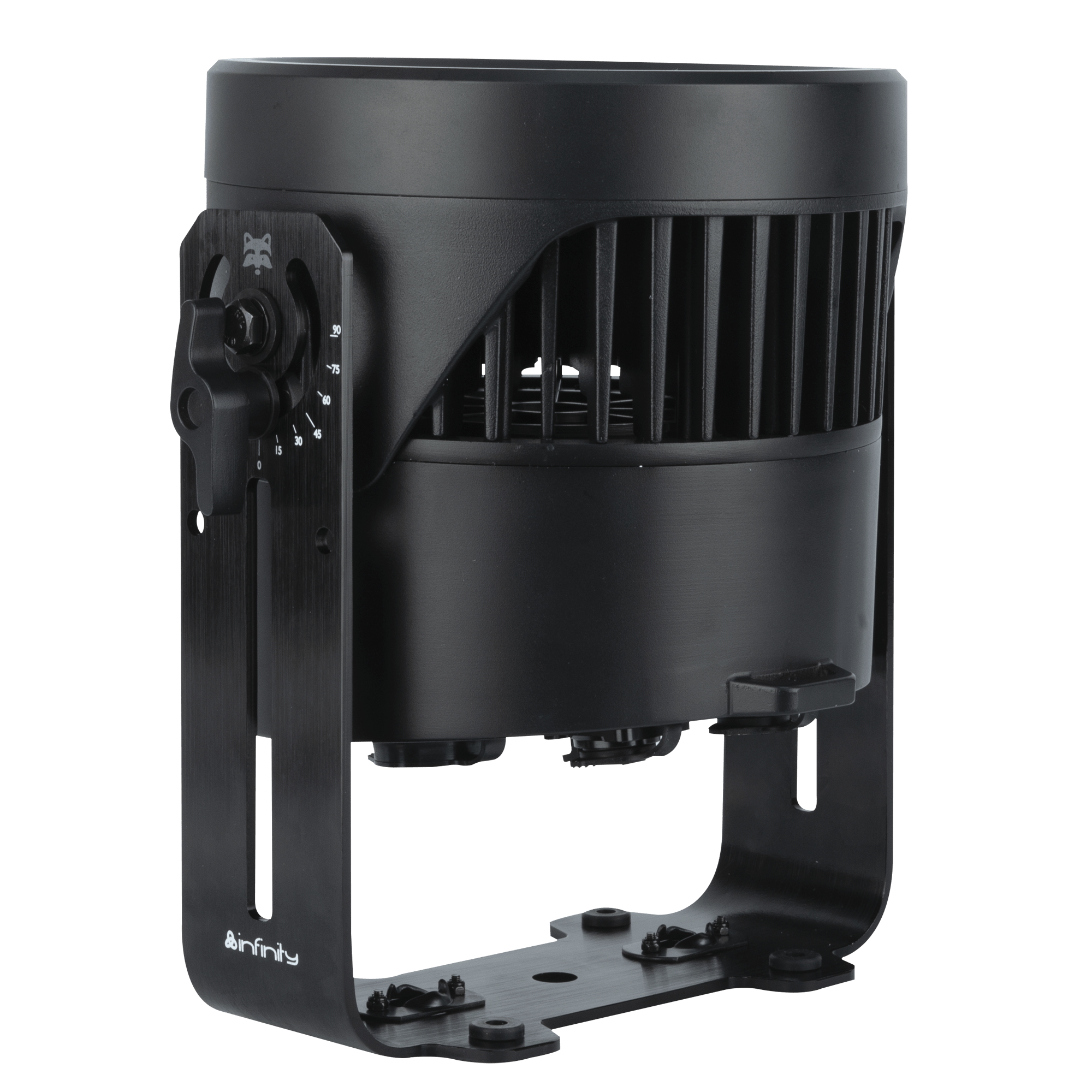

| Cooling | Convection |
Rigging and Included Items

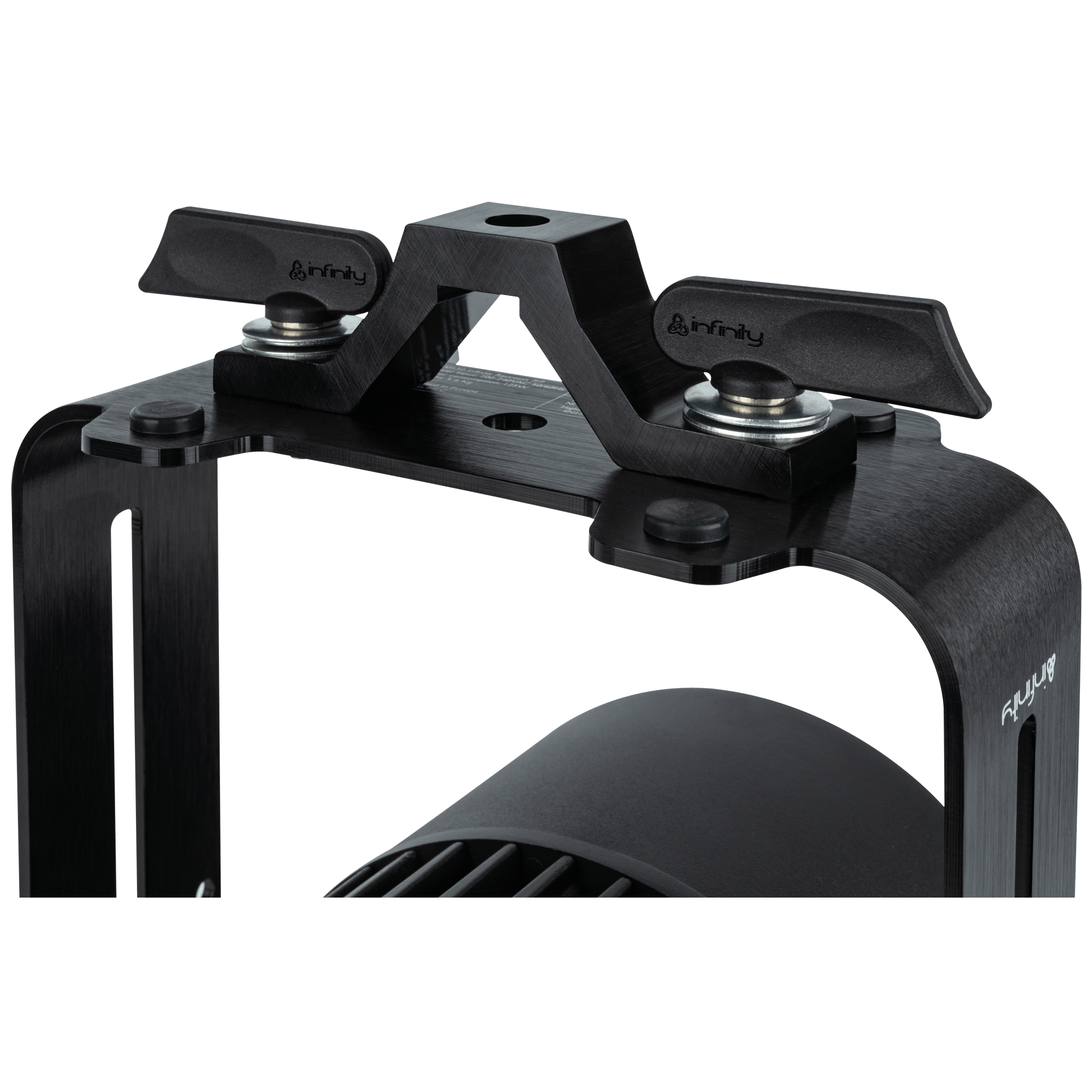

| Mounting Options | Clamp, Quick-Lock |
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket |
| Light Source Type | LED |
| Light Source Quantity | 14 |
| Light Source Power | 15 W |
| LED Colour Type | R, G, B, M |
| Life Expectancy | 30000 h |
| Refresh Rate (Max.) | 25 kHz |
| Illuminance @ 2 m | 27283 lx |
| Illuminance @ 3 m | 12126 lx |
| Illuminance @ 5 m | 4365 lx |
| Luminous Flux (Total) | 5873 lm |
| Luminous Flux (Red) | 1313 lm |
| Luminous Flux (Green) | 2412 lm |
| Luminous Flux (Blue) | 612 lm |
| Luminous Flux (Mint) | 3084 lm |
| CRI | 87 |
| Minimum CCT | 2000 K |
| Maximum CCT | 8000 K |
| Beam Angle (Circular) | 10 ° |
| Control Mode | DMX, Manual, Static Dimmer |
| DMX Channels | 1, 3, 8, 10, 12 |
| Protocols | DMX, RDM |
| Display | OLED |
| Dimmer | 0-100 % |
| Strobe | 0-25 Hz |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 165 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Length | 191 mm (7.52″) |
| Width | 262 mm (10.315″) |
| Height | 304 mm (11.969″) |
| Weight | 5.5 kg (12.125 lb) |
| IP Rating | IP65 |
| Housing | Aluminium die-cast |
| Colour | Black |
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Cooling | Convection |
| Mounting Options | Clamp, Quick-Lock |
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket |
