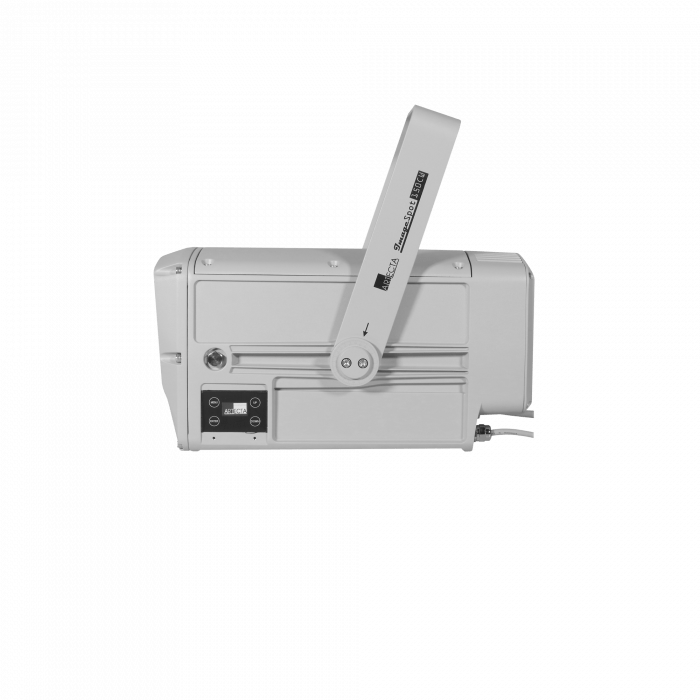

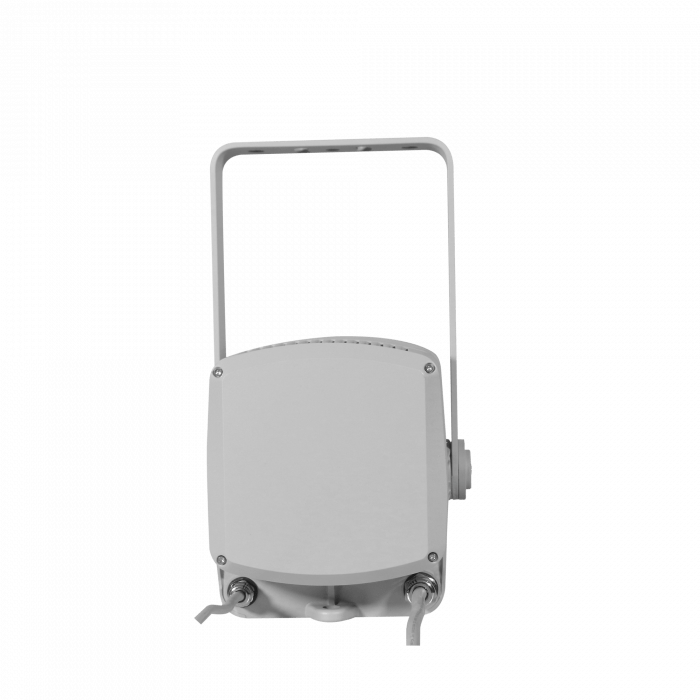

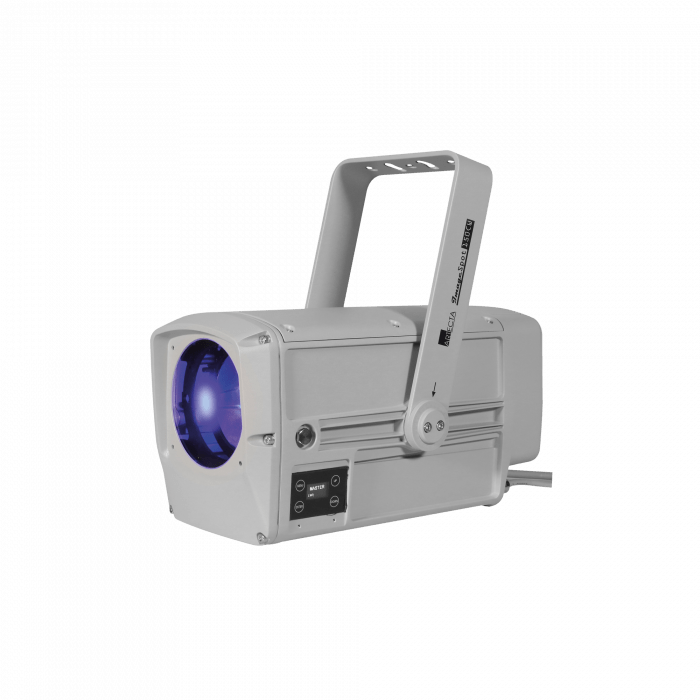

Artecta Image Spot 150 CW
The Artecta Image Spot 150 CW is a 150 watt gobo projector spot in an IP66 die-cast aluminium housing, suitable for indoor and outdoor applications such as theme parks, playgrounds and façade lighting. It has 4 bi-directional gobos + open and a colour wheel with 5 colours + open. A 4-facet bi-rotational prism with speed control and a frost filter allow you to create colourful dynamic effects. It has Focus and Zoom (20° to 40°) and multiple scenes can be programmed and played back via a sequence or programme for stand-alone use. The Image Spot 150 CW can be controlled via DMX and is RDM compatible. Power and DMX input cables are included.
Weight (kg): 10.2
Length (m) : 0.51
Width (m) : 0.27
Height (m): 0.27
Artecta Image Spot 150 CW
Free
Product Specifications
- Source ›
- Control and Programming ›
- Dynamic Effects ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Thermal Specifications ›
- Included Items ›
Source
| Light Source Type | LED |
| Light Source Quantity | 1 |
| Light Source Power | 150 W |
| LED Colour Type | CW |
Control and Programming
| Control Mode | Built-in Program, DMX, Manual, Stand Alone |
| DMX Channels | 11, 24 |
| Protocols | DMX, RDM |
| Dimmable | Yes |
Dynamic Effects
| Gobo Size | 28.79 mm (1.134″) |
| Image Diameter | 22.32 mm (0.879″) |
Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 170 W |
| Power Connector In | Dedicated IP65 Powerconnection |
| Power Connector Out | Dedicated IP65 Powerconnection |
| DMX Connector In | Dedicated 3P IP65 |
| DMX Connector Out | Dedicated 3P IP65 |
| Cable Length | 1.5 m |
| Driver | Built-in |
Mechanical Specifications
| Length (mm) | 454 mm (17.874″) |
| Width (mm) | 201 mm (7.913″) |
| Height (mm) | 206 mm (8.11″) |
| Weight | 9.2 kg (20.283 lb) |
| IP Rating | IP66 |
| Material | ABS, Aluminium |
| Housing | Aluminium die-cast |
| Finish | Powder Coating |
| Colour | Gray |
Thermal Specifications
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Ambient Temperature | -20 °C (-4 °F) |
Included Items

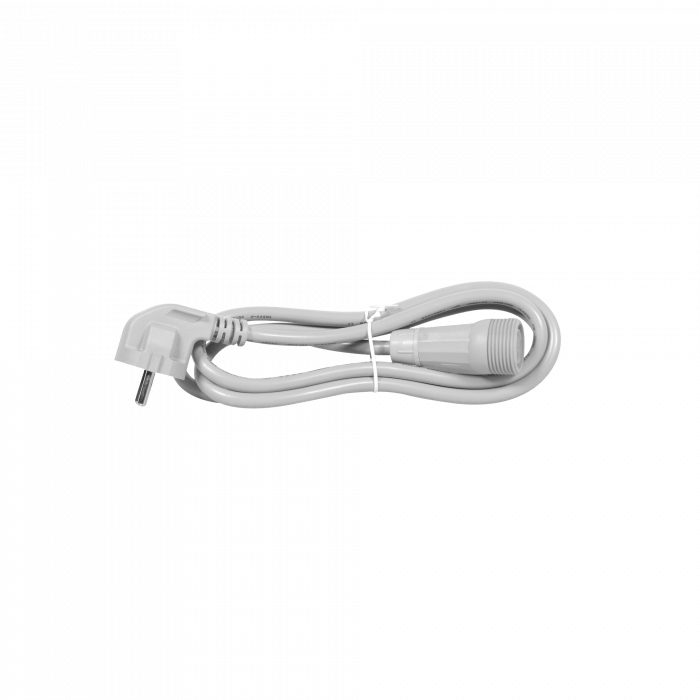

| Included Cables | Dedicated Powerconnection, XLR 3P |
| Light Source Type | LED |
| Light Source Quantity | 1 |
| Light Source Power | 150 W |
| LED Colour Type | CW |
| Control Mode | Built-in Program, DMX, Manual, Stand Alone |
| DMX Channels | 11, 24 |
| Protocols | DMX, RDM |
| Dimmable | Yes |
| Gobo Size | 28.79 mm (1.134″) |
| Image Diameter | 22.32 mm (0.879″) |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 170 W |
| Power Connector In | Dedicated IP65 Powerconnection |
| Power Connector Out | Dedicated IP65 Powerconnection |
| DMX Connector In | Dedicated 3P IP65 |
| DMX Connector Out | Dedicated 3P IP65 |
| Cable Length | 1.5 m |
| Driver | Built-in |
| Length (mm) | 454 mm (17.874″) |
| Width (mm) | 201 mm (7.913″) |
| Height (mm) | 206 mm (8.11″) |
| Weight | 9.2 kg (20.283 lb) |
| IP Rating | IP66 |
| Material | ABS, Aluminium |
| Housing | Aluminium die-cast |
| Finish | Powder Coating |
| Colour | Gray |
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Ambient Temperature | -20 °C (-4 °F) |
| Included Cables | Dedicated Powerconnection, XLR 3P |
