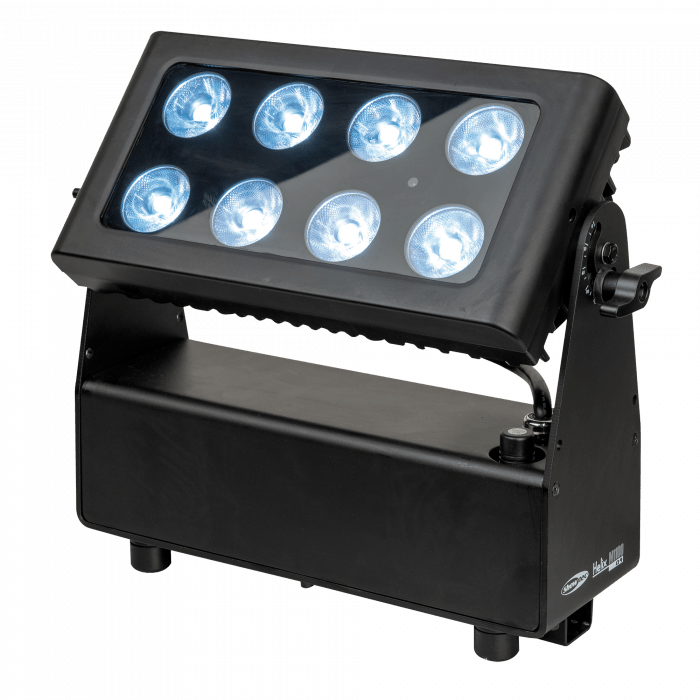

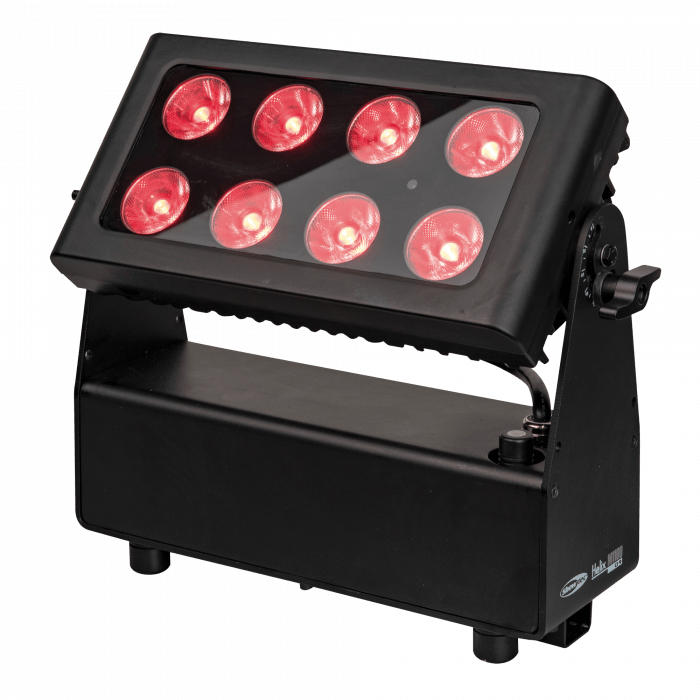

Showtec Helix M1100 Q4 Mobile

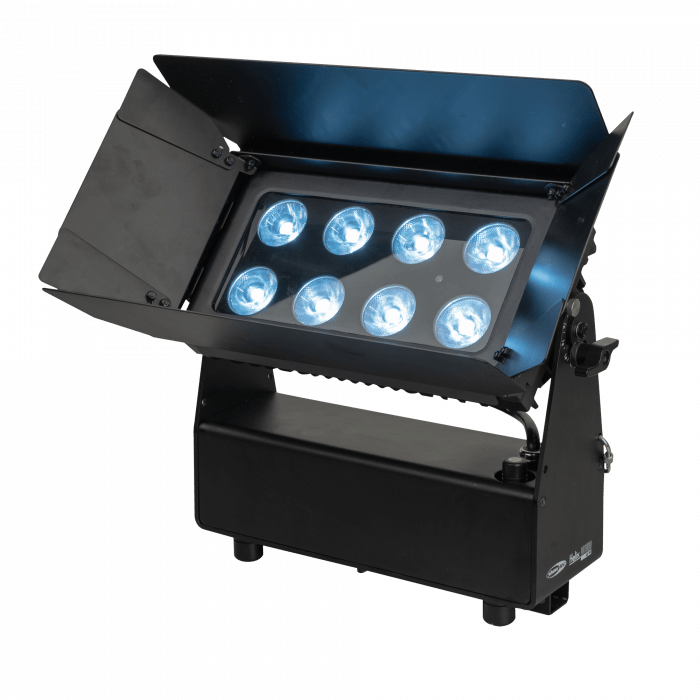

The Showtec Helix M1100 Q4 Mobile is a battery-powered, 8x 10 W RGBW LED Wash with IP65 rating, suitable for mobile indoor and temporary outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60°, or 90° beam angle by using optionally available dedicated beam shapers. Equipped with a rechargeable lithium-ion battery, the Helix M1100 Q4 Mobile will operate up to 15 hours without charging. The tilt angle can be manually adjusted over 180° and the unit can be controlled via CRMX (wireless), DMX, Master/Slave, Manual, and Auto mode, and has many built-in programs. The wireless connection uses CRMX and is compatible with older fixtures using W-DMX (G3 or G4).
It has an emergency backup function, which switches the output to 4000 K white at maximum brightness in case the mains power drops. Its delayed output function allows you to program the unit and have it start later, saving precious battery runtime. This can be very helpful when setting up mid-day and having it turn on automatically at night. The Helix M1100 Q4 comes with a 1.5-metre Power Pro True cable, Quick-Lock bracket, and Safety Cable.
Weight (kg): 9
Length (m) : 0.42
Width (m) : 0.24
Height (m): 0.405
Showtec Helix M1100 Q4 Mobile
Product Specifications
- Source ›
- Optical ›
- Wireless Specifications ›
- Control and Programming ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Product Properties ›
- Thermal Specifications ›
- Included Items ›
Source
| Light Source Type | LED |
| Light Source Quantity | 8 |
| Light Source Power | 10 W |
| LED Colour Type | RGBW |
| Refresh Rate | 1200 Hz |
| Luminous Flux (Total) | 8800 lm |
Optical
| Beam Angle (Horizontal) | 10° |
| Beam Angle (Vertical) | 10° |
Wireless Specifications
| Wireless Mode | G3, G4, CRMX |
| Reaction Time | 8 ms |
| Battery Powered | Yes |
| Battery Type | Lithium ion |
| Battery Voltage | 18.5 V |
| Capacity | 13 Ah |
| Runtime @Full | 8 h |
| Runtime Average | 15 h |
| Charging Time | 6 h |
Control and Programming
| Control Mode | Auto, Built-in Program, DMX, Manual, Master Slave |
| DMX Channels | 4, 6, 10 |
| Protocols | DMX, RDM |
| Wireless | LumenRadio |
| Display | OLED |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Tilt Adjustment Up | 180° |

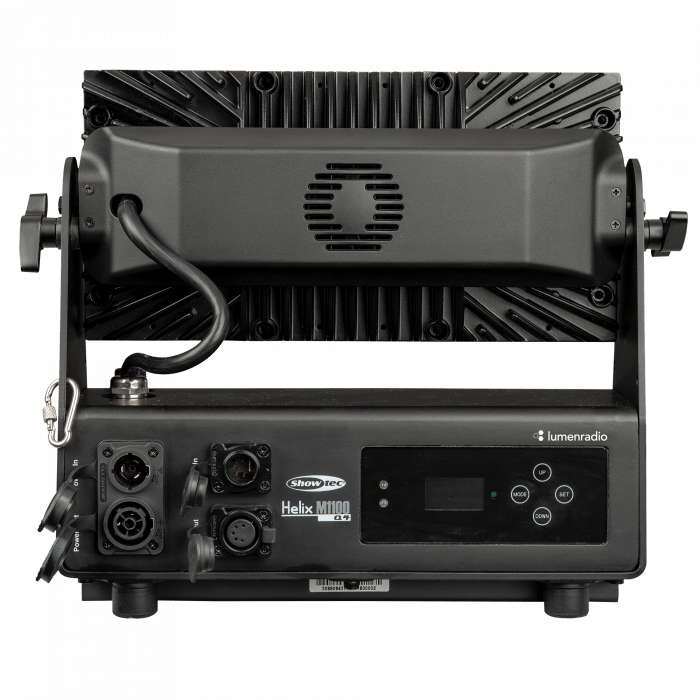

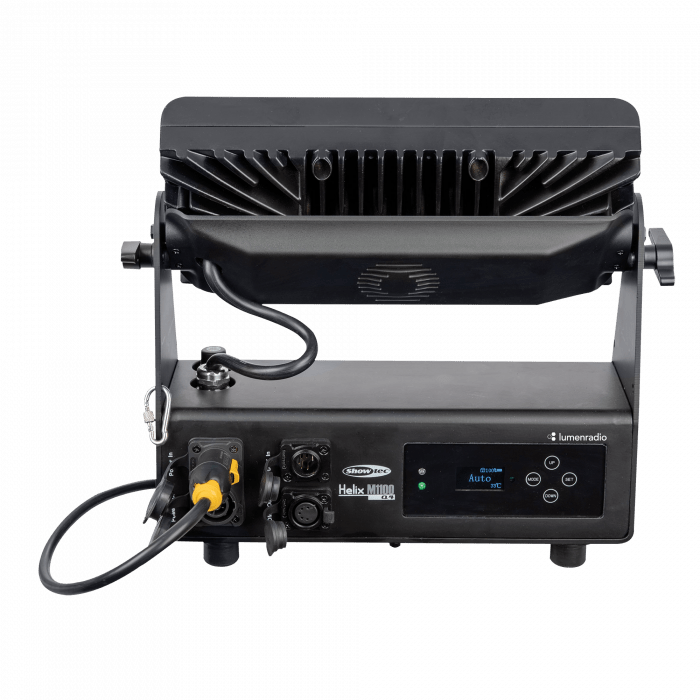

Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 75 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Cable Length | 1.5 m |
Mechanical Specifications
| Width (mm) | 305 mm (12.008″) |
| Height (mm) | 307 mm (12.087″) |
| Depth (mm) | 126 mm (4.961″) |
| Weight | 7.9 kg (17.416 lb) |
| IP Rating | IP65 |
| Housing | Aluminium |
| Colour | Black |
Product Properties
| Cooling | Passive |
| Mounting Options | Bracket, Clamp |
| Safety Attachment | Yes |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Maximum Surface Temperature | 55 °C (131 °F) |
Included Items
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket, Safety Cable |
| Light Source Type | LED |
| Light Source Quantity | 8 |
| Light Source Power | 10 W |
| LED Colour Type | RGBW |
| Refresh Rate | 1200 Hz |
| Luminous Flux (Total) | 8800 lm |
| Beam Angle (Horizontal) | 10° |
| Beam Angle (Vertical) | 10° |
| Wireless Mode | G3, G4, CRMX |
| Reaction Time | 8 ms |
| Battery Powered | Yes |
| Battery Type | Lithium ion |
| Battery Voltage | 18.5 V |
| Capacity | 13 Ah |
| Runtime @Full | 8 h |
| Runtime Average | 15 h |
| Charging Time | 6 h |
| Control Mode | Auto, Built-in Program, DMX, Manual, Master Slave |
| DMX Channels | 4, 6, 10 |
| Protocols | DMX, RDM |
| Wireless | LumenRadio |
| Display | OLED |
| Dim Curve | Linear, Square, I-Square, S-Curve |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Tilt Adjustment Up | 180° |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 75 W |
| Power Connector In | Power Pro True |
| Power Connector Out | Power Pro True |
| DMX Connector | XLR 5P In/Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Cable Length | 1.5 m |
| Width (mm) | 305 mm (12.008″) |
| Height (mm) | 307 mm (12.087″) |
| Depth (mm) | 126 mm (4.961″) |
| Weight | 7.9 kg (17.416 lb) |
| IP Rating | IP65 |
| Housing | Aluminium |
| Colour | Black |
| Cooling | Passive |
| Mounting Options | Bracket, Clamp |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Maximum Surface Temperature | 55 °C (131 °F) |
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket, Safety Cable |
