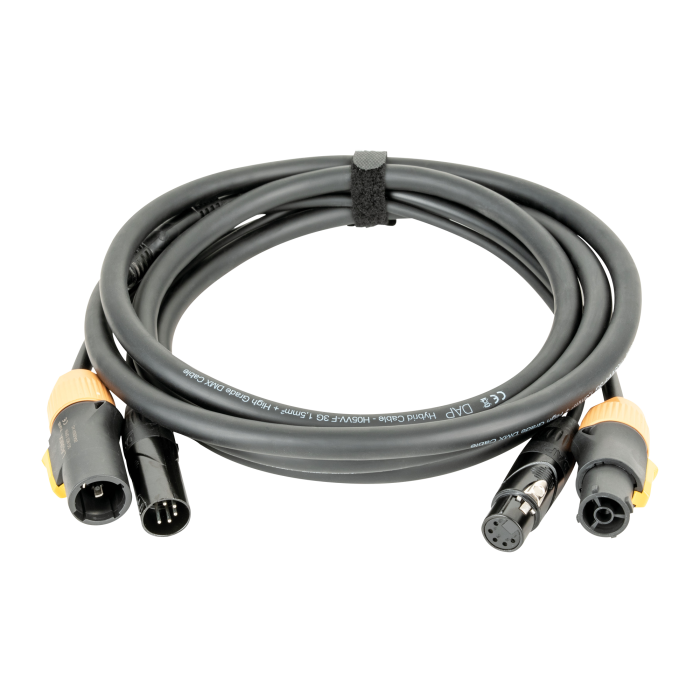

DAP FP23 Hybrid Cable - Power Pro True & 5-pin XLR - DMX / Power
The DAP FP23 is a two-in-one cable for attaching your lighting fixtures to both your DMX console and the main power supply. It has both a Power Pro True (male/female) and a 5-pin XLR cable connector (male/female).
The FP23 is a hybrid cable because it has two different connectors, one for power, and one for DMX communication. The advantage of Power Pro True is that they can be connected and disconnected under load.
This hybrid Power Pro True cable is available in lengths of 150 cm, 3 m, 6 m, 10 m, and 15 m.
Product Specifications
Electrical Specifications and Connections
| Rated Current | 16 A |
| Connector 1 | Power Pro True In (Female) |
| Connector 2 | Power Pro True Out (Male) |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Cable Length | 3 m |
| Pins (power) | 3 |
| Pins (data) | 5 |
| Outer Cable Diameter | 12 mm (0.472″) |
