Showtec Booster Pro

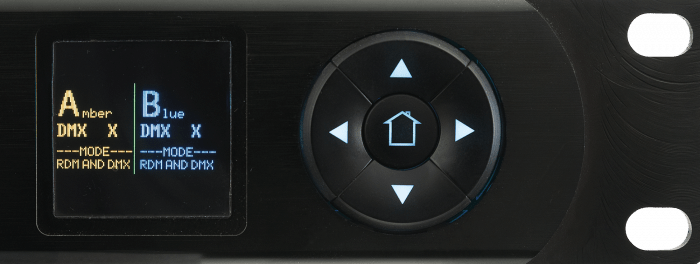

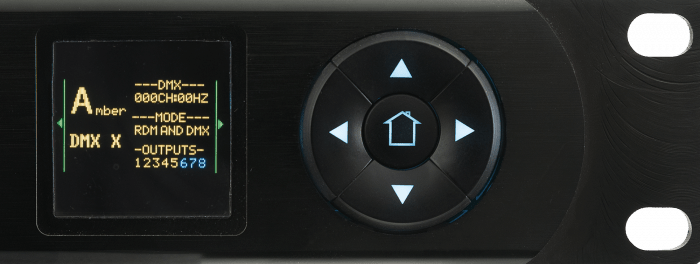

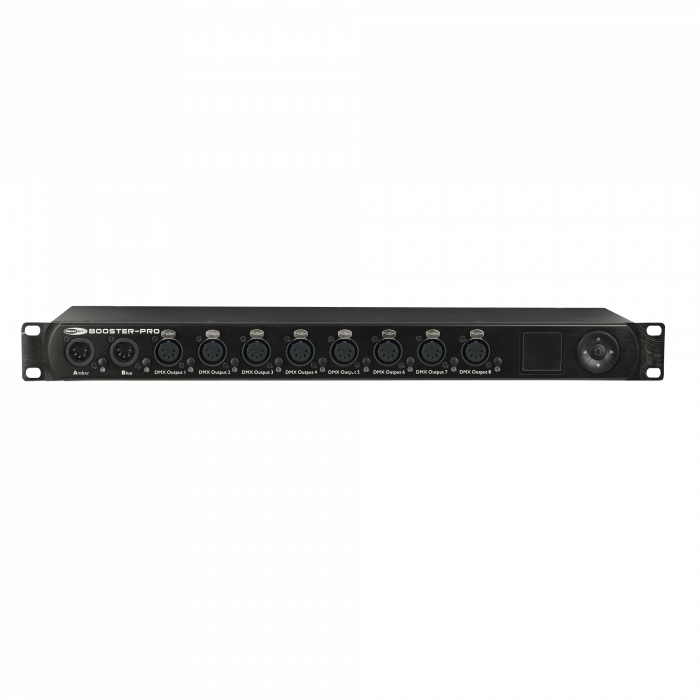

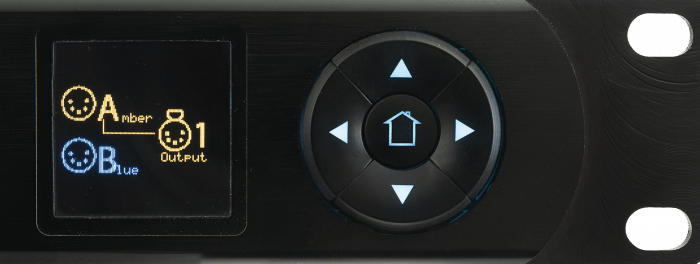

The Booster Pro is the ultimate DMX tool which should be in the equipment rack of each rental company or installation. The Booster Pro is an optical isolated DMX Splitter and Booster. The Booster Pro has 2 inputs which can be patched to 8 selectable output (for each output you can patch input A or B). The Booster Pro is fully RDM compatible and offers real-time DMX monitoring. For specialist applications the DMX timing can be adjusted. Furthermore each output of the Booster Pro has a monitoring function which controls the status of the connected cables real-time. In case of any failure an acoustical signal will warn the user. The intuitive OLED display lets you set all the different function fast and easily.

Weight (kg): 2.433
Length (m) : 0.5
Width (m) : 0.2
Height (m): 0.065

Showtec Booster Pro

Free

Product Specifications

  • Electrical Specifications and Connections
  • Mechanical Specifications
  • Product Properties
  • Thermal Specifications
  • Control and Programming
  • Included Items

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz
Power Consumption 5 W
Power Connector In Power Pro Blue
Power Connector XLR 5P In/Out
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
