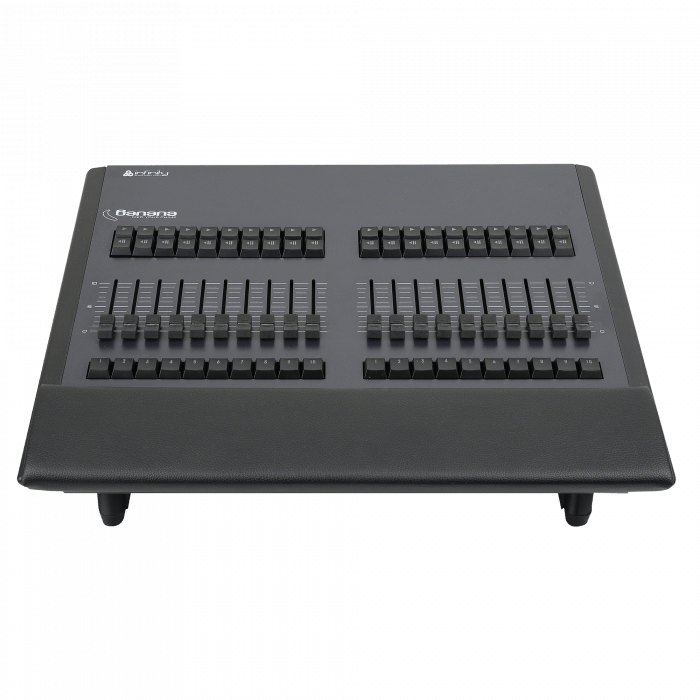

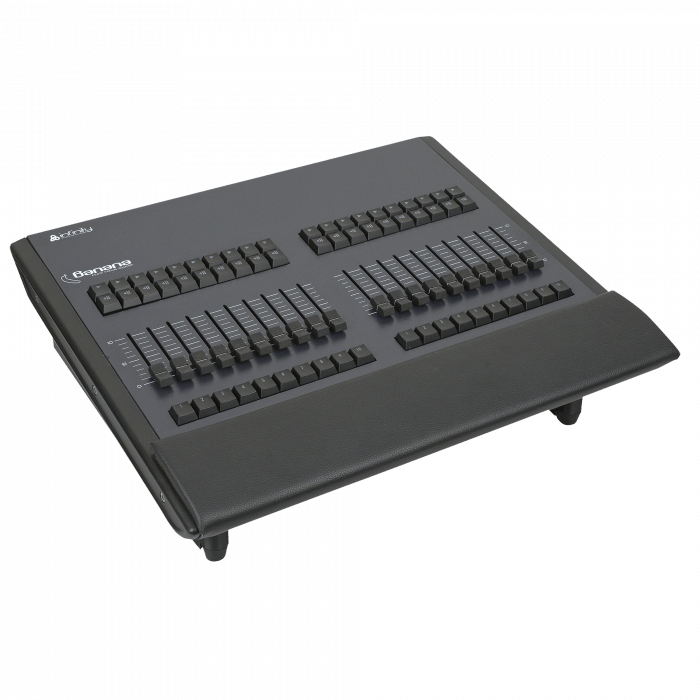

Infinity Banana Wing

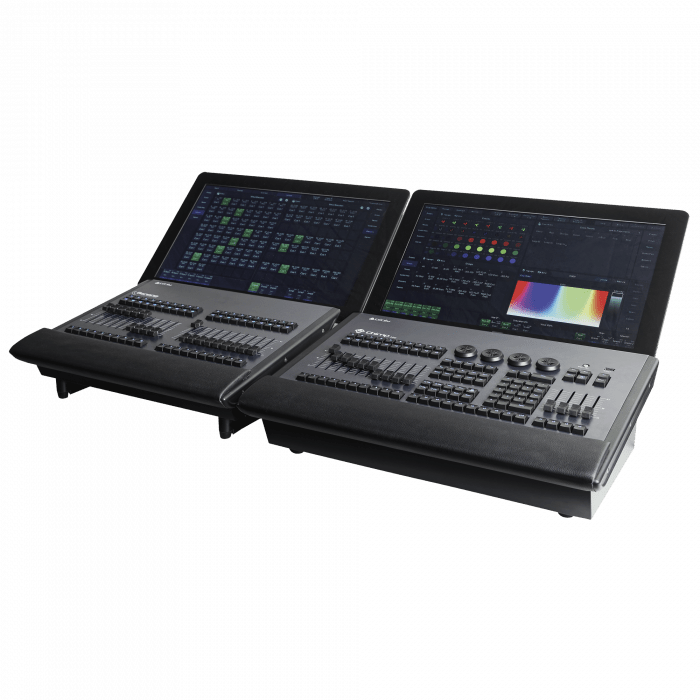

The Banana Wing is the ideal tool for extending the possibilities and flexibility of the Infinity Chimp consoles. The Banana Wing offers operators 20 extra playback faders and will release 2 extra universes on top of your Chimp’s capabilities. The console will recognize the presence of the Wing and reconfigure the second external monitor to show additional playbacks for the operator. The Banana Wing will also enable 2 universes of DMX and Art-Net when connected to your Chimp OnPC software
Weight (kg) : 10.06
Length (m) : 0.565
Width (m) : 0.495
Height (m) : 0.245
Infinity Banana Wing
Free
Product Specifications
- Control and Programming ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Product Properties ›
- Thermal Specifications ›
- Included Items ›
Control and Programming
| Control Mode | DMX, PC Software |
| DMX Channels | 1024 |
| Buttons | 60 |
| Faders | 20 |
| Playback Faders | 20 |

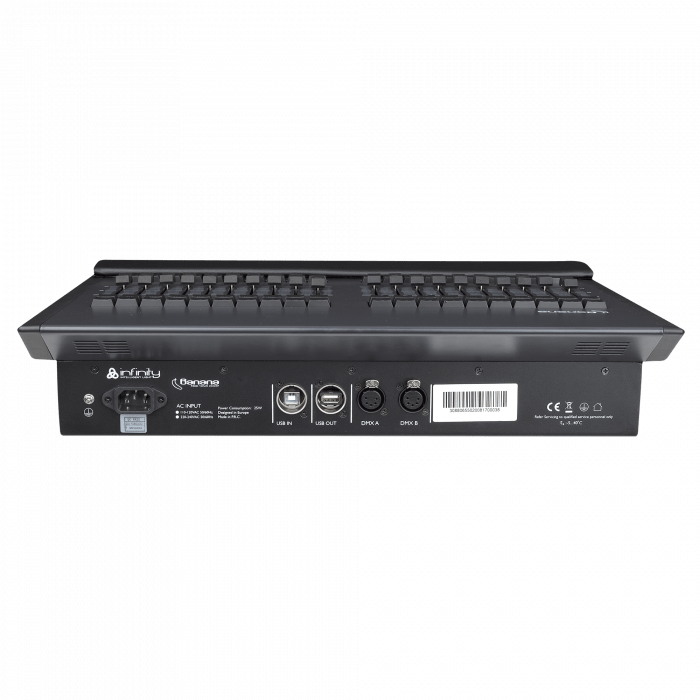

Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 25 W |
| Power Connector In | IEC |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Data Connector In | USB |
| Data Connector Out | USB |
Mechanical Specifications
| Length (mm) | 487 mm (19.173″) |
| Width (mm) | 400 mm (15.748″) |
| Height (mm) | 115 mm (4.528″) |
| Weight | 7.5 kg (16.535 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal, Plastic |
| Colour | Black |
Product Properties
| Cooling | Passive |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Ambient Temperature | -5 °C (23 °F) |
Included Items
| Included Cables | IEC cable |
| Control Mode | DMX, PC Software |
| DMX Channels | 1024 |
| Buttons | 60 |
| Faders | 20 |
| Playback Faders | 20 |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 25 W |
| Power Connector In | IEC |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Data Connector In | USB |
| Data Connector Out | USB |
| Length (mm) | 487 mm (19.173″) |
| Width (mm) | 400 mm (15.748″) |
| Height (mm) | 115 mm (4.528″) |
| Weight | 7.5 kg (16.535 lb) |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal, Plastic |
| Colour | Black |
| Cooling | Passive |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Ambient Temperature | -5 °C (23 °F) |
| Included Cables | IEC cable |
