Product Specifications
Electrical Specifications
| Input Voltage (US Model) | AC 100–120V, 50/60 Hz, 1.5A |
| Input Voltage (EU Model) | AC 220–240V, 50/60 Hz, 1.0A |
| Rated Power | 127W |
Explore products built for diverse applications.
Explore products from trusted brands.

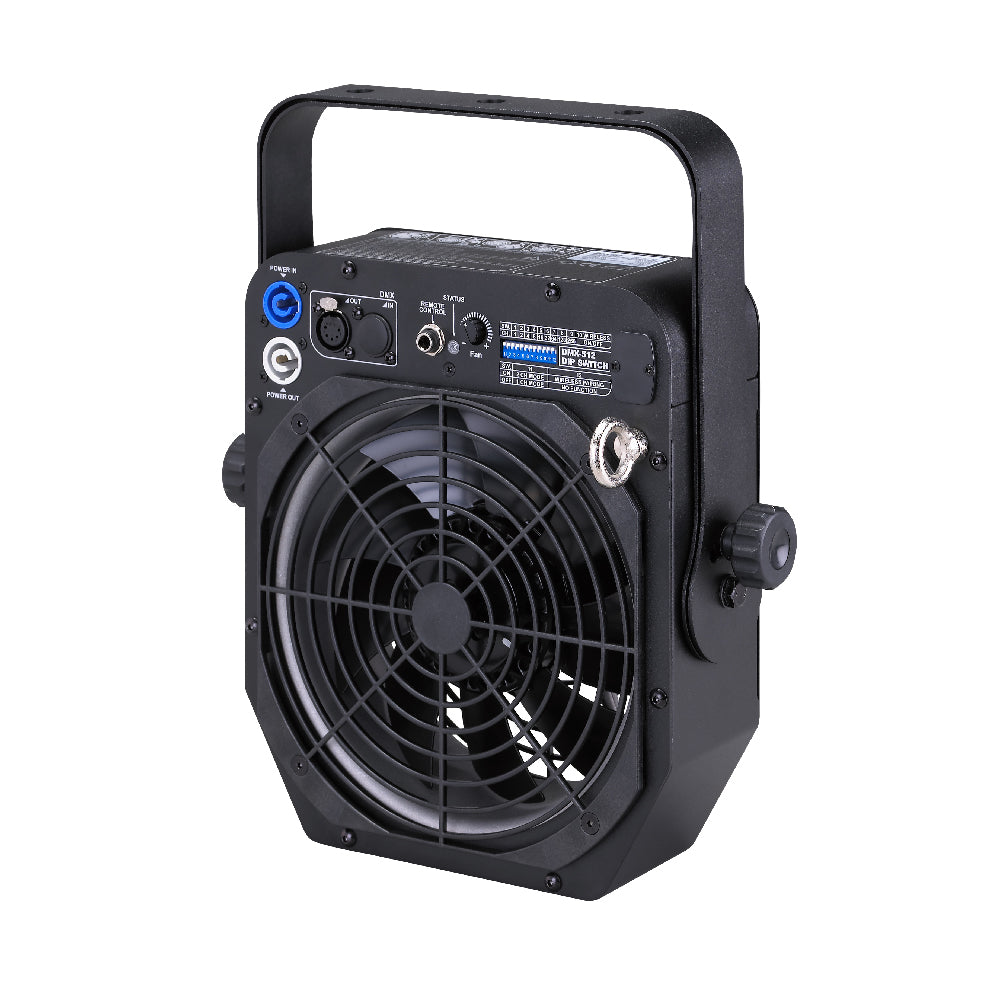

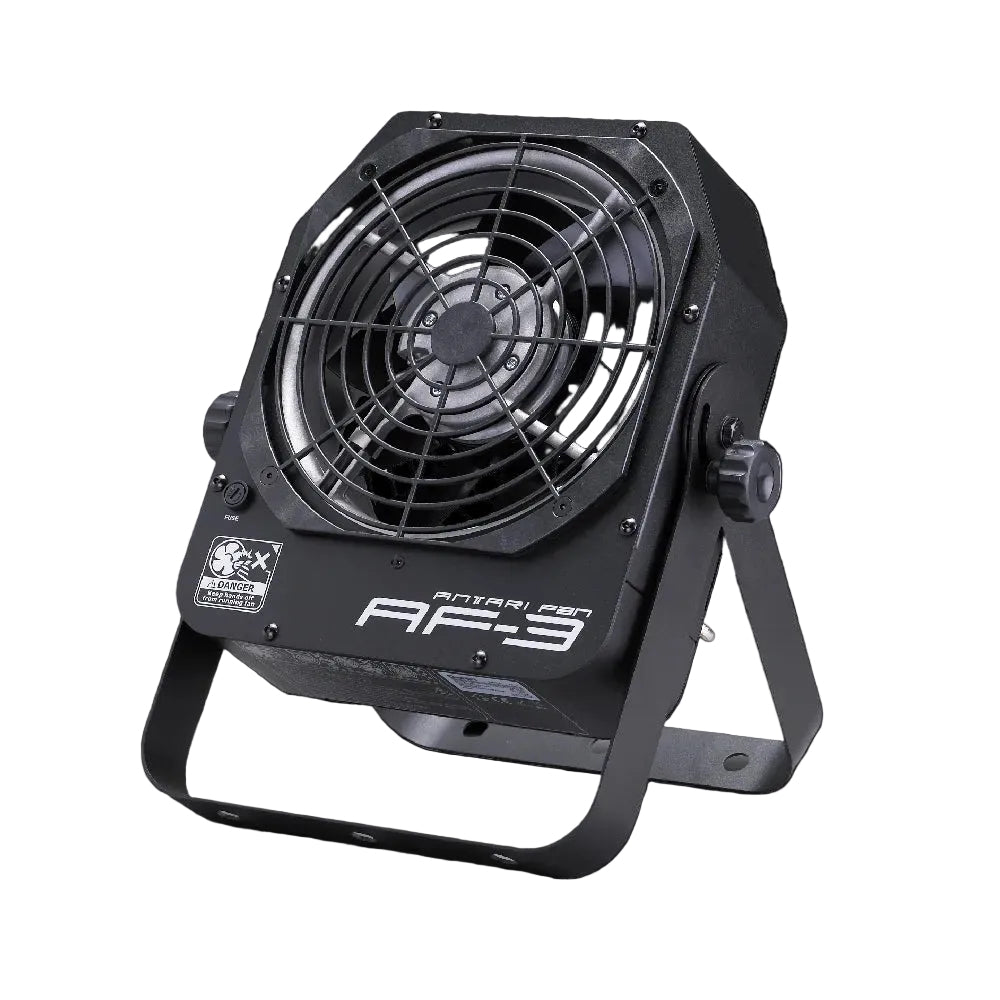

The AF-3 is a small but powerful fan that works with fog, haze, snow, and bubble machines. It pushes strong, controlled airflow to make your special effects look amazing. Don't let its compact size fool you—it packs serious performance for any stage or event setup.
| Input Voltage (US Model) | AC 100–120V, 50/60 Hz, 1.5A |
| Input Voltage (EU Model) | AC 220–240V, 50/60 Hz, 1.0A |
| Rated Power | 127W |
| Dimension (mm) | L124 W320 H371 mm |
| Dimension (inch) | L4.88 W12.59 H14.61 inch |
| Weight (kg) | 6.0 kg |
| Weight (lbs) | 13.23 lbs |
| Ambient Temperature Range | 0°C–40°C (32°F–104°F) |
| Fan Speed (50Hz) | 750–2550 rpm |
| Fan Speed (60Hz) | 750–2800 rpm |
| Noise Level | 72.6 dB (Max. Output) |
| Control Methods | Manual, DMX 512, Wireless (Optional), Cable Remote (Optional) |
| DMX Channels | 1 Channel |
| Power Interface | Neutrik powerCON |
| DMX Interface | XLR 5-Pin |
| Included Accessories | N/A |
| Optional Accessories | WTR-10 Wireless Module, Z-3 Cable Remote |
| Input Voltage (US Model) | AC 100–120V, 50/60 Hz, 1.5A |
| Input Voltage (EU Model) | AC 220–240V, 50/60 Hz, 1.0A |
| Rated Power | 127W |
| Dimension (mm) | L124 W320 H371 mm |
| Dimension (inch) | L4.88 W12.59 H14.61 inch |
| Weight (kg) | 6.0 kg |
| Weight (lbs) | 13.23 lbs |
| Ambient Temperature Range | 0°C–40°C (32°F–104°F) |
| Fan Speed (50Hz) | 750–2550 rpm |
| Fan Speed (60Hz) | 750–2800 rpm |
| Noise Level | 72.6 dB (Max. Output) |
| Control Methods | Manual, DMX 512, Wireless (Optional), Cable Remote (Optional) |
| DMX Channels | 1 Channel |
| Power Interface | Neutrik powerCON |
| DMX Interface | XLR 5-Pin |
| Included Accessories | N/A |
| Optional Accessories | WTR-10 Wireless Module, Z-3 Cable Remote |
