Infinity Raccoon W40/4

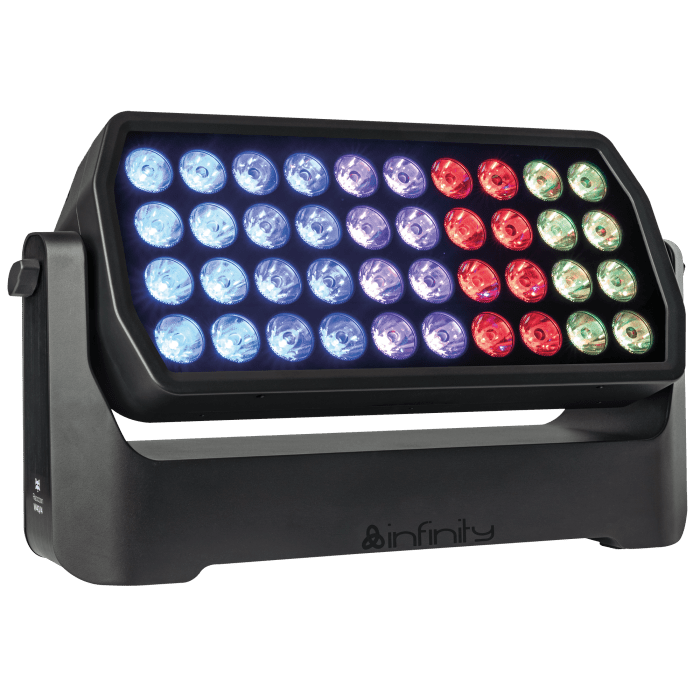

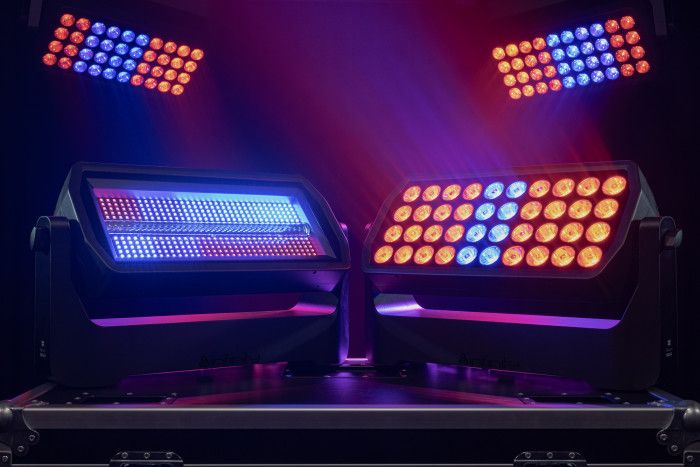

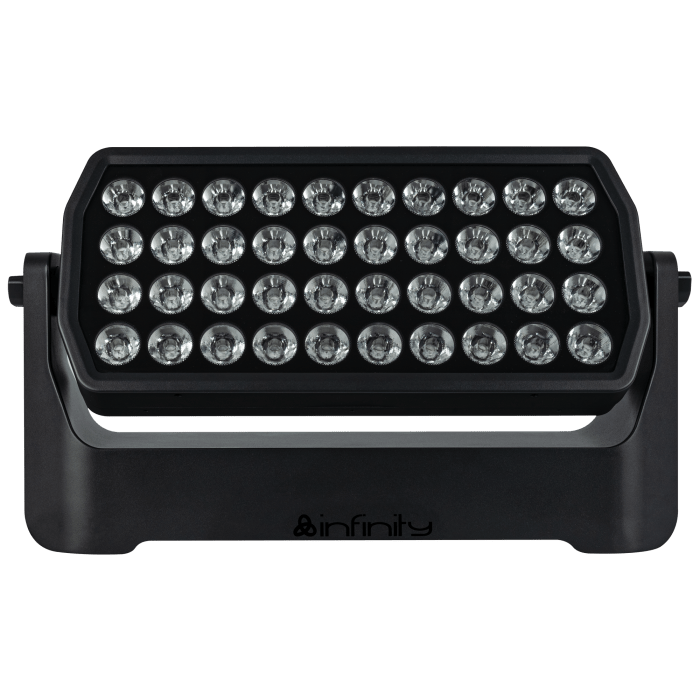

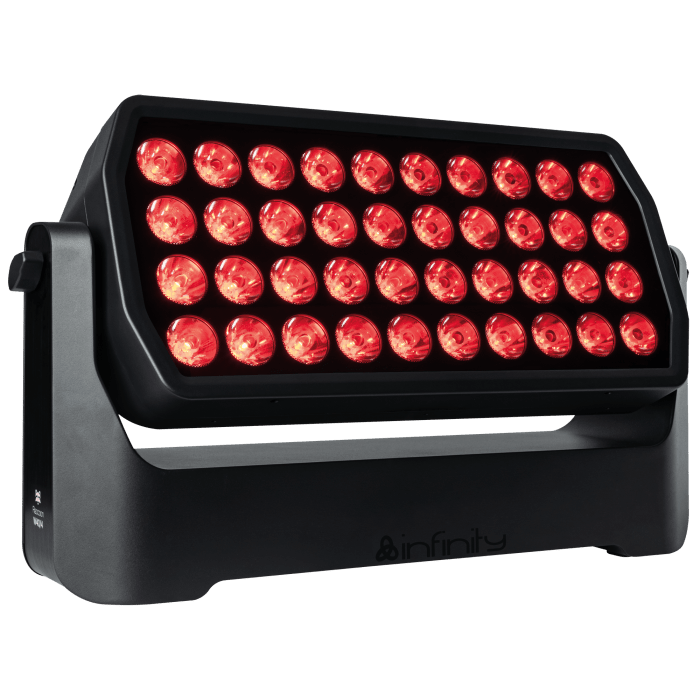

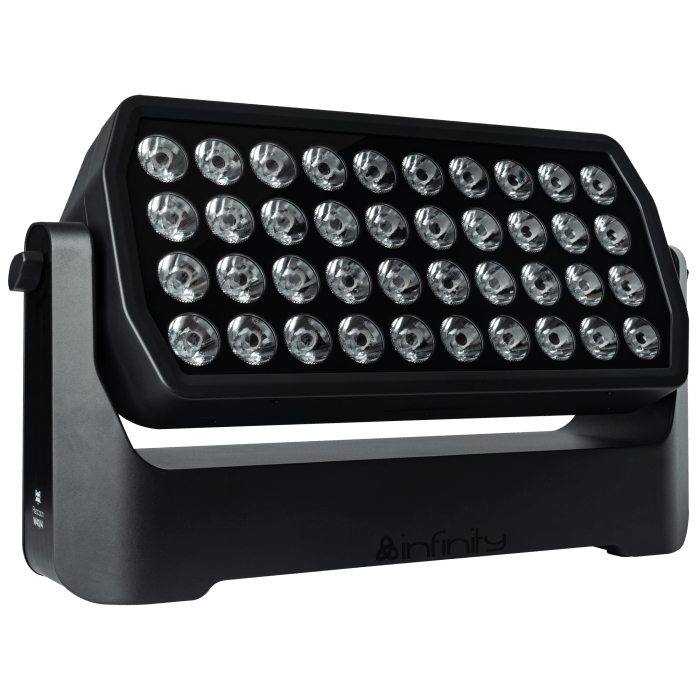

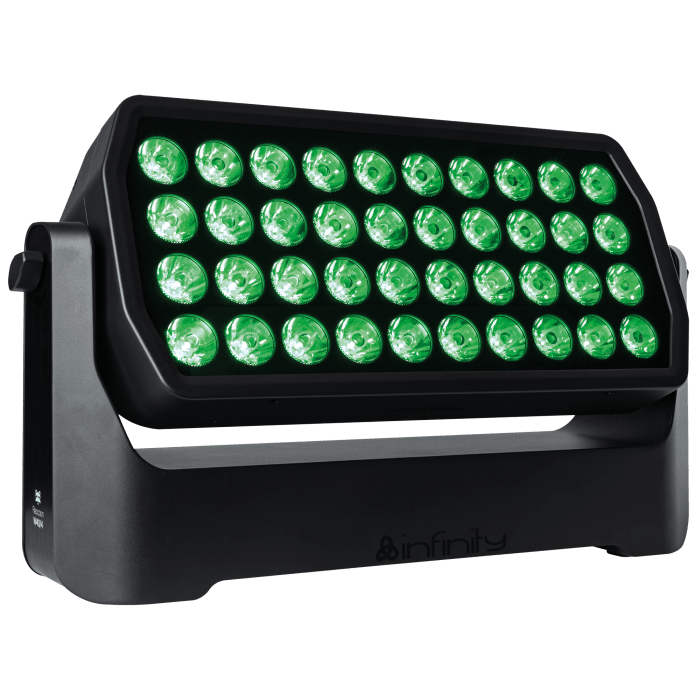

The Infinity Raccoon W40/4 is a powerful wash light with 40 RGBM LEDs of 15 W each, producing up to over 41,000 lumens. It has 5 individually controlled sections, has a 10-degree beam angle and uses a high 12,000 Hz refresh rate for a smooth and stable light output. Four internal dimming curves are available. It uses the same housing as the Raccoon S420/4 and is IP65-rated to withstand the elements during your show.

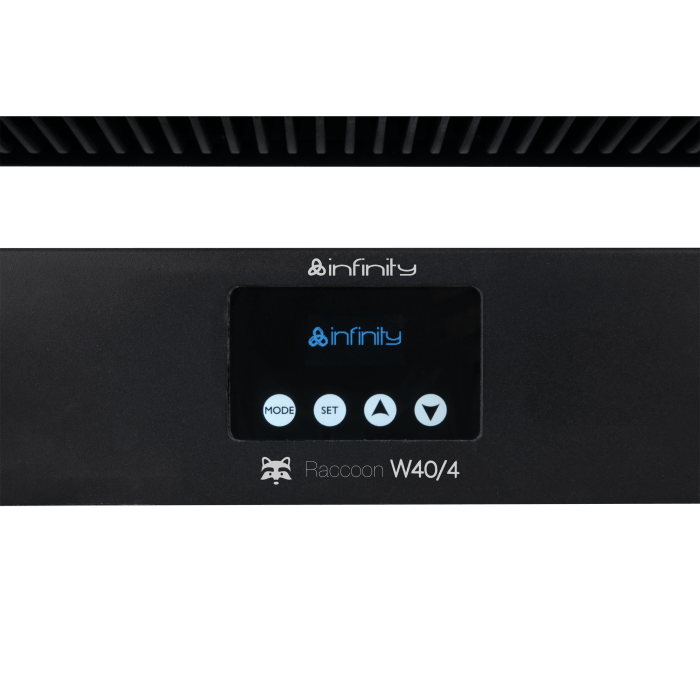

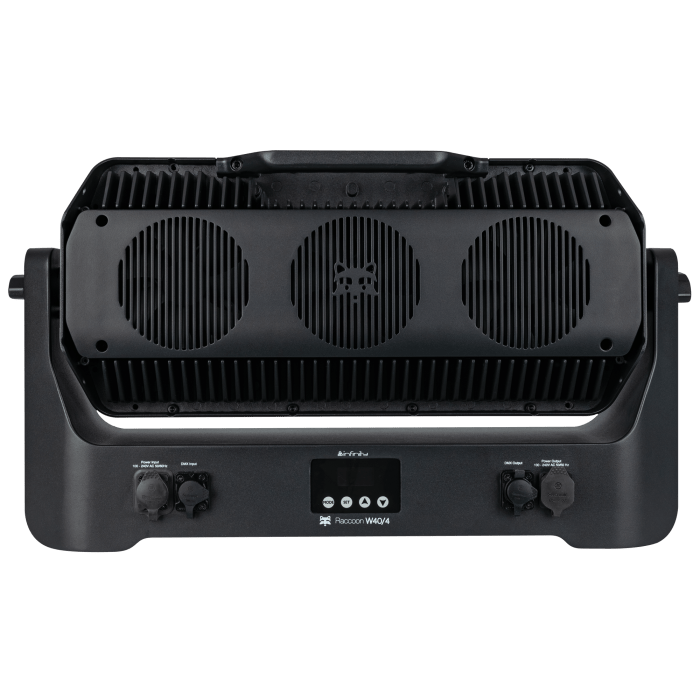

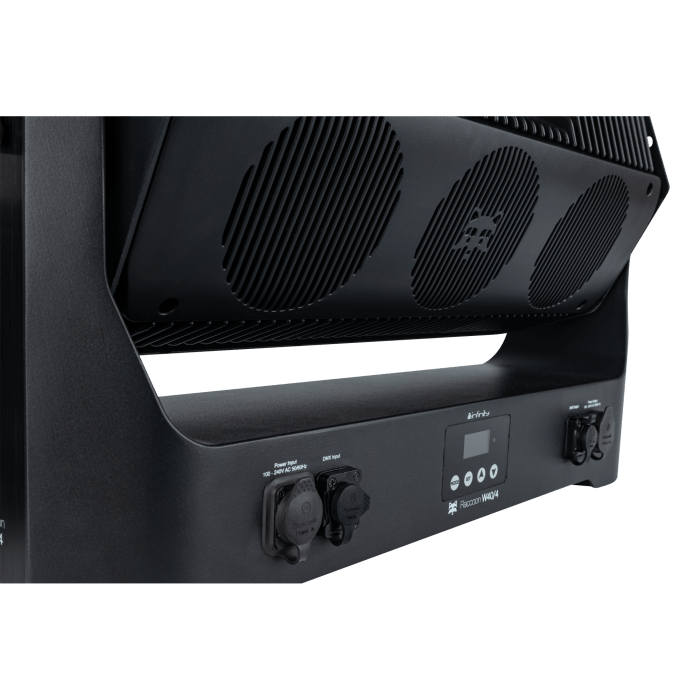

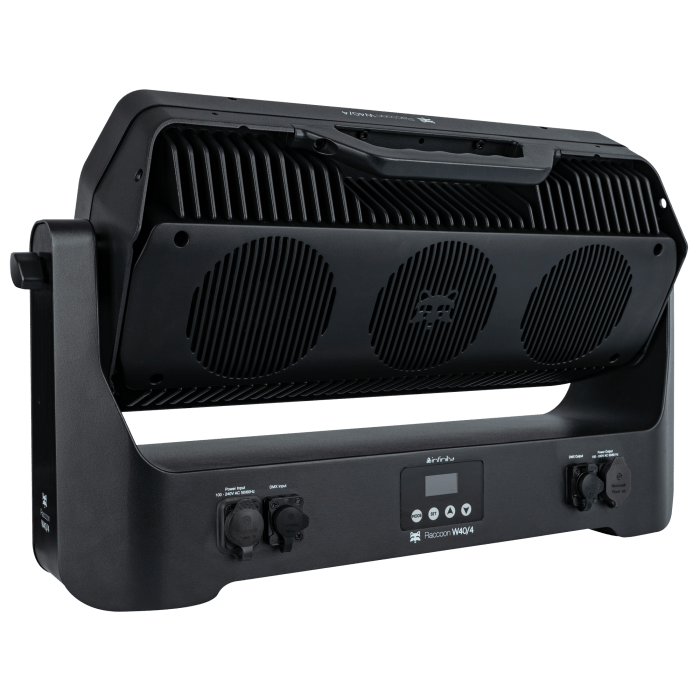

The fixture can be controlled wirelessly via DMX (LumenRadio G3, G4, CRMX), via wired DMX (5-pin XLR) or via manual controls and the on-board OLED display. It supports RDM and provides bi-directional communication with the lighting console.

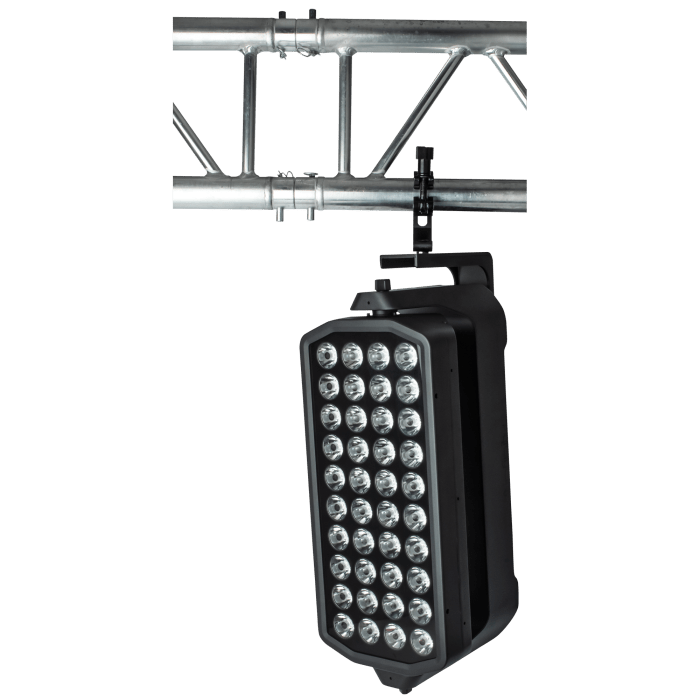

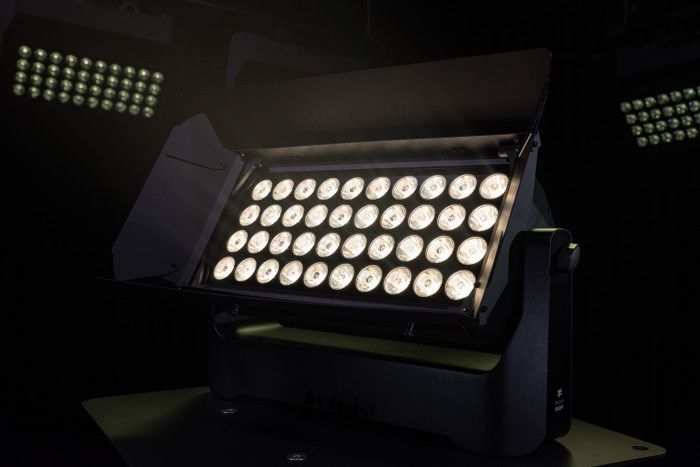

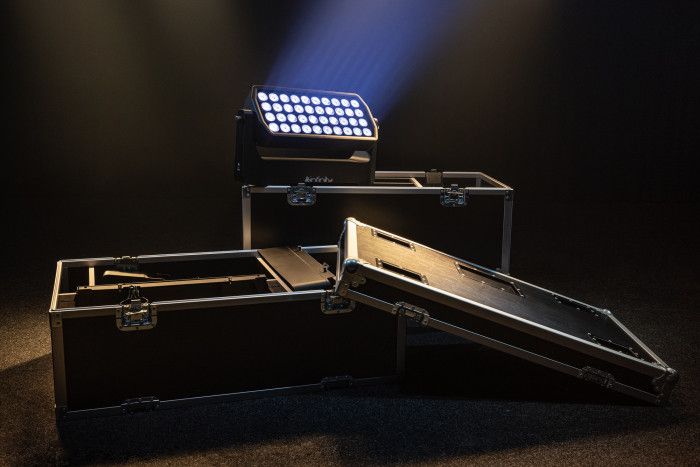

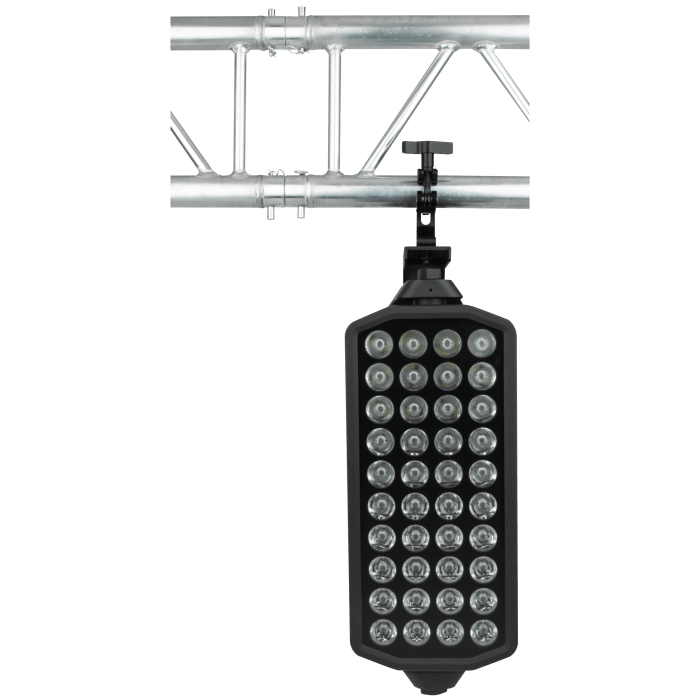

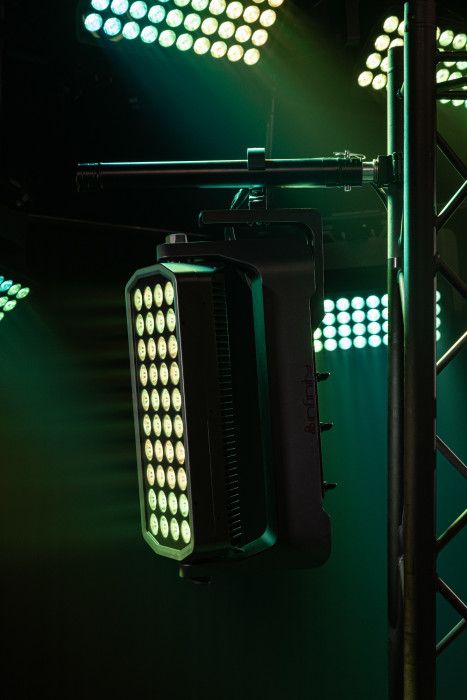

With the optional L-bracket, the Raccoon W40/4 can be mounted vertically or at an angle while still being balanced (no torque on the mount). Other optional accessories include a top hat, a barndoor, a range of diffusers with 20°, 40°, 90° and 15 x 60° beam angles and a sturdy flight case.

Weight (kg): 21
Length (m) : 0.68
Width (m) : 0.49
Height (m): 0.255

Infinity Raccoon W40/4

Free

Product Specifications

  • Source
  • Optical
  • Wireless Specifications
  • Control and Programming
  • Electrical Specifications and Connections
  • Mechanical Specifications
  • Product Properties
  • Thermal Specifications
  • Included Items

Source

Light Source Type LED
Light Source Quantity 40
Light Source Power 15 W
LED Colour Type R, G, B, M
Life Expectancy 50000 h
Refresh Rate 12000 Hz
Luminous Flux (Total) 41422 lm
Luminous Flux (Red) 9167 lm
Luminous Flux (Green) 11678 lm
Luminous Flux (Blue) 3169 lm
Luminous Flux (Mint) 20911 lm
CRI 87
