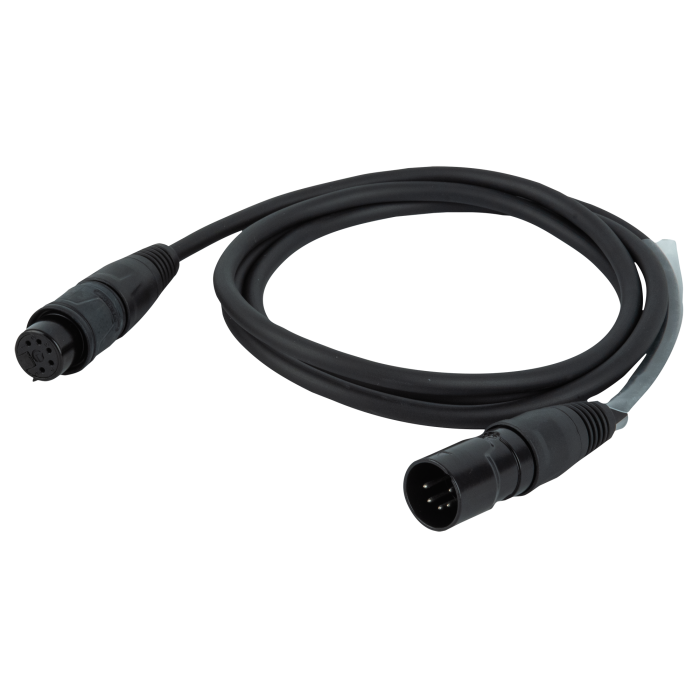

0.75m IP65 DMX Cable - DAP FLR7575 - XLR/M 5P to XLR/F 5P Rean RCX5 connectors
The DAP FLR75 IP65 DMX/AES-EBU cable offers professional grade signal transmission, constructed with Rean RCX5 connectors. The cable is based on the DAP DIG-110 but uses a polyurethane jacket to comply with IP65. It uses a braided shield for interference-free signal transmission. The RCX5 connectors ensure low-impedance, high-quality connections for your signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.
Product Specifications
Electrical Specifications
| Connector 1 | XLR 5P Male |
| Connector 2 | XLR 5P Female |
| Brand Connector 1 | REAN |
| Impedance | 110 Ω |
| Pins | 5 |
| Conductor Resistance | 110 Ω/km (177.02 Ω/mile) |
| Conductor Capacitance | 35 pF/m (10.67 pF/ft) |
| Capacity Inner Conduct. Shield/Inner Conduct. | 52 pF/m (15.85 pF/ft) |
| Shield Resistance | 12.5 Ω/km (20.12 Ω/mile) |
