Showtec IP Pixelstrip 80
The Showtec IP Pixelstrip 80 is a high-brightness LED bar with pixel control. Each of the 80 RGB LEDs can be controlled individually by the dedicated Showtec IP Pixel Controller. It has an IP65-rated enclosure with fanless convection cooling, making it suitable for indoor as well as (temporary) outdoor stage applications.

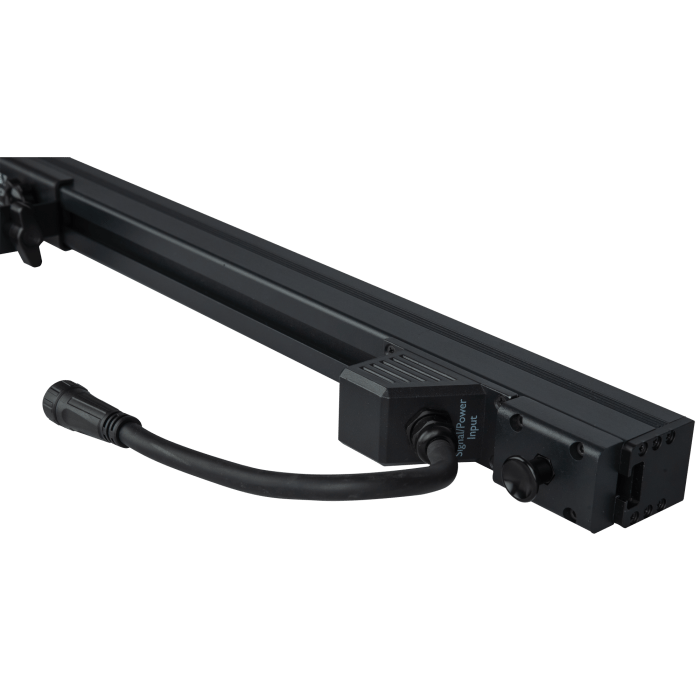

The short and fixed combined data/power input cable allows the IP Pixelstrip 80 to be daisy-chained and mixed with the IP Pixelstrip 40 up to a total length of 4 metres per controller output. Dedicated cables run from the controller to the IP Pixelstrip for power and data signals (sold separately). A straight alignment plate is included and locks into place without tools. Optional alignment plates allow for more complex configurations, even 3D setups. A standard smoked black flat cover is included and can be easily replaced by an optional white flat cover, white dome-shaped cover or white rectangular cover.
Please note that stand-alone or direct DMX operation is not possible; the Showtec IP Pixel Controller is required to drive this LED pixel bar.
Weight (kg): 2.8
Length (m) : 1.06
Width (m) : 0.1
Height (m): 0.135
Showtec IP Pixelstrip 80
Product Specifications
- Source ›
- Optical ›
- Dynamic Effects ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Product Properties ›
- Thermal Specifications ›
- Included Items ›
Source
| Light Source Type | LED |
| Light Source Quantity | 80 |
| Refresh Rate | 16000 Hz |
| Brightness | 9200 nits |
Optical
| Pixel Pitch | 12.5 mm (0.492″) |
Dynamic Effects
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
Electrical Specifications and Connections
| Power Supply | 48 V DC |
| Power Consumption | 31 W |
| Power Connector In | Dedicated IP65 Powerconnection |
| Power Connector Out | Dedicated IP65 Powerconnection |
Mechanical Specifications
| Height (mm) | 95 mm (3.74″) |
| Width (mm) | 35 mm (1.378″) |
| Length (mm) | 1004 mm (39.528″) |
| Weight | 2.4 kg (5.291 lb) |
| IP Rating | IP65 |
| Housing | Aluminium |
| Colour | Black |
Product Properties
| Cooling | Passive |
| Mounting Options | Bracket |
| Safety Attachment | Yes |
Thermal Specifications
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Ambient Temperature | -5 °C (23 °F) |
Included Items
| Included Cables | Fixed Cable |
| Included Accessories | Cover |
| Included Rigging | Straight Alignment Plate |
| Light Source Type | LED |
| Light Source Quantity | 80 |
| Refresh Rate | 16000 Hz |
| Brightness | 9200 nits |
| Pixel Pitch | 12.5 mm (0.492″) |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Power Supply | 48 V DC |
| Power Consumption | 31 W |
| Power Connector In | Dedicated IP65 Powerconnection |
| Power Connector Out | Dedicated IP65 Powerconnection |
| Height (mm) | 95 mm (3.74″) |
| Width (mm) | 35 mm (1.378″) |
| Length (mm) | 1004 mm (39.528″) |
| Weight | 2.4 kg (5.291 lb) |
| IP Rating | IP65 |
| Housing | Aluminium |
| Colour | Black |
| Cooling | Passive |
| Mounting Options | Bracket |
| Safety Attachment | Yes |
| Maximum Ambient Temperature | 40 °C (104 °F) |
| Minimum Ambient Temperature | -5 °C (23 °F) |
| Included Cables | Fixed Cable |
| Included Accessories | Cover |
| Included Rigging | Straight Alignment Plate |
