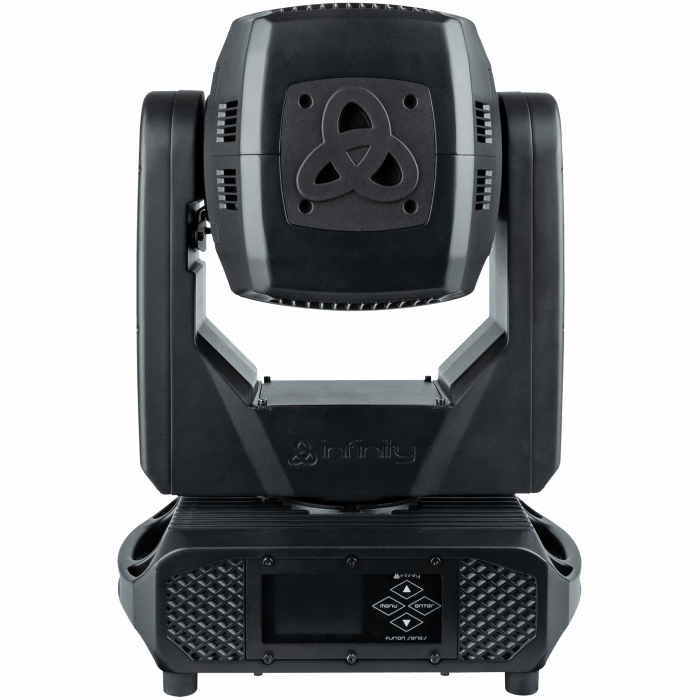

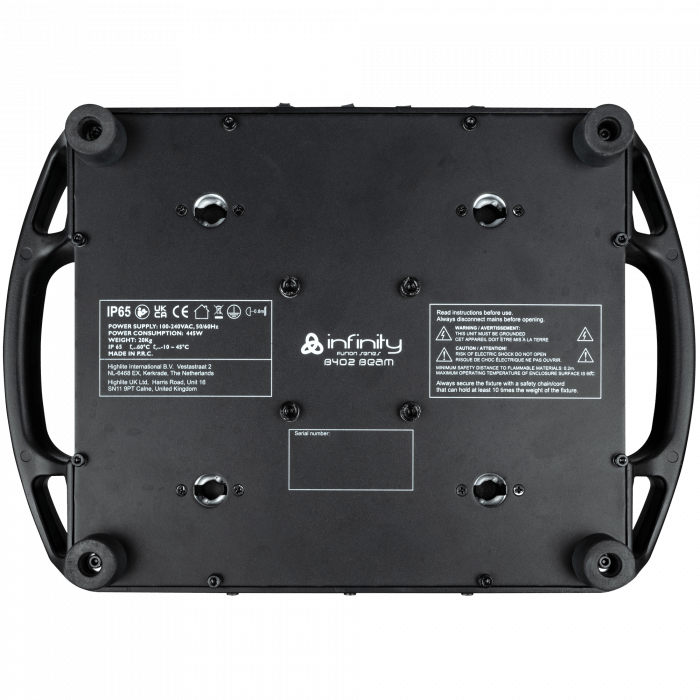

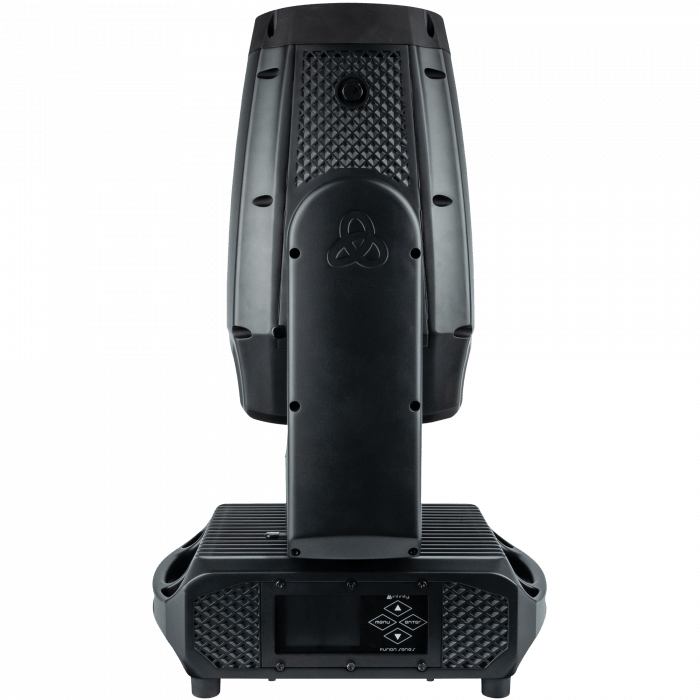

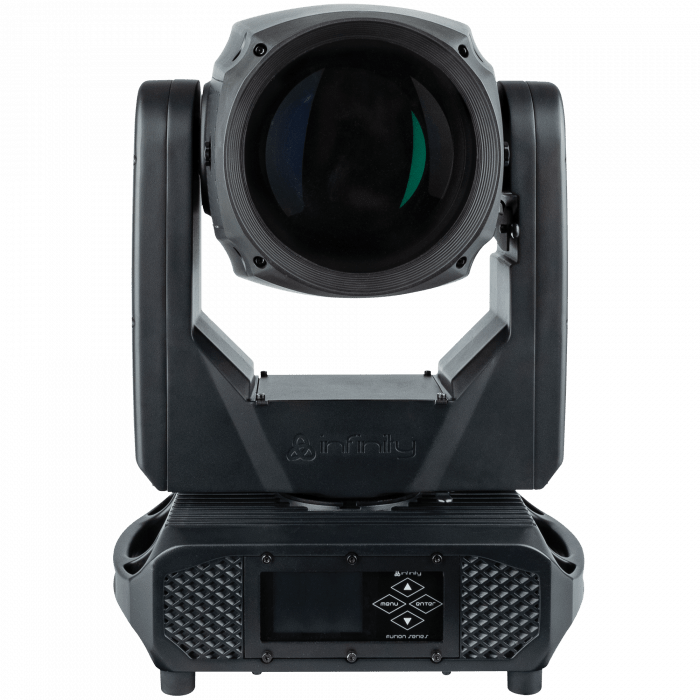

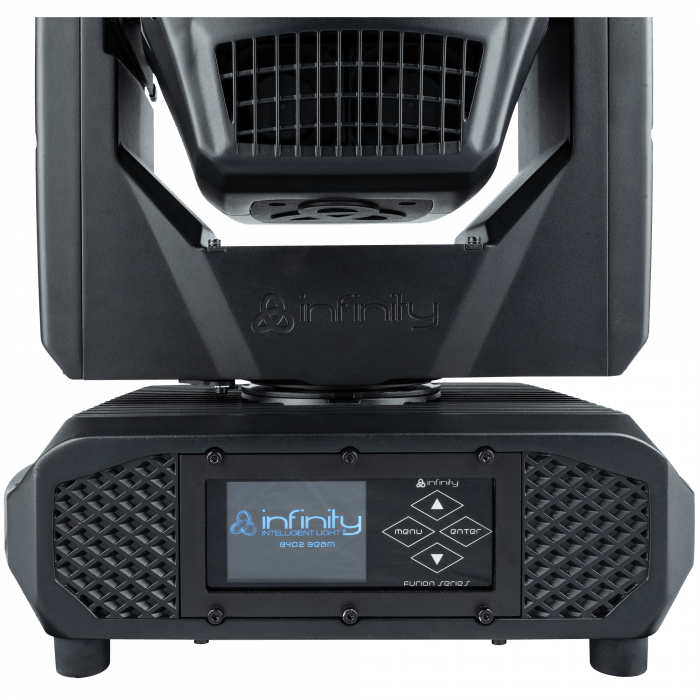

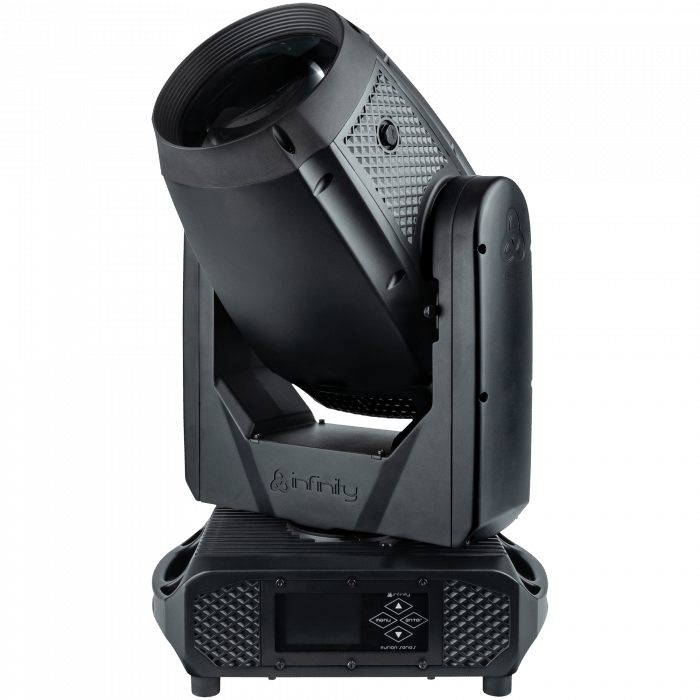

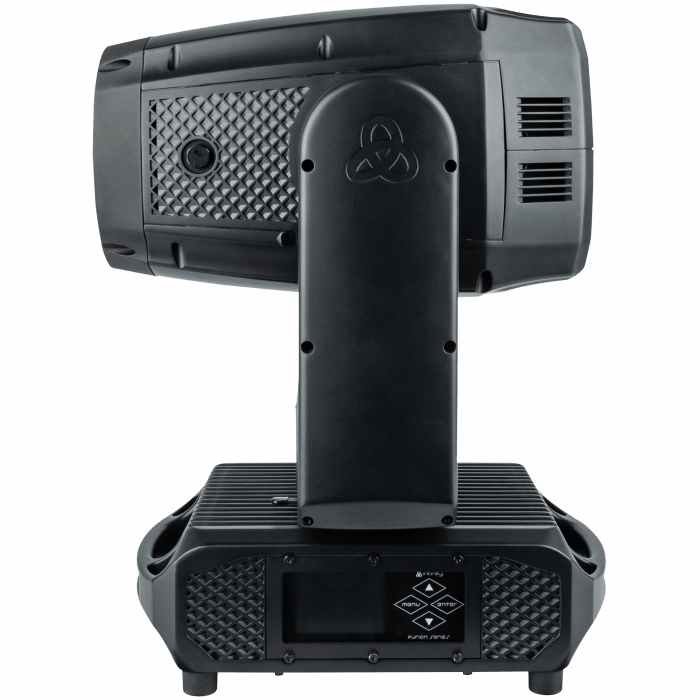

Infinity Furion B402 Beam
The Furion B402 Beam is a lightweight, IP65-rated moving head that packs a fiery punch. Thanks to its 310 W discharge lamp, precise 0.6° beam angle and large 160 mm front lens, it delivers focused effects without light spillage. This makes it ideal for larger concerts, theatrical productions, live events and more.
This powerful fixture boasts a colour wheel offering 14 majestic colours, plus an open position, and a static gobo wheel with 17 gobos. These features expand the creative possibilities by allowing users to add enchanting gobo effects to colourful, narrow beams.
Enhancing its dynamic capabilities are rotating 5-facet linear and 8-facet circular prisms, which can be overlaid for soaring visual effects. Additionally, a frost filter softens the beam's edges, adding versatility for different lighting atmospheres.
Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.
Guarding its state-of-the art components is a sturdy yet lightweight housing, crafted from magnesium and aluminium, that ensures durability and minimises maintenance. Its IP65 rating guarantees dust-tight and water-resistant protection for both indoor and outdoor use.
With fast, seamless movements, a bright, tight beam and a hoard of built-in effects, the Furion B402 Beam is an outstanding light fixture that delivers dynamic beam effects wherever they're needed.
Weight (kg): 24
Length (m) : 0.67
Width (m) : 0.445
Height (m): 0.34
Infinity Furion B402 Beam
Product Specifications
- Software Specifications ›
- Wireless Specifications ›
- Control and Programming ›
- Electrical Specifications and Connections ›
- Mechanical Specifications ›
- Product Properties ›
- Thermal Specifications ›
- Included Items ›
Software Specifications
| Supported Operating Systems | Linux |
Wireless Specifications
| Wireless Mode | G4s |
| Gain (dB) | 5 dB |
| Gain (mW) | 10 mW |
| Reaction Time | 8 ms |
| Antenna Type | Omni |
| Antenna Radiation | 360 x 90° |
Control and Programming
| Control Mode | DMX, MIDI |
| DMX Channels | 2048 |
| sACN | Yes |
| Art-Net | Yes |
| Universes | 2 |
Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 2 W |
| Power Connector In | USB |
| DMX Connector Out | XLR 5P |
Mechanical Specifications
| Height (mm) | 820 mm (32.283″) |
| Width (mm) | 320 mm (12.598″) |
| Depth (mm) | 170 mm (6.693″) |
| Weight | 20 kg (44.092 lb) |
| IP Rating | IP65 |
| Housing | Magnesium die-cast |
| Colour | Black |
Product Properties
| Cooling | Forced Convection |
| Desk Light | 3P XLR female |
Thermal Specifications
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -10 °C (14 °F) |
Included Items
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket |
| Supported Operating Systems | Linux |
| Wireless Mode | G4s |
| Gain (dB) | 5 dB |
| Gain (mW) | 10 mW |
| Reaction Time | 8 ms |
| Antenna Type | Omni |
| Antenna Radiation | 360 x 90° |
| Control Mode | DMX, MIDI |
| DMX Channels | 2048 |
| sACN | Yes |
| Art-Net | Yes |
| Universes | 2 |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 2 W |
| Power Connector In | USB |
| DMX Connector Out | XLR 5P |
| Height (mm) | 820 mm (32.283″) |
| Width (mm) | 320 mm (12.598″) |
| Depth (mm) | 170 mm (6.693″) |
| Weight | 20 kg (44.092 lb) |
| IP Rating | IP65 |
| Housing | Magnesium die-cast |
| Colour | Black |
| Cooling | Forced Convection |
| Desk Light | 3P XLR female |
| Maximum Ambient Temperature | 45 °C (113 °F) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Included Cables | Power Pro True Cable |
| Included Rigging | Quick-Lock Bracket |
